ZyXEL Communications N4100 User Manual

Chapter 3 Tutorials
N4100 User’s Guide
37
4 Select 802.11n + 802.11g + 802.11b in the 802.11 Mode field.
5 Set security mode to WPA, select the Use WPA/WPA2 with Pre-shared Key
option and enter “DoNotStealMyWirelessNetwork” in the Pre-shared Key field.
Click Apply.

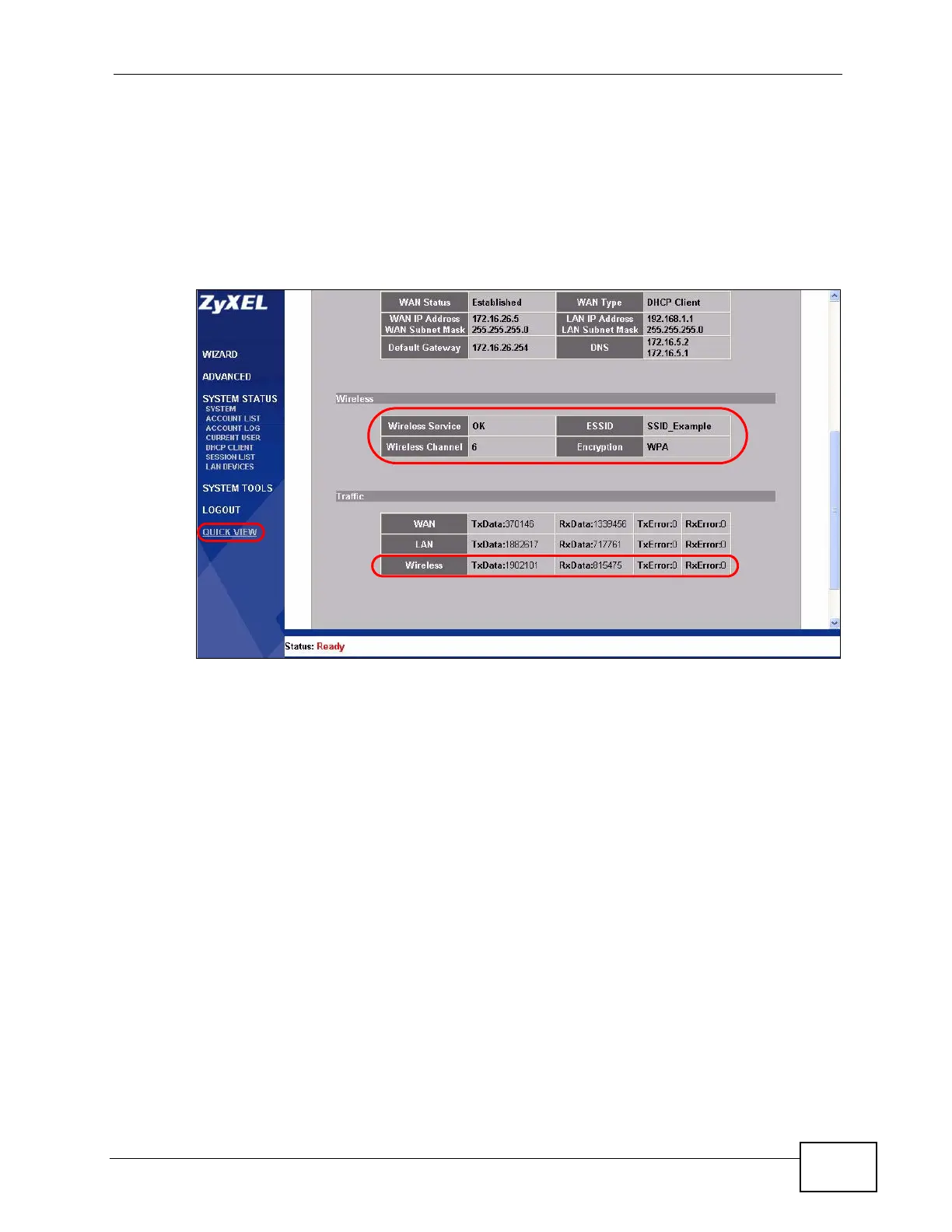

6 Click QUICK VIEW to open the System Quick View screen. Verify your wireless
and wireless security settings and check if the WLAN connection is up.
7 The user can now use the notebook’s wireless client to search for the N4100 (see
Section 3.2.2 on page 37).
3.2.2 Connecting to the N4100 Wirelessly
Use the wireless adapter’s utility installed on the notebook to search for the
“SSID_Example” SSID. Then enter the “DoNotStealMyWirelessNetwork” pre-
shared key to establish an wireless Internet connection.
Note: The N4100 supports IEEE 802.11b, IEEE 802.11g and IEEE 802.11n wireless
clients. Make sure that your notebook or computer’s wireless adapter supports
one of these standards.

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
