ZyXEL Communications N4100 User Manual

Chapter 3 Tutorials
N4100 User’s Guide
42
3.4 Subscriber Login
To log in as a subscriber, enter a web site address such as www.zyxel.com in a
web browser.
If user authentication is activated, the login screen displays prompting you to
enter the user name and password. A standard subscriber login screen (with the
credit card function) is shown in the figure below.

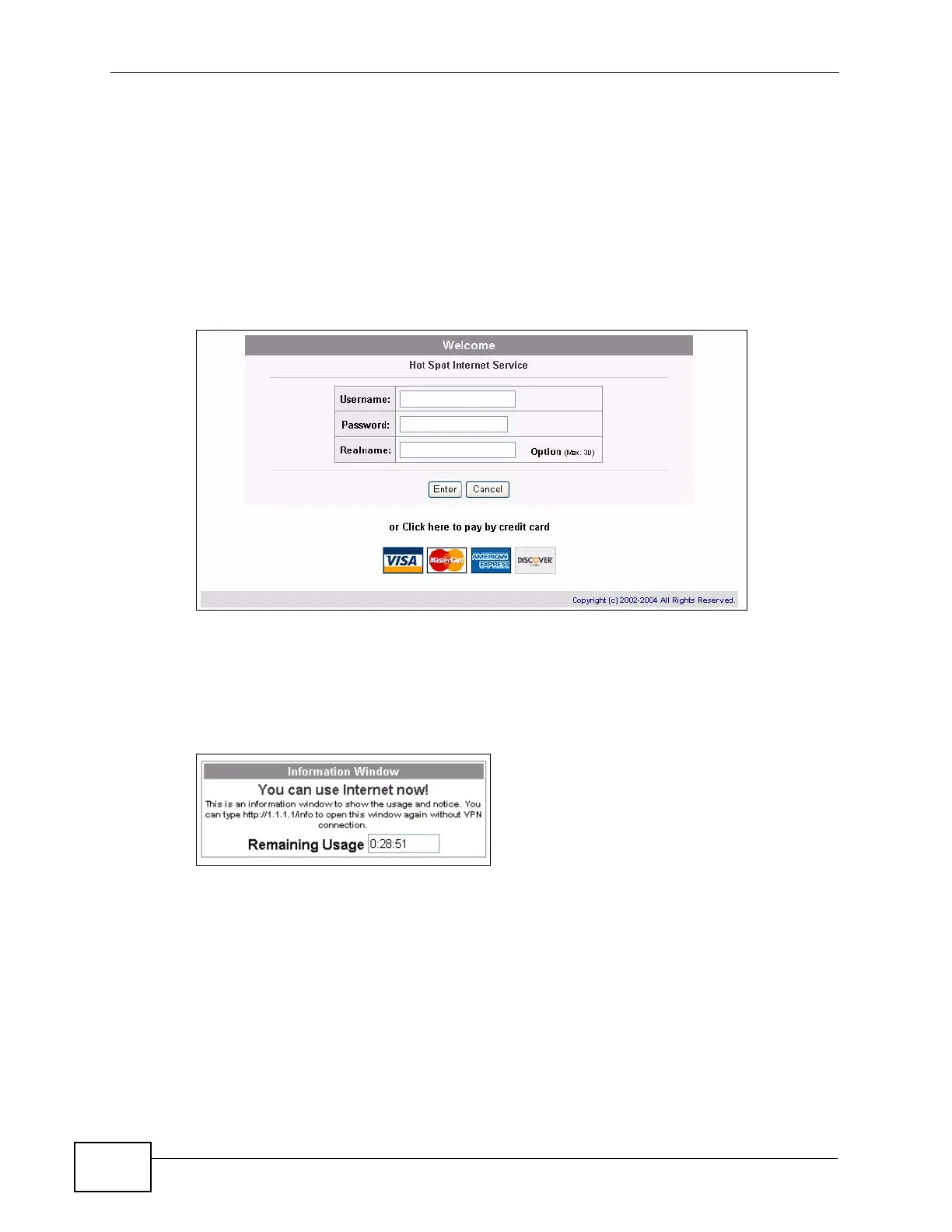

Figure 12 Subscriber Login Screen
Enter a user name and password and click Enter. Depending on the settings in the
N4100, either the specified web page or an advertisement web page displays. An
Information Window screen also displays showing the amount of time remaining
on the account for Internet access.
Figure 13 Subscriber Login: Information Window
3.5 Report Printing Using the SP300E
This section shows you how to print reports using the SP300E. See the SP300E
User’s Guide for details on how to set up the SP300E.

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
