ZyXEL Communications N4100 User Manual

Chapter 12 Keypad
N4100 User’s Guide
117
12.3.2 Keypad with Post-Paid Billing Example
The following is an example of how to configure the N4100 to use a PS/2 keypad
for post-paid billing.
1 Click ADVANCED > BILLING.
2 Select Post-Paid and click Apply.

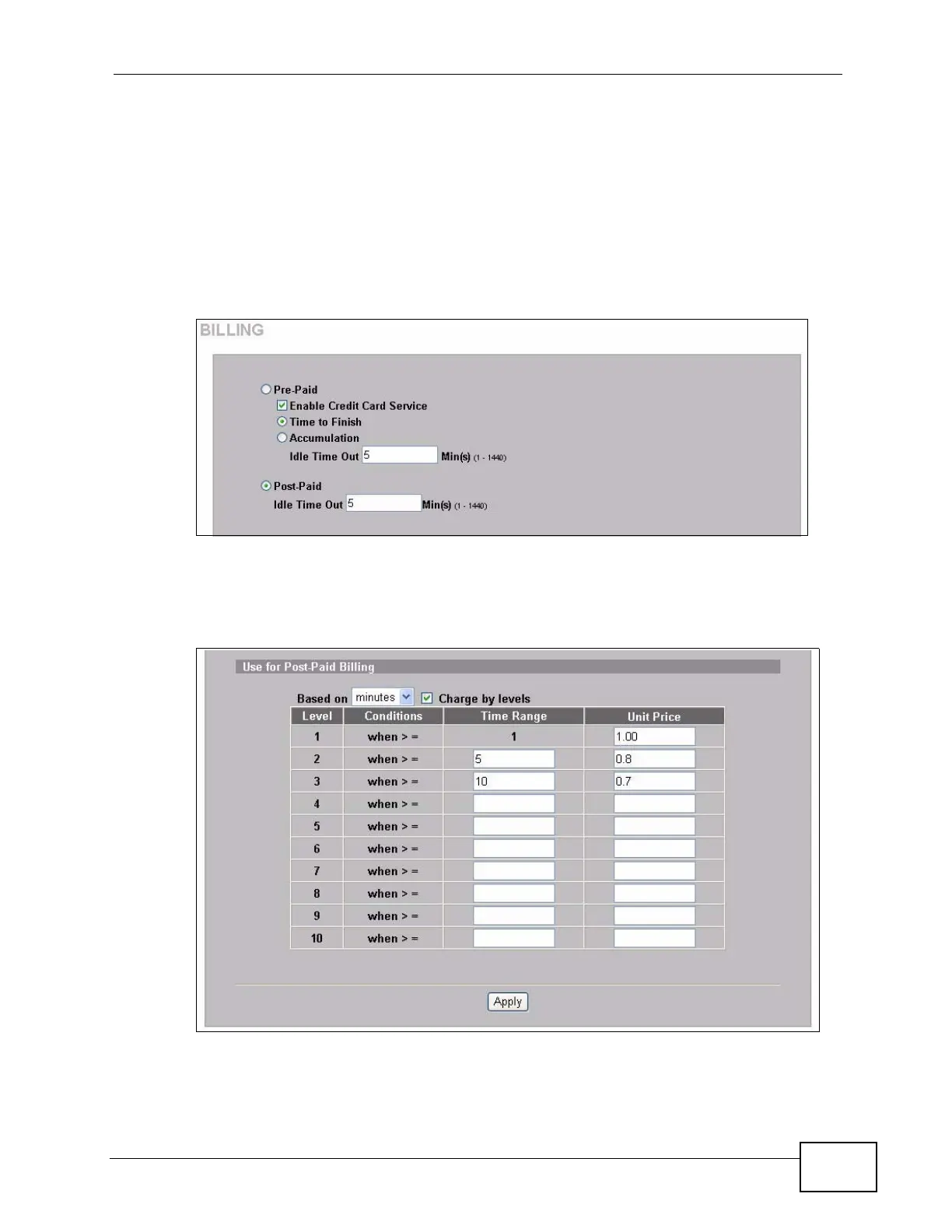

Figure 47 Select Post-Paid Billing
3 Click ADVANCED > KEYPAD.
4 Define your post-paid billing plan and click Apply.
Figure 48 Define Post-Paid Billing Plan

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
