ZyXEL Communications N4100 User Manual

Chapter 29 Configuration and Firmware
N4100 User’s Guide
233
With scheduled firmware upgraded, you need to set up a TFTP server where the
N4100 can automatically download the latest firmware at the specified time.
29.3.1 Manual Firmware Upgrade Using the Web Configurator
Follow the steps below to upload the firmware using the web configurator.
1 Click SYSTEM TOOLS > FIRMWARE > Manual Firmware Upgrade to display
the screen as shown.

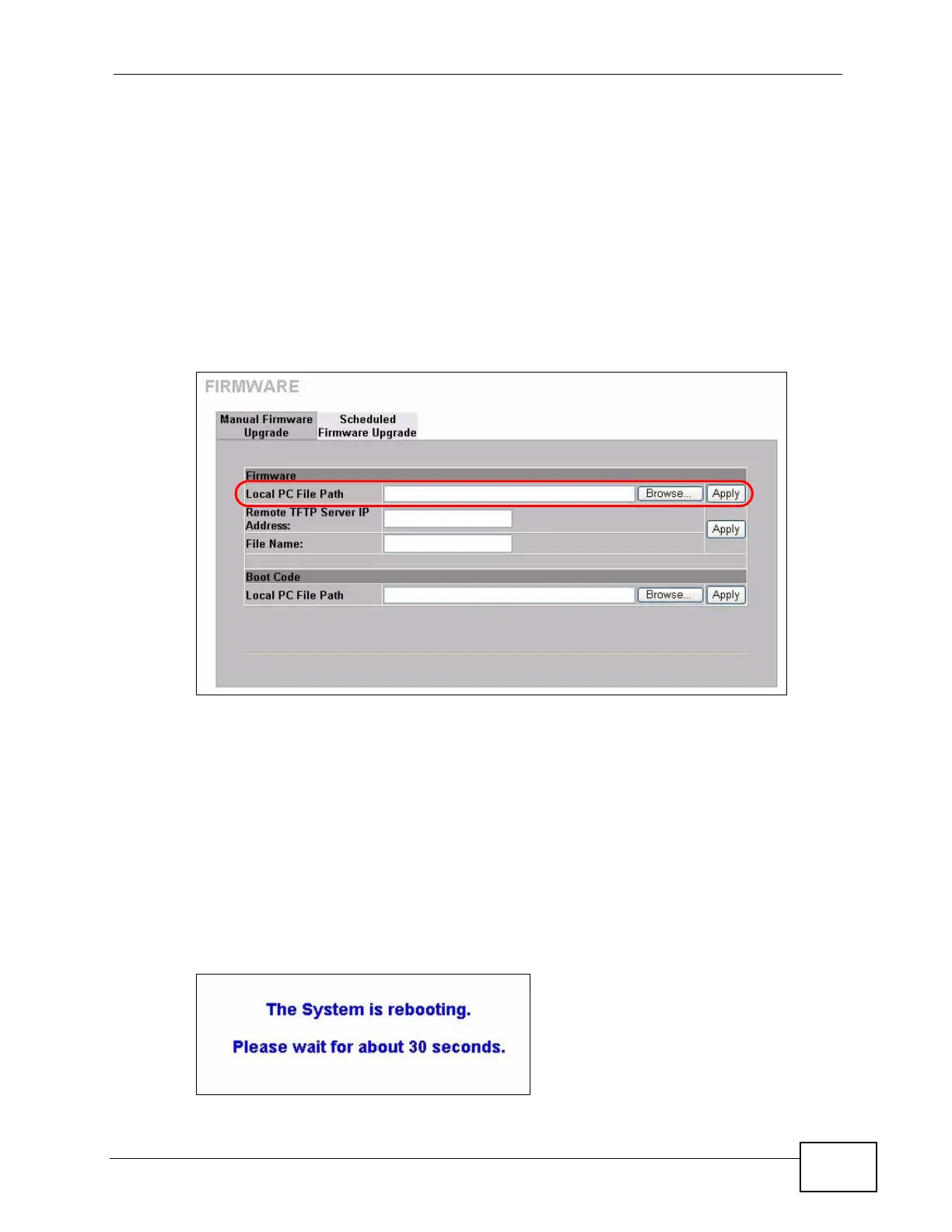

Figure 112 SYSTEM TOOLS > FIRMWARE > Manual Firmware Upgrade: Using the
Web Configurator
2 Specify the name of the firmware file in the Local PC File Path field or click
Browse to locate the file and click Apply to start the file transfer process. The
firmware must be a binary file and should have a .bin extension.
3 When the file transfer is completed successfully, a restart message displays and
the N4100 automatically restarts.
WARNING!
Do not interrupt the file upload process as this may
PERMANENTLY damage the device.
Figure 113 System Restart

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
