ZyXEL Communications N4100 User Manual

Chapter 29 Configuration and Firmware
N4100 User’s Guide
235
7 Click Apply to start the file transfer process.
8 When the file transfer is completed successfully, a restart message displays and
the N4100 automatically restarts.
WARNING!
Do not interrupt the file upload process as this may
PERMANENTLY damage the device.

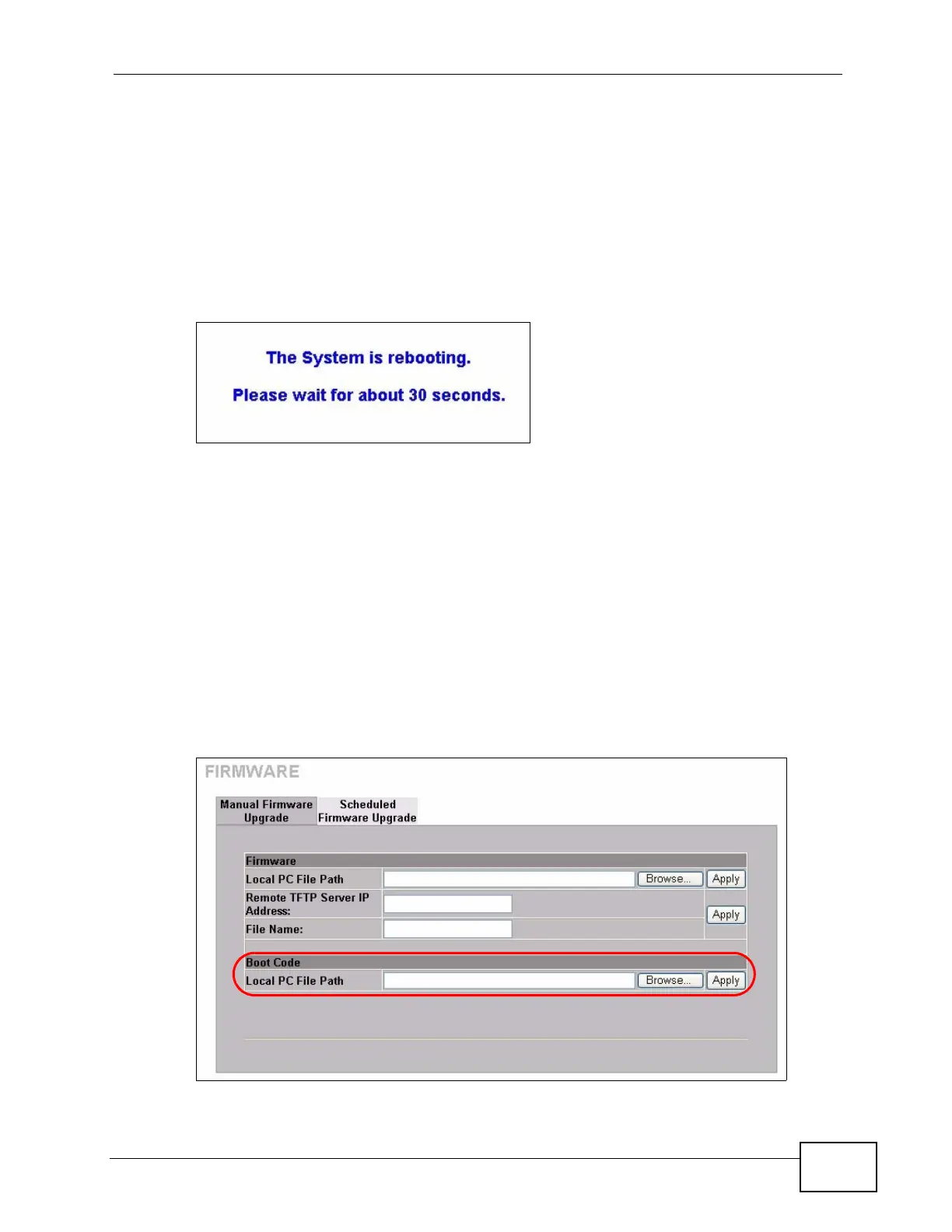

Figure 115 System Restart
9 After the N4100 finishes restarting, access the web configurator again. Check the
firmware version number in the System Quick View screen.
29.3.3 Manual Boot Code Upgrade Using the Web
Configurator
Follow the steps below to upload the boot code using the web configurator.
1 Click SYSTEM TOOLS > FIRMWARE > Manual Firmware Upgrade to display
the screen as shown.
Figure 116 SYSTEM TOOLS > FIRMWARE > Manual Firmware Upgrade: Boot
Code Upgrade Using the Web Configurator

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
