ZyXEL Communications N4100 User Manual

Chapter 29 Configuration and Firmware
N4100 User’s Guide
229
1 Click SYSTEM TOOLS > CONFIGURATION. A screen displays as shown next.

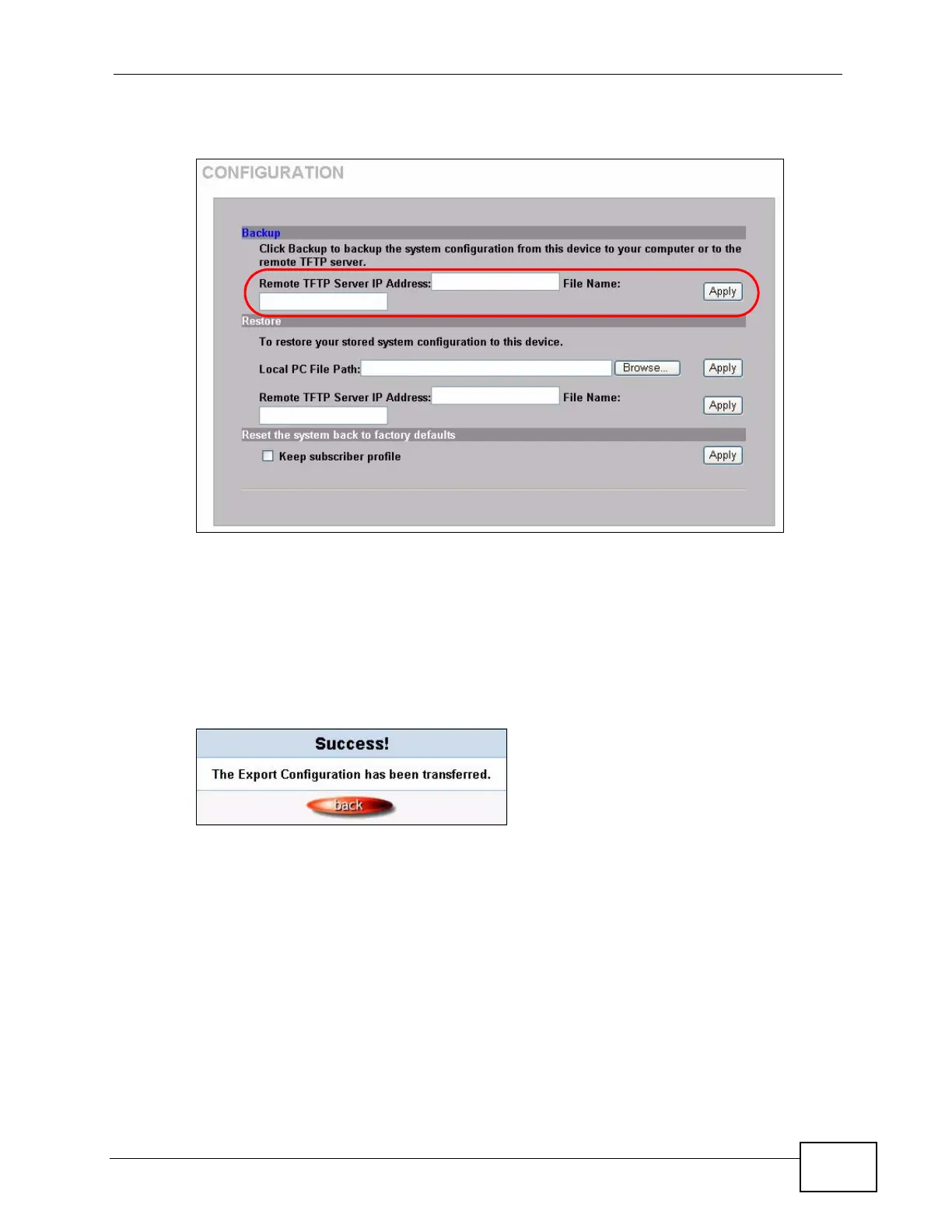

Figure 107 SYSTEM TOOLS > CONFIGURATION: Backup Using TFTP
2 Enter the IP address of the TFTP server in dotted decimal notation in the Remote
TFTP Server IP Address field.
3 Specify a file name for the configuration backup in the File Name field.
4 Click Apply. When the file transfer process is complete, a screen displays as
follows.
Figure 108 Configuration Backup: Using TFTP Successful
29.2.3 Restore Configuration Using HTTP
This section shows you how to upload a new or previously saved configuration file
from your computer to your N4100.
Note: This function erases the current configuration before restoring a previous back
up configuration; please do not attempt to restore unless you have a backup
configuration file stored on disk.

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
