Chapter 2 The Web Configurator
N4100 User’s Guide
29
2.2 Web Configurator Main Screen
The main screen is divided into these parts:

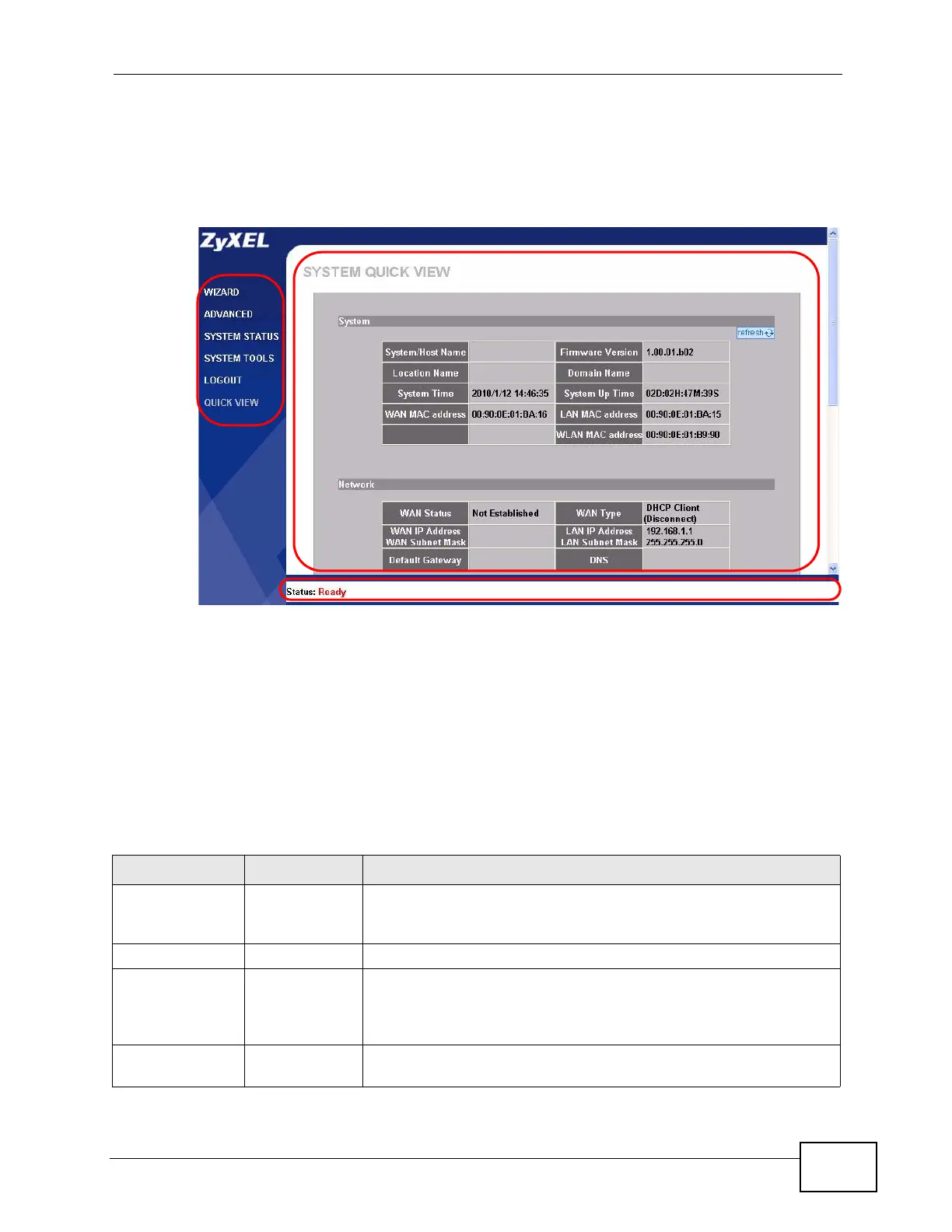

Figure 6 Main Screen
• A - navigation panel
• B - main window
• C - status bar
2.2.1 Navigation Panel
Use the menu items on the navigation panel to open screens to configure N4100
features. The following tables describe each menu item.
B
C
A
Table 2 Navigation Panel Summary
LINK TAB FUNCTION
WIZARD Use these screens for initial configuration including WAN and
wireless setup, subscriber authentication, billing profile, account
generating, statement printout, and system password and time.
ADVANCED
SYSTEM Use this screen to configure your device’s name, change your
N4100’s time and date, configure from which IP address(es) users
can manage the N4100, enable NAT and other system-related
general settings.
WAN/LAN Use this screen to set the LAN IP address, and configure the WAN
settings on the N4100 for Internet access.

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
