ZyXEL Communications N4100 User Manual

Chapter 19 LAN Devices
N4100 User’s Guide
166
You map virtual port 60001 on the N4100 to the web server port on the RADIUS
server and 60002 to the web server port on the manageable switch.

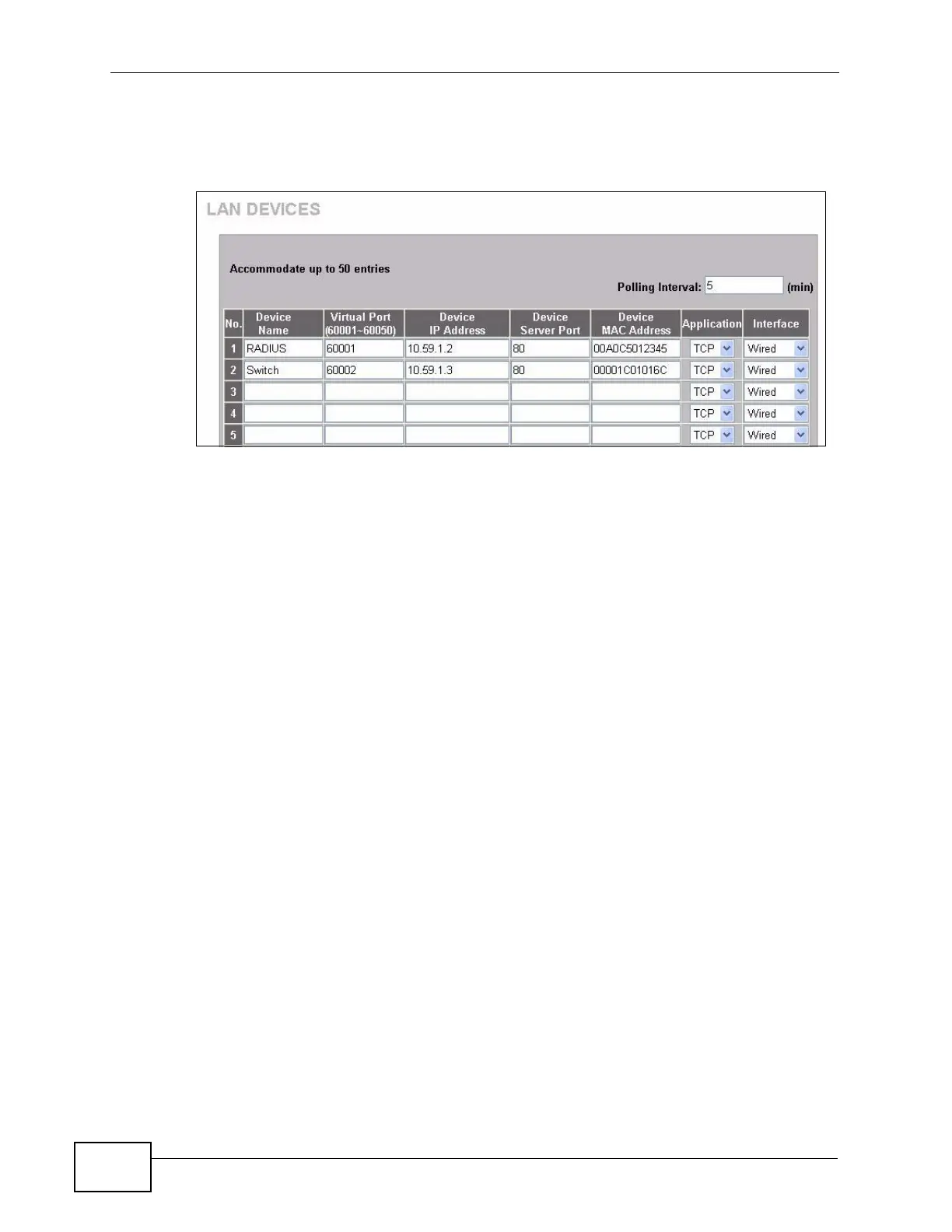

Figure 84 ADVANCED > LAN DEVICES: Example
To access the web-based management interface, enter the WAN IP address of
your N4100 and the virtual port number of the LAN device separated by a colon.
In this example, to access the RADIUS server, enter “http:// 192.168.1.1:60001”
where 192.168.1.1 is the WAN IP address of the N4100. The login screen of the
LAN device management interface should display.
You can also access the LAN device by entering the domain name provided that
the N4100 has a domain name (or a dynamic domain name). Enter the domain
name and the virtual port number separated by a colon, for example, http://
www.domainName:60001.
You can also access the LAN devices through the N4100 web configurator, refer to
Section 28.8.1 on page 224 for more information.

ZyXEL Communications N4100 Specifications

General

Number of users	100 user(s)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	100 Mbit/s
Indoor range	35 ~ 100 m
Outdoor range	100 ~ 300 m
Connectivity LEDs	Yes
Internal	No
Certification	FCC, CE, C-Tick, NCC, RoHS, WEEE
Security algorithms	802.1x RADIUS
Power requirements	100-240 VAC, 50/60 Hz, 0.5 A
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Weight	565 g
Dimensions (WxDxH)	222 x 146 x 152 mm
