ABB AC 800M

Configuring CI873 EtherNet/IP Communication Interface Unit Section 4 Configuration
108 9ARD000014-600 A
3. In the right side pane, select a position for the hardware unit in the Position
drop-down list. The first available position is chosen
by default.
4. Click Inser
t to apply the changes. Repeat previous steps to insert further units.
5. Click Clos
e to close the Insert window. The unit(s) are included in the
hardware tree.
It is possible to connect up to four CI873 under one AC 800M.
Configuring CI873 EtherNet/IP Communication Interface Unit
For configuring the CI873 EtherNet/IP Communication Interface Unit, in the
hardware tree double-click CI873 or right-click and select Editor from the context
menu. This opens the Hardware Editor, as shown in Figure 49.
The Hardware Editor contains three tabs — Settings, Connections and Unit Status.
The parameters for configuring the CI873 EtherNet/IP Communication Interface
Unit are found in the Settings tab. Configure the parameters according to the
description of parameters given in Table 16.

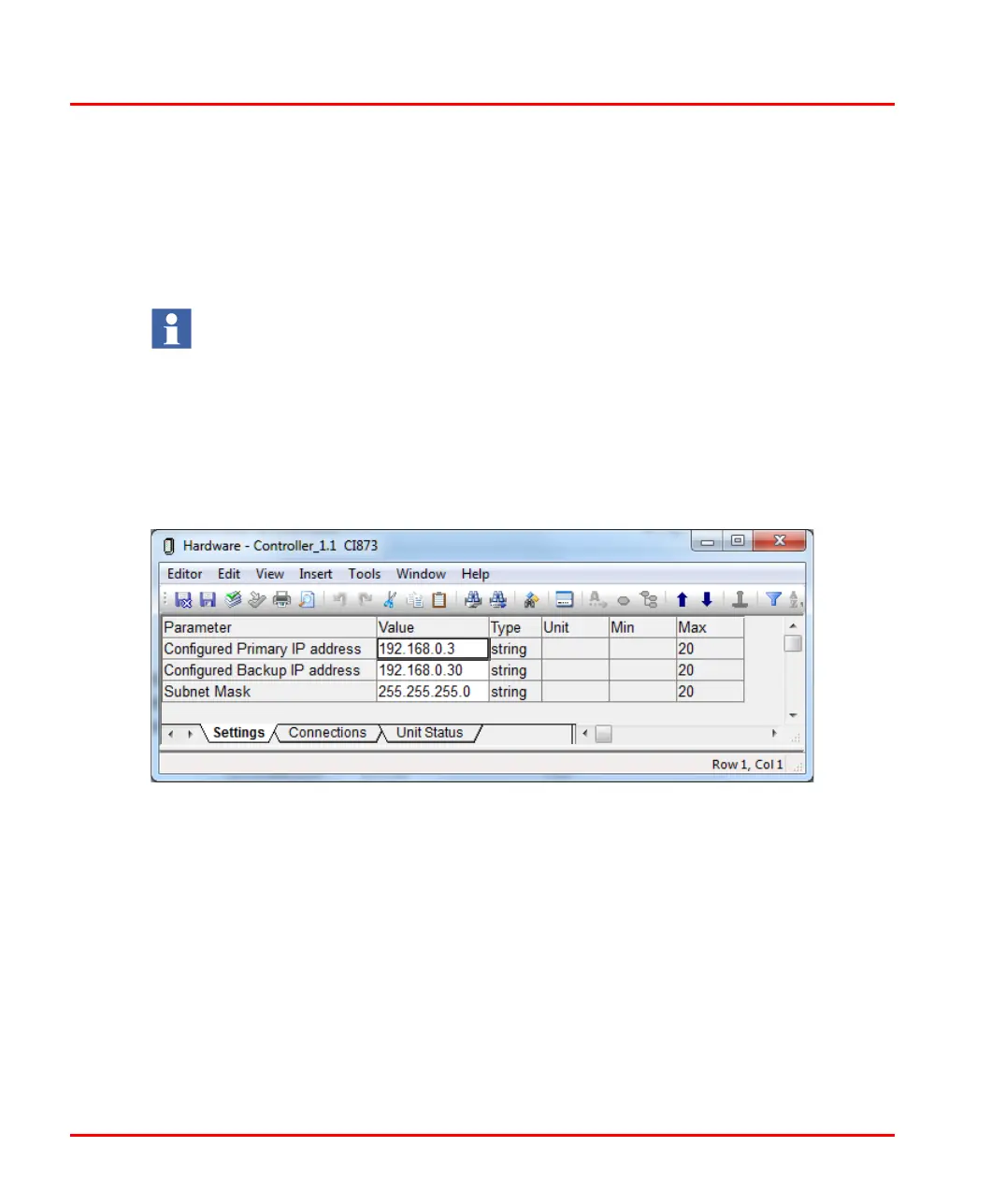

Figure 49. Hardware Editor – Settings for CI873
