File System Structure Section 6 Linking Device LD 800DN
202 9ARD000014-600 A
File System Structure

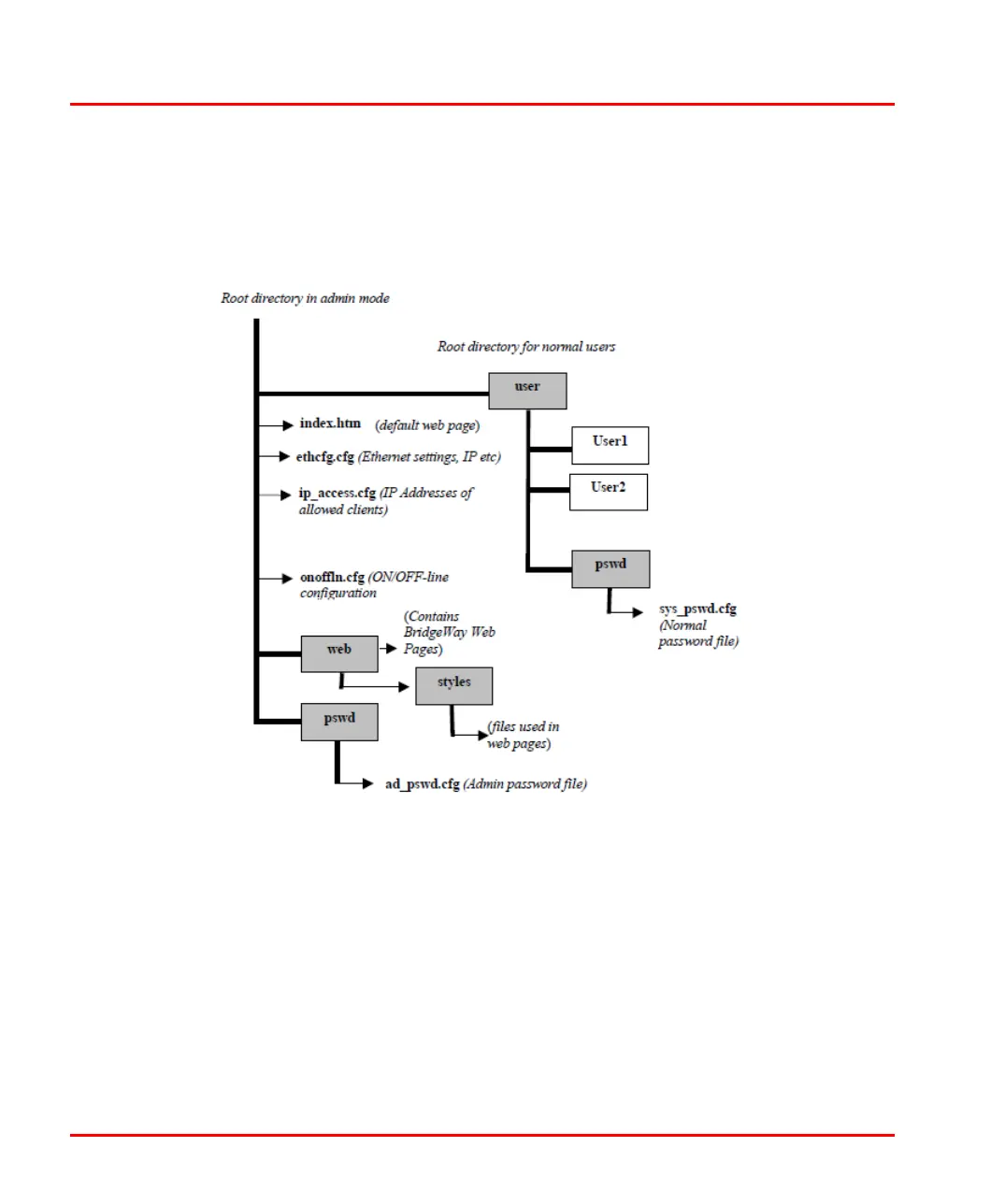

Figure 82. File System Structure in LD 800DN
Figure 82 illustrates the structure of the file system — where the system files are
located and which areas can be accessed by normal/admin users.
File System Security
The LD 800DN file system has two security levels — Admin mode and Normal
mode. Depending on the security level allowed for different users, they can have
access to different files and directories.
