ABB AC 800M

Configuring S200 I/O Modules Section 4 Configuration
152 9ARD000014-600 A
S200 IO modules that are supported with Ethernet/IP connectivity are mentioned
below:
200-IB16, 200-OB8EP, 200-OB16, 200-OB16P, 200-IB10XOB6, 200-IE8, 
200-OE4, 200-IE4XOE2, 200-IP2, 200-IP4, 200-IR8, 200-IR8R, 200-IT8, 200-IA8,
200-OA8, 200-OW8, 200-IF4I, 200-OF4I, 200-IM8, 200-OM8, 200-IB32, 
200-OB32P, 200-IB16XOB16P, 200-DUTB.
In addition to the above I/O modules following S200L I/O and S200C I/O modules
are also supported.
S200C - I/O: 200C-IB16, 200C-IB10XOB6P, 200C-OB16P, 200C-IE8, 
200C-IE4XOE2, 200C-OE4.
S200L - I/O: DI210, DX210, DO210, AI210, AX210, AO210.
Configuring S200 I/O Modules
For configuring the S200 I/O Modules in the hardware tree double-click I/O
Module or right-click and select Editor from the context menu. This opens the
Hardware Editor, as shown in Figure 63.

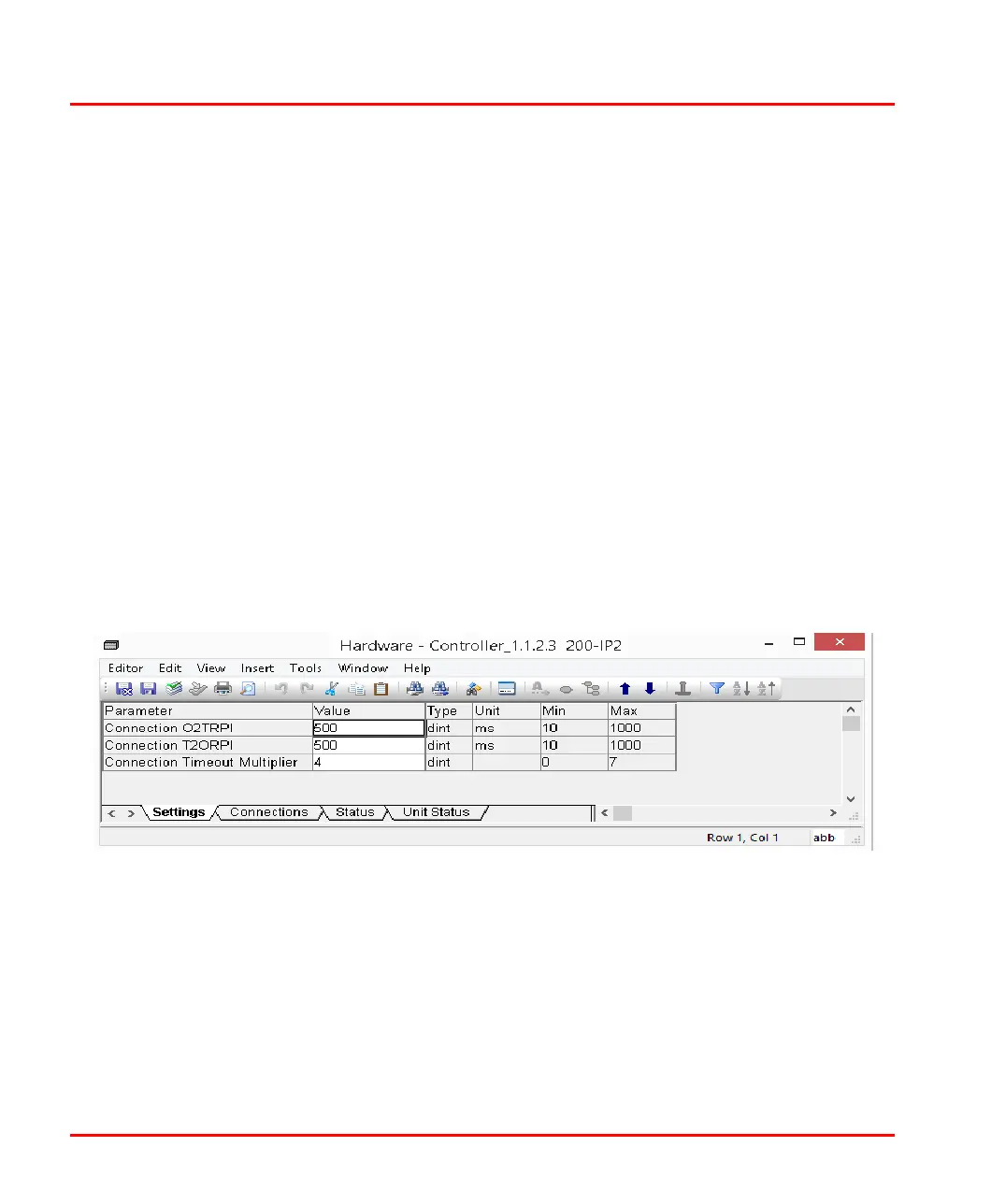

Figure 63. Hardware Editor – Settings for S200 I/O Modules
