Section 4 Configuration Adding DeviceNet Slave Device Unit
9ARD000014-600 A 121
Adding DeviceNet Slave Device Unit
This section describes how to insert and configure DeviceNet devices in Control
Builder.
Inserting DeviceNet Slave Device Unit
Certain DeviceNet slave devices require custom software utilities, provided by their
vendors, to configure them. Refer to the respective device manual to configure them
properly before using them with CI873 for communication.
Follow these steps for inserting a DeviceNet Slave Device Unit in the hardware tree:
1. Right-click the LD 800DN and select In
sert Unit. The Insert Unit window
appears as shown in Figure 52.

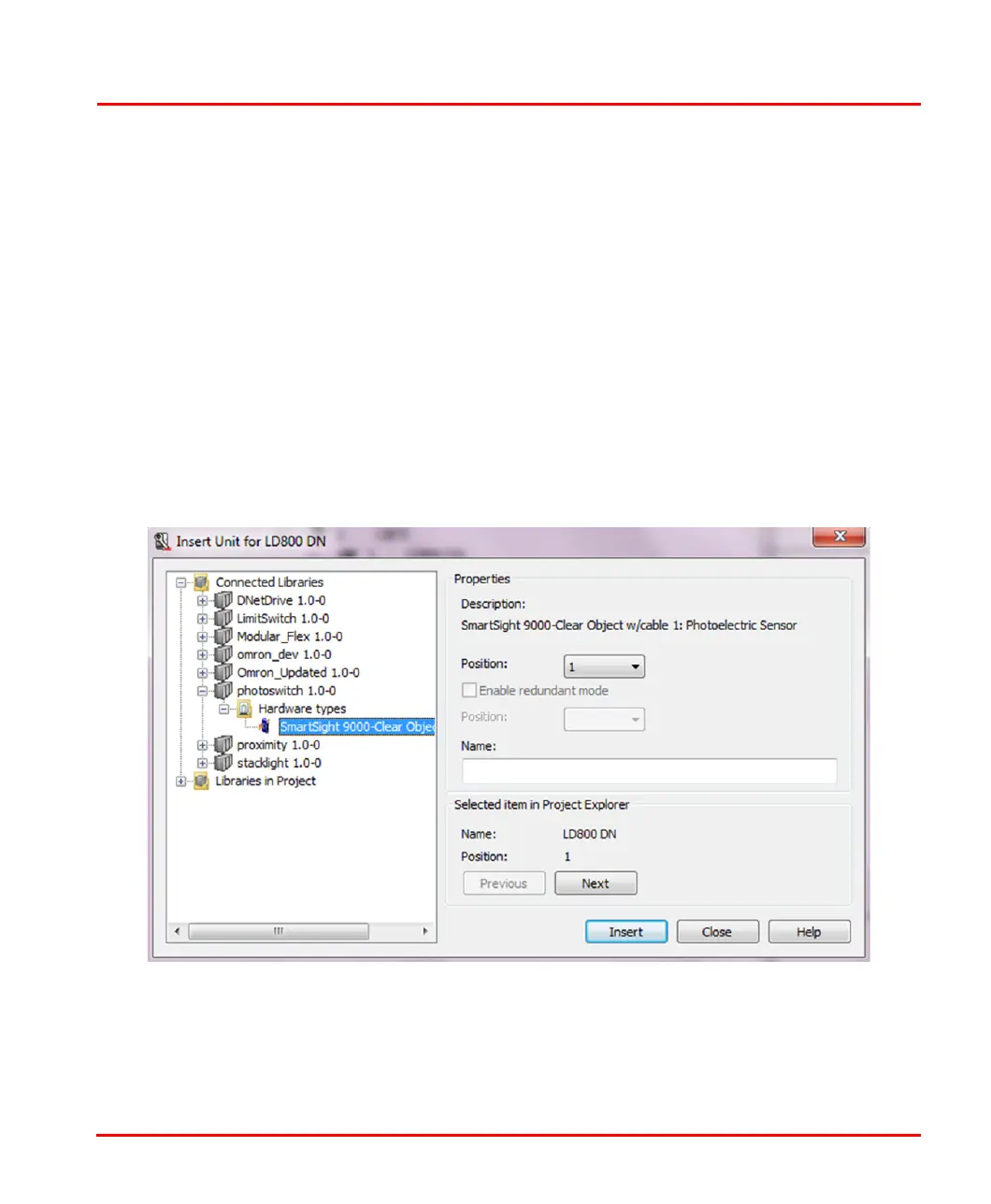

Figure 52. Inserting a DeviceNet Slave Device
