Section 3 Device Import Wizard Converting an EDS File to a Hardware Unit Type
9ARD000014-600 A 49
Converting an EDS File to a Hardware Unit Type
To use the Device Import Wizard for converting an EDS file to a hardware unit type,
follow these steps:
1. Open the Control Builder and create a new project.
2. Select Libr
aries > Hardware.
3. If a new library is to be created, then:
– Right-click Ha
rdware and select New Library. The New Library
window is displayed, as shown in Figure 5.

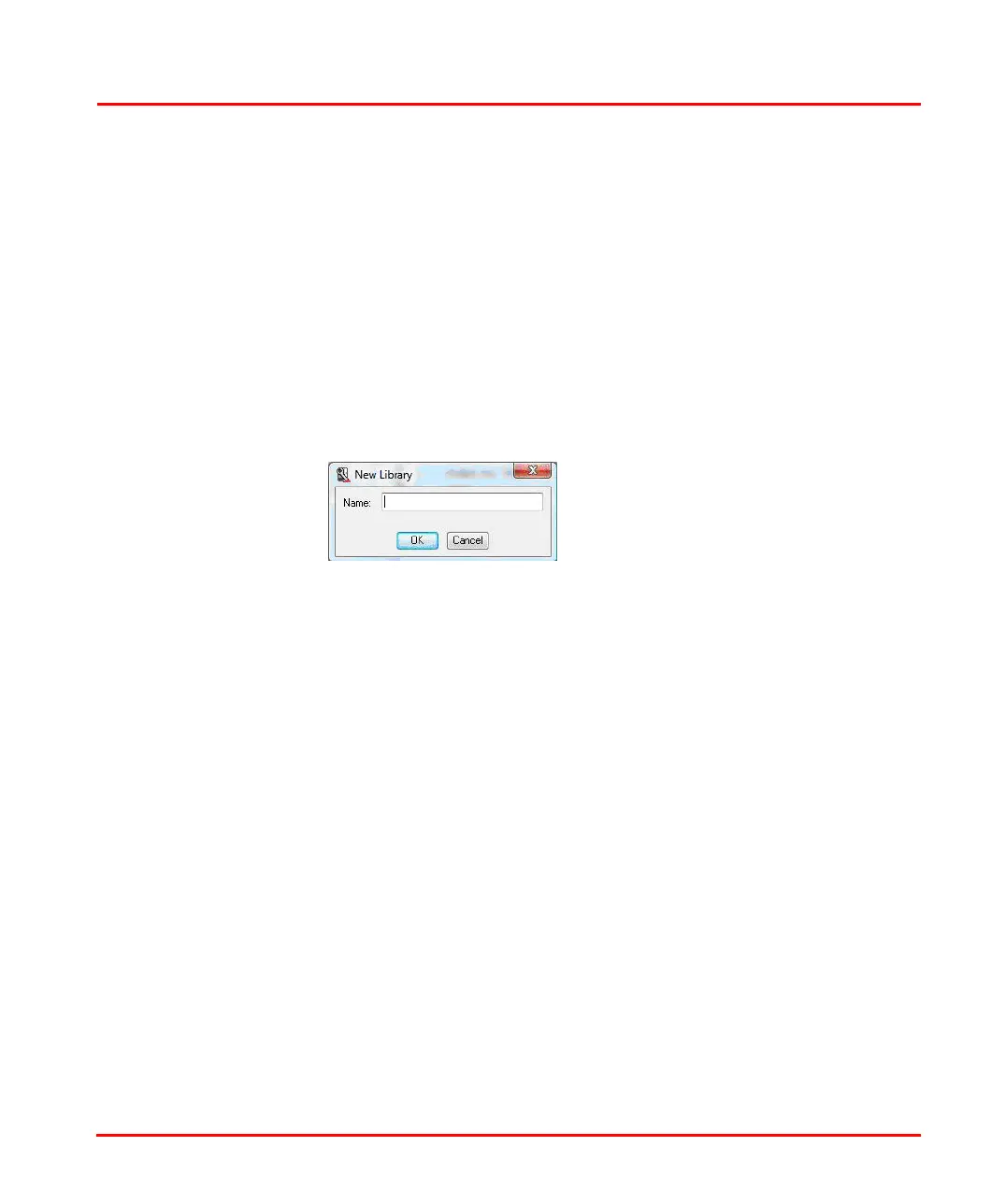

Figure 5. New Library Window
– Enter a library name in the Name field and click OK. The new user
defined library is created under the hardware tree.
4. From the hardware tree, expand the user defined library.
5. Right-click Ha
rdware types and select Insert/Replace Hardware Type(s).
The Insert Hardware Definitions window appears as shown in Figure 6.
