Section 6 Linking Device LD 800DN Slave Status Web Page
9ARD000014-600 A 195
Slave Status Web Page

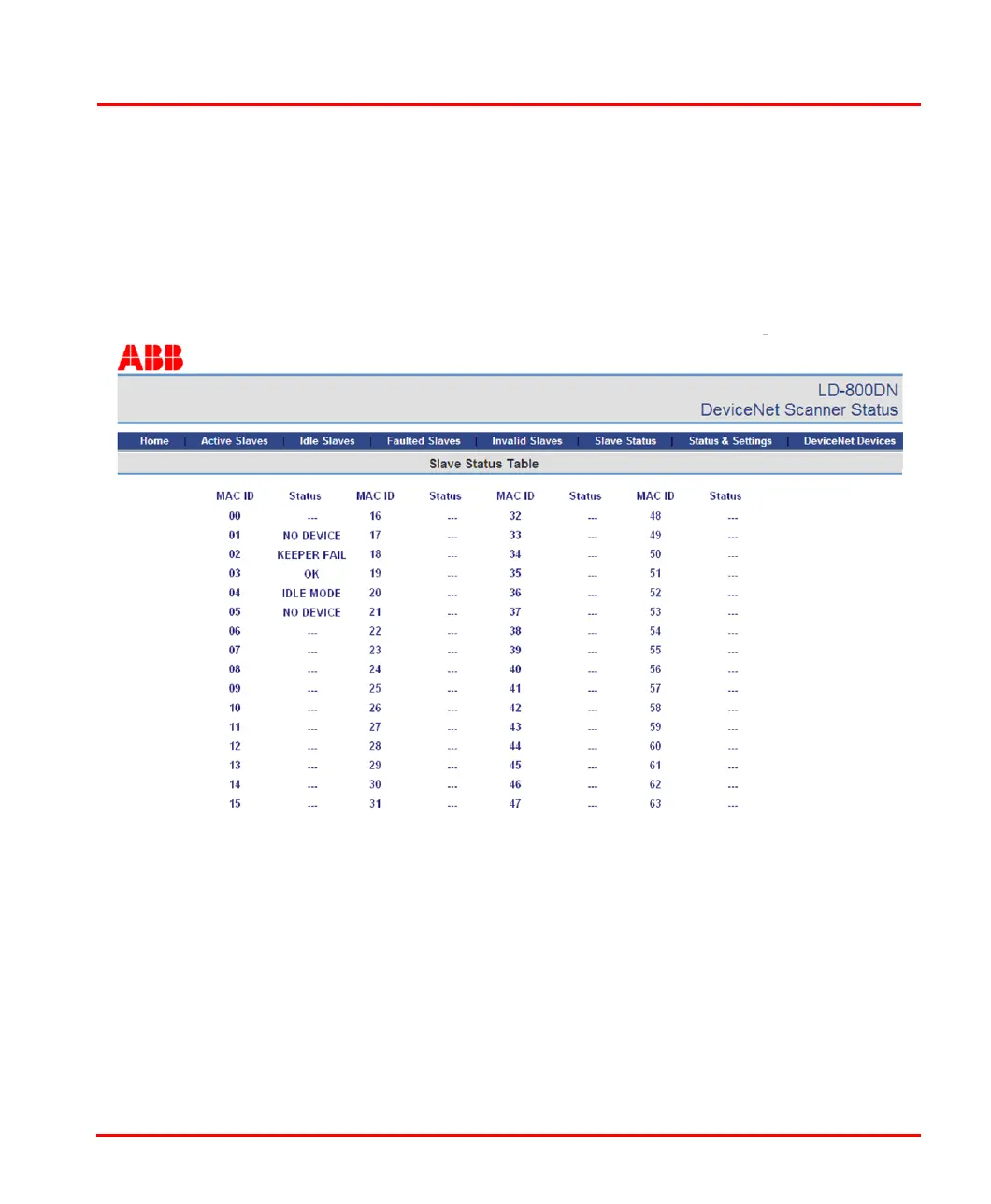

Figure 77. Slave Status web page
The Slave Status page, shown in Figure 77, displays the current status of all
DeviceNet slave nodes that are configured as slaves to the LD 800DN and also the
status of the LD 800DN itself. The status of each node is displayed next to the MAC
ID of the node.
