Section 8 Hardware Connections
Connect CI873 on CEX Bus
CI873 should be physically present on the CEX Bus once it is configured in the
Control Builder. Figure 83 displays the complete setup.

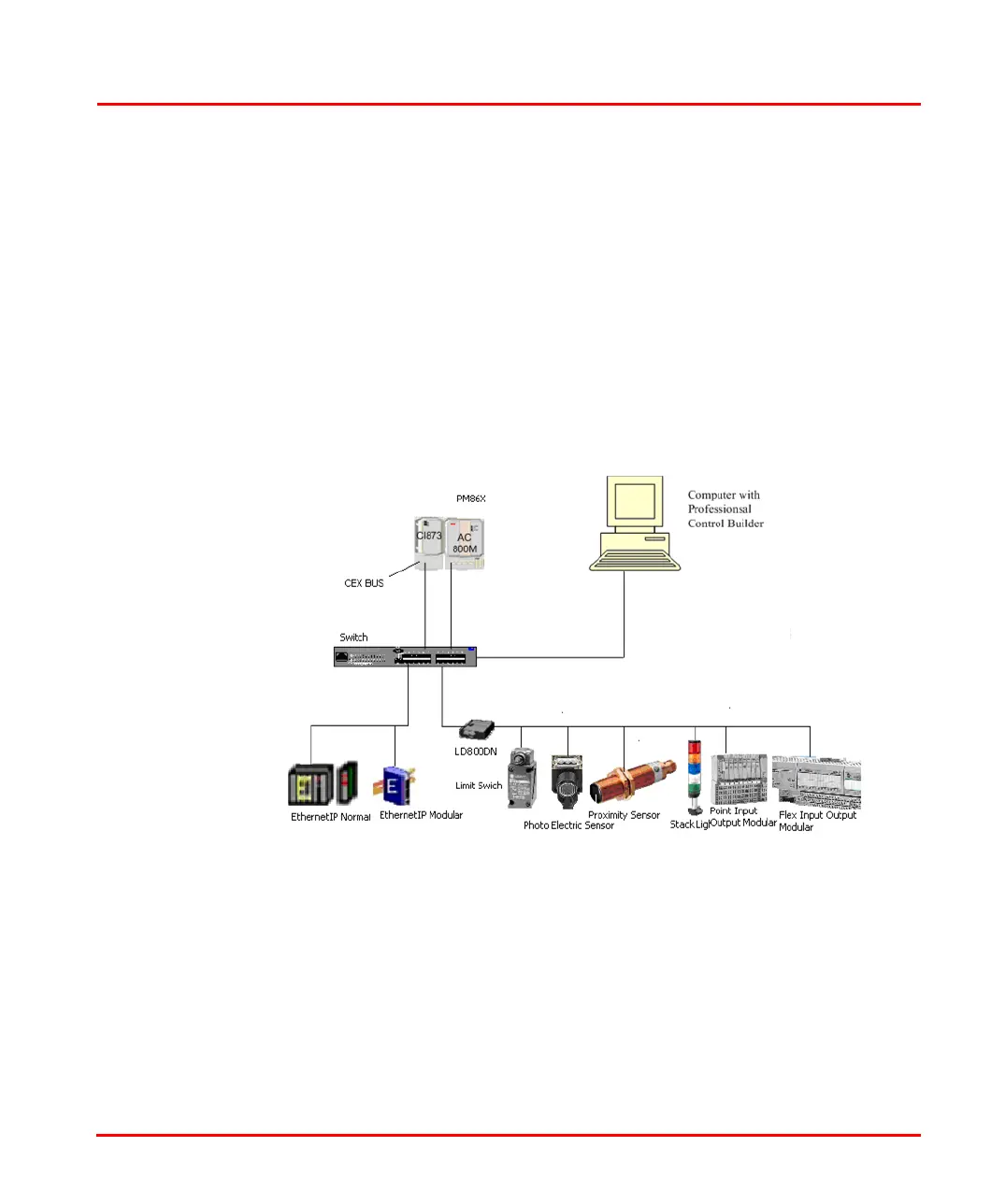

Figure 83. I/O Devices connected through LD 800DN
