ABB AC 800M

Ethernet RJ45 Section 8 Hardware Connections
220 9ARD000014-600 A
Ethernet RJ45

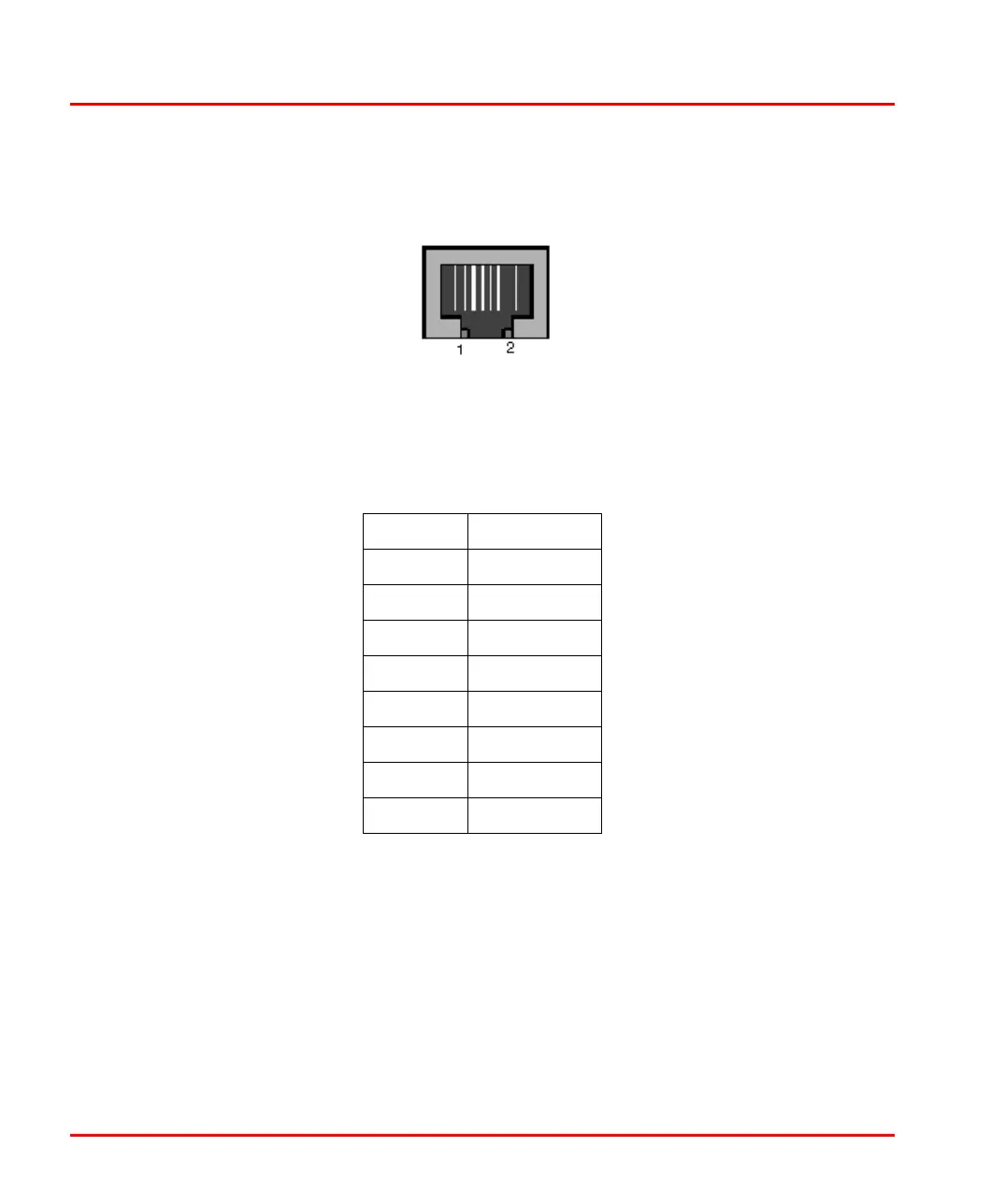

Figure 86 shows the pinout details for RJ45.
Table 39 shows signals assigned to the RJ45 pins.
Figure 86. RJ45 Pinout
Table 39. RJ45 Pinout
Pin Signal
1TD+
2TD-
3RD+
4 Termination
5 Termination
6RD-
7 Termination
8 Termination
