Section 6 Linking Device LD 800DN Files and File System in LD 800DN
9ARD000014-600 A 201
The Set New DeviceNet Address page, appears as shown in Figure 81.
2. The Set New DeviceNet Devices pa
ge contains the following:
– Device - The de
vice name of the DeviceNet device is displayed here. The
device name is not displayed if the device vendor has not configured it
within the device.
– Curr
ent MAC ID - The current MAC ID is displayed here.
– Desir
ed MAC ID - Specify the new MAC ID here. It can be any free
MAC ID from 0 to 63.
3. After specifying the new MAC ID, click Se
t New MAC ID. If the ID has been
successfully changed, the
MAC ID set successfully message is displayed.

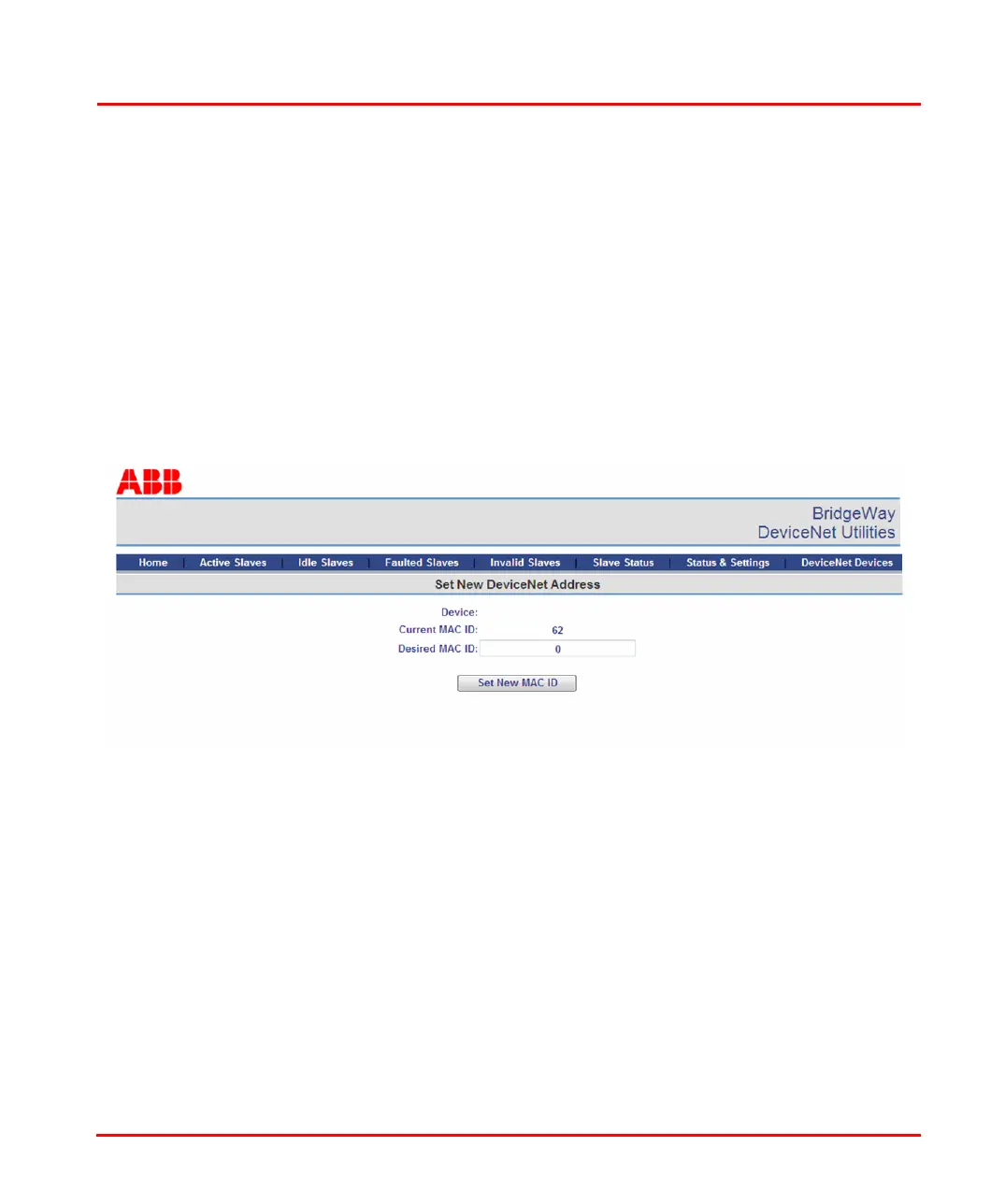

Figure 81. Setting New MAC ID
Files and File System in LD 800DN
The LD 800DN provides a file system and file transfer capabilities. The user data
and application data can be stored, if required, in files within this file system.
The size available for user data files is approximately 1 Mega Byte. The files can
also be grouped into directories. An inbuilt FTP server provides easy file access and
management through standard FTP clients.
