ABB AC 800M

Inserting S200 I/O Modules Section 4 Configuration
150 9ARD000014-600 A
Inserting S200 I/O Modules

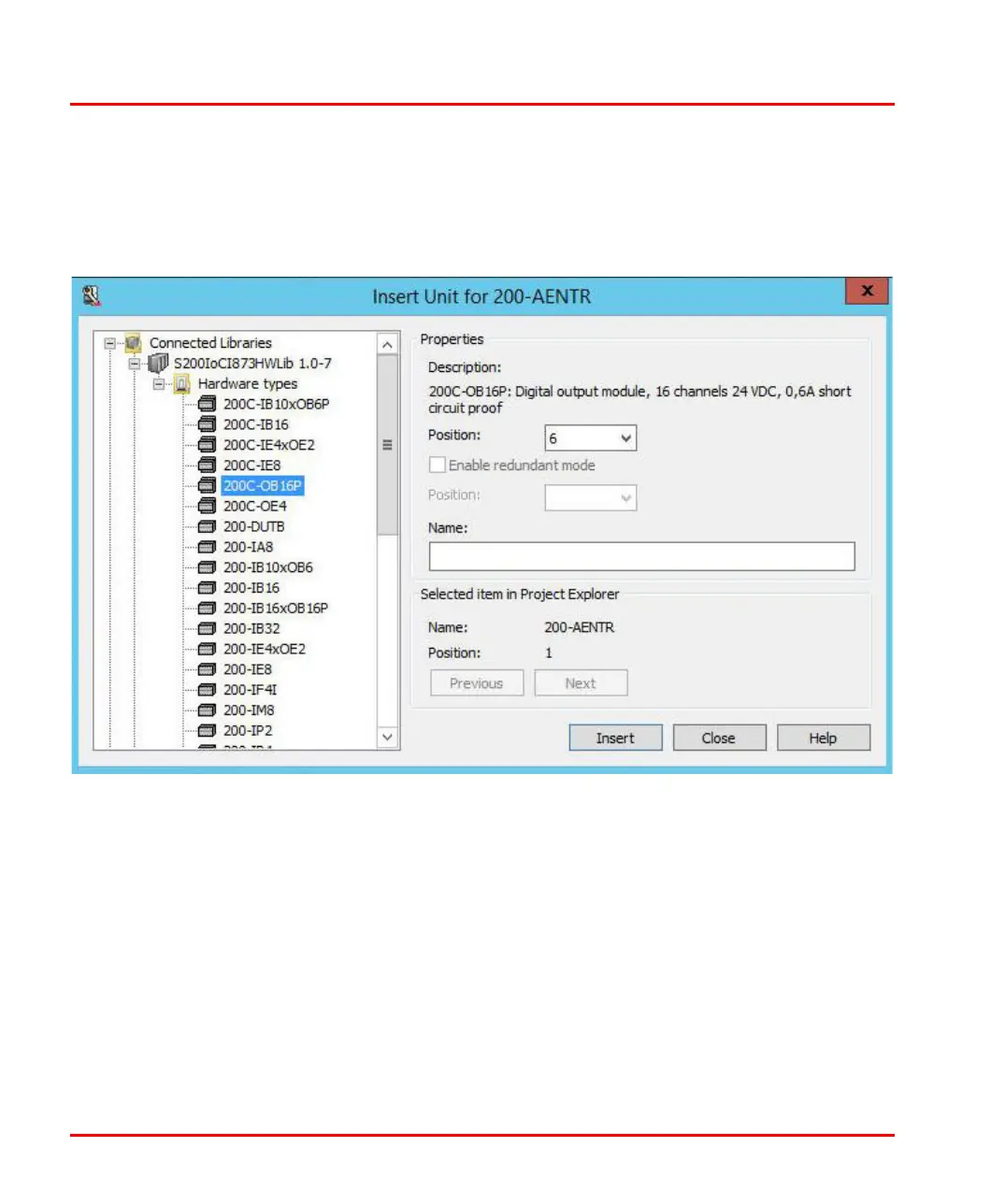

Figure 61. Select S200 I/O Modules
In the control builder tree right click the 200-AENTR Adapter and select Insert
Unit. The Insert Unit for 200-AENTR window appears as shown in Figure 61.
Select the I/O Modules and click Inse
rt. The modules will be inserted under 
200-AENTR as shown in Figure 62.
