Connect CI873 to LD 800DN Section 8 Hardware Connections
218 9ARD000014-600 A
Connect CI873 to LD 800DN
Connectors
The following are the connectors for LD 800DN:
– Power.
– DeviceNet.
– Ethernet RJ45.
– Auxiliary RS-232 9 Pin D-Subminiature.
Power
Figure 84 shows the LD 800DN power connectors.
Table 37 shows the Pin definitions for Power Connector.
Use Phoenix connector part number MSTB 2,5/2-ST-5,08 ABGY
.

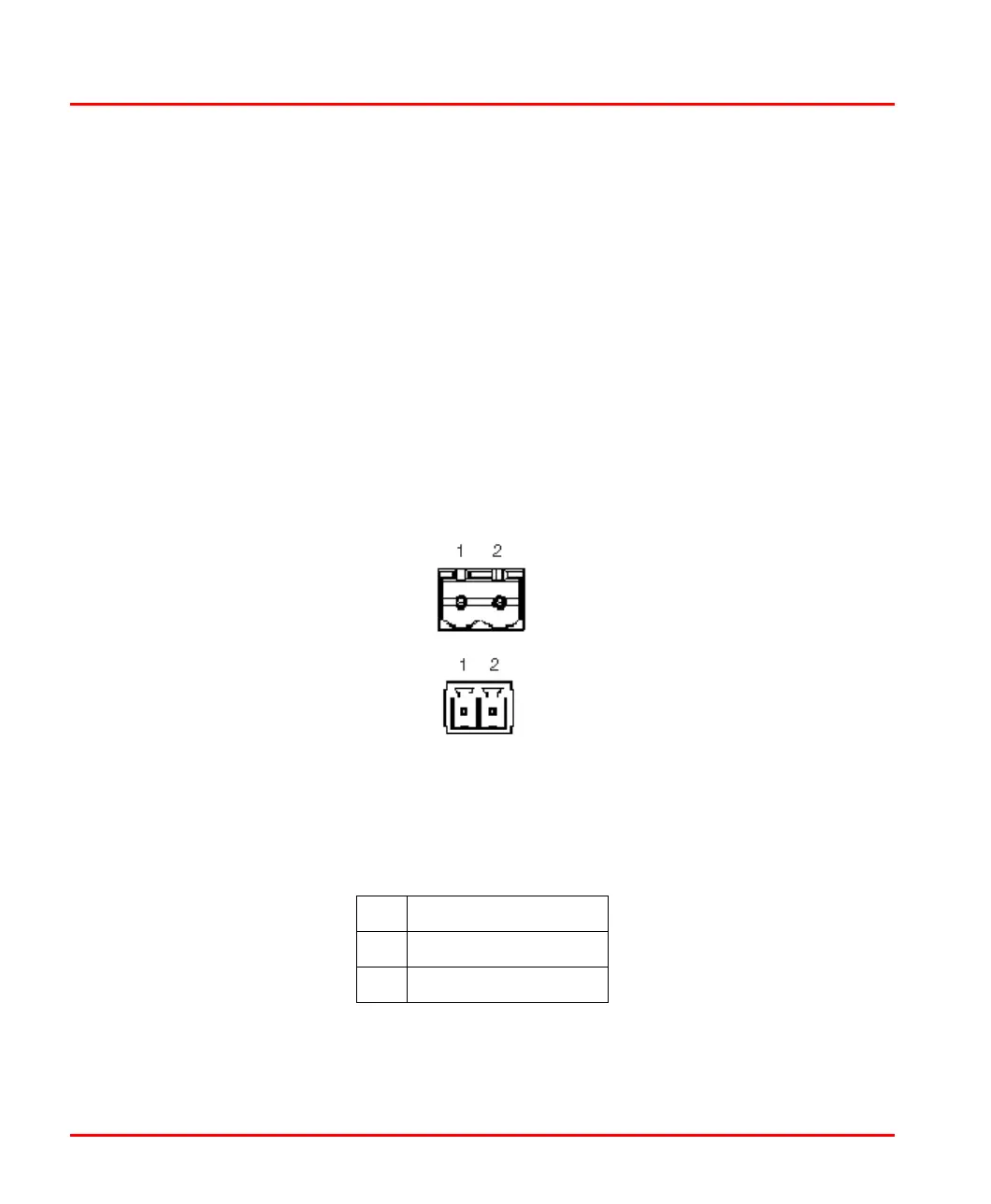

Figure 84. Power Connector
Table 37. Power Connector Pin Definitions
Pin Connection
124V DC +
2 24V DC Common
