Section 6 Linking Device LD 800DN Active Slaves
9ARD000014-600 A 191
Active Slaves

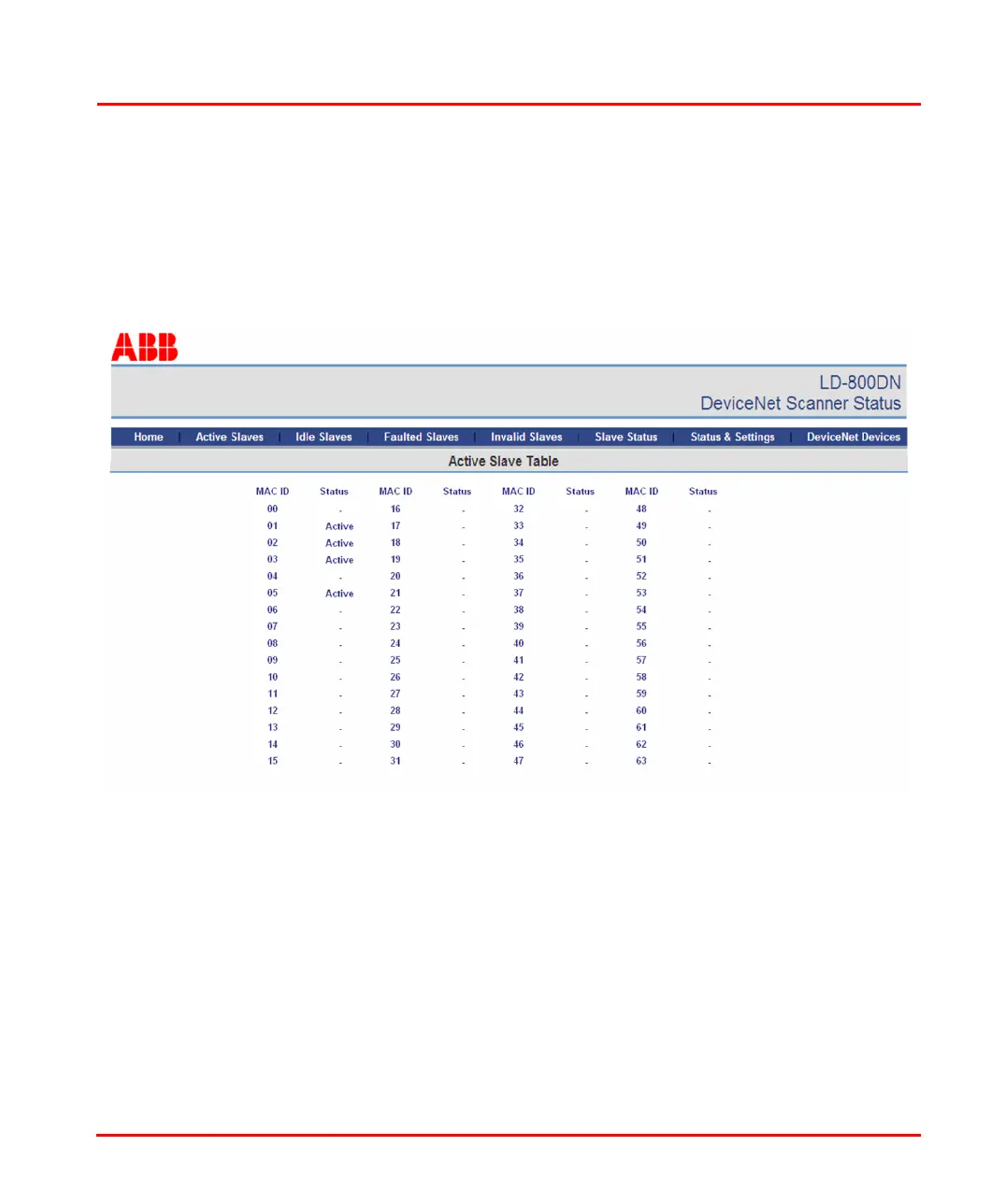

Figure 73. Active Slaves web page
The Active Slaves web page, shown in Figure 73, displays the DeviceNet slave
nodes which are configured as slave units under LD 800DN DeviceNet master in
Control Builder. Each node that is configured as slave is displayed with Active
status next to the MAC ID of the node.
