Section 4 Configuration Configuring a DeviceNet Slave Device Unit
9ARD000014-600 A 123
• Communication Related Parameters.
• Configuration Recovery Parameter.
When a DeviceNet device configured in Control Builder does not match with the
DeviceNet device available in the network, the device status shown in Control
Builder is
I/O Connection Error and not Wrong Device Type.

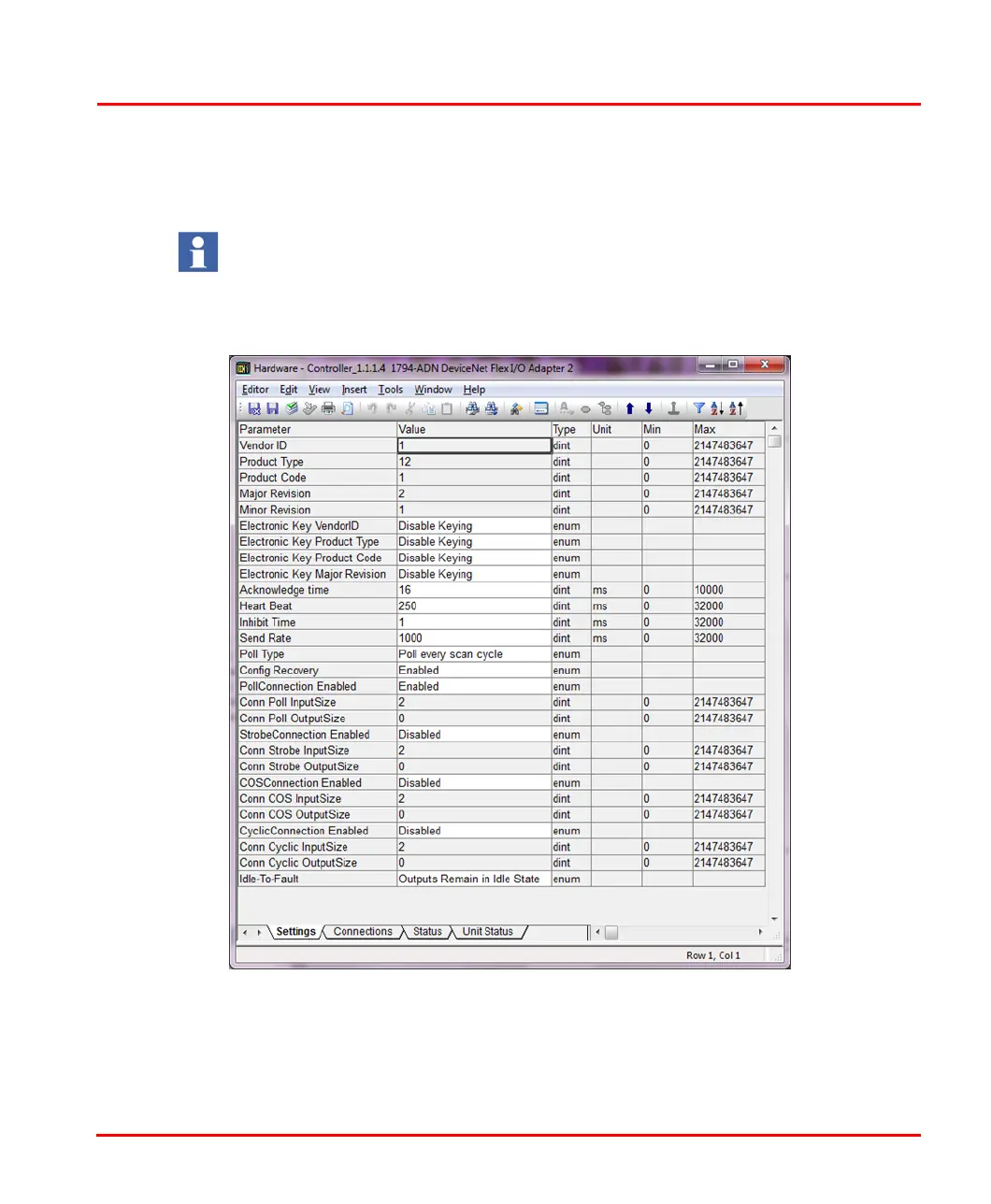

Figure 53. Hardware Editor – Settings for a
DeviceNet slave unit
