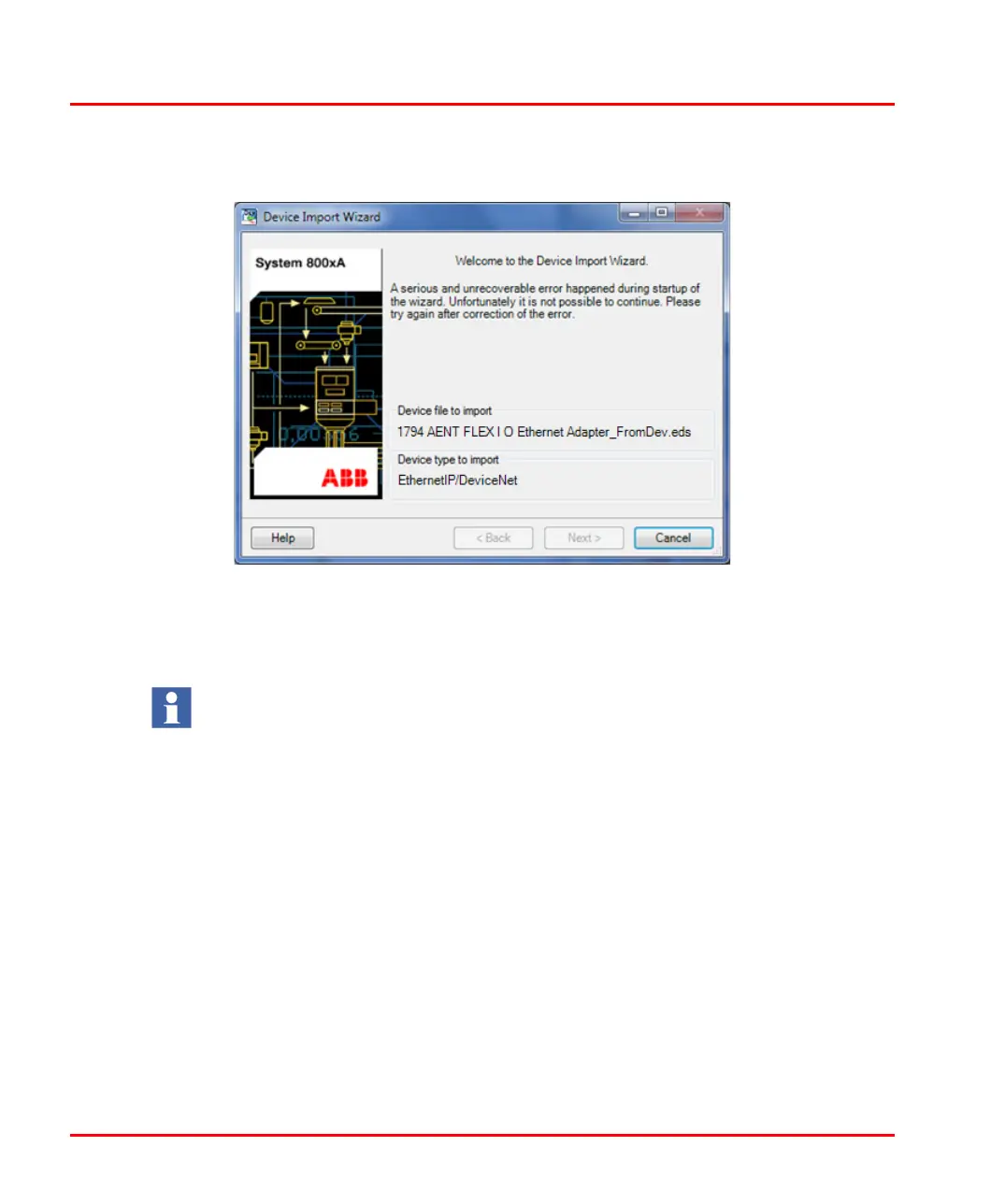

Figure 8. Erroneous Welcome page
Converting an EDS File to a Hardware Unit Type Section 3 Device Import Wizard
52 9ARD000014-600 A
10. Click Cancel to exit from the import process.
Repeat the preceding steps to re-attempt the loading of the EDS file. If the
loading fails again, install Control Builder again.
11. Click Next in the Welcome screen of Device Import Wizard. Depending on
the EDS file initially selected in Step 7, either of following windows are
displayed.
– If the EDS file belongs to a non-modular device, then General Purpose
Device window appears as shown in Figure 9.
– If the EDS file is an adapter’s file, then Modular IO System window
appears as shown in Figure 10.
