20 Control panel

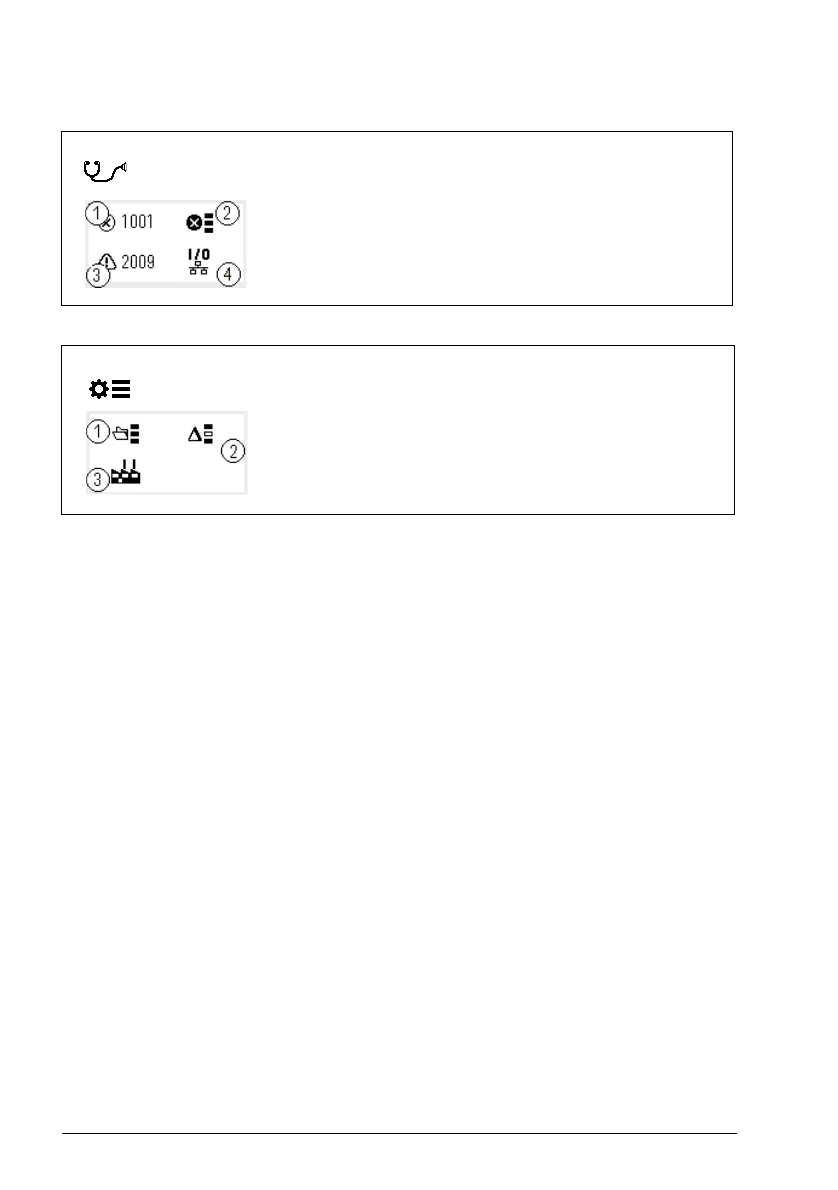

Diagnostics
1. Active Fault - shows the fault code
2. Fault History - list of latest fault codes (newest first)
3. Active Warnings - shows the warning code
4. Connection Status - Fieldbus and I/O signals
Parameters
1. Complete parameter list - groups menu with complete
parameters and parameter levels
2. Modified parameter list
3. Parameter restore - reset to factory default parameters
