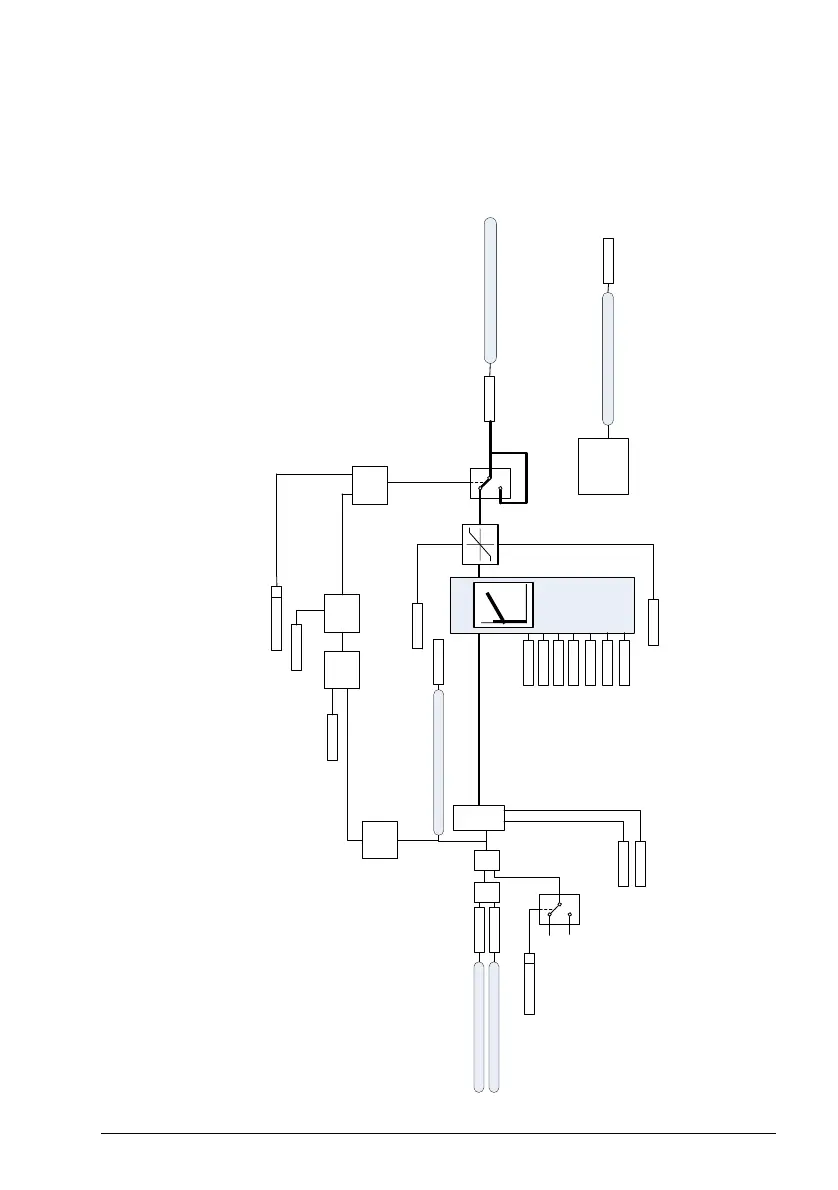

Control chain diagrams 389
External PID controller
71.32 Gain
71.36 Output min
71.37 Output max
1
-1
71.34 Derivation time
71.35 Derivation filter time
71.33 Integration time
71.31 Deviation inversion
71.03 Setpoint act value
Value
71.02 Feedback act value
Selection
>
Value
Value Value Value Value
-
Scale
71.01 External PID act value
71.38 Output freeze
Selection
>
Value
Value
Value
Value
EXTERNAL PID FUNCTION
PID
71.04 Deviation act value
x
71.07 PID operation mode
Value
71.06 PID status word
External
PID
status
Value
71.14 Setpoint scaling
Value
71.15 Output scaling
Value
71.39 Deadband range
Value
71.40 Deadband delay
Value
71.58 Increase prevention
Value
71.59 Decrease prevention
Value
Compare Delay
OR
ABS
