ABB ACS180 - Torque Limitation

Control chain diagrams 385

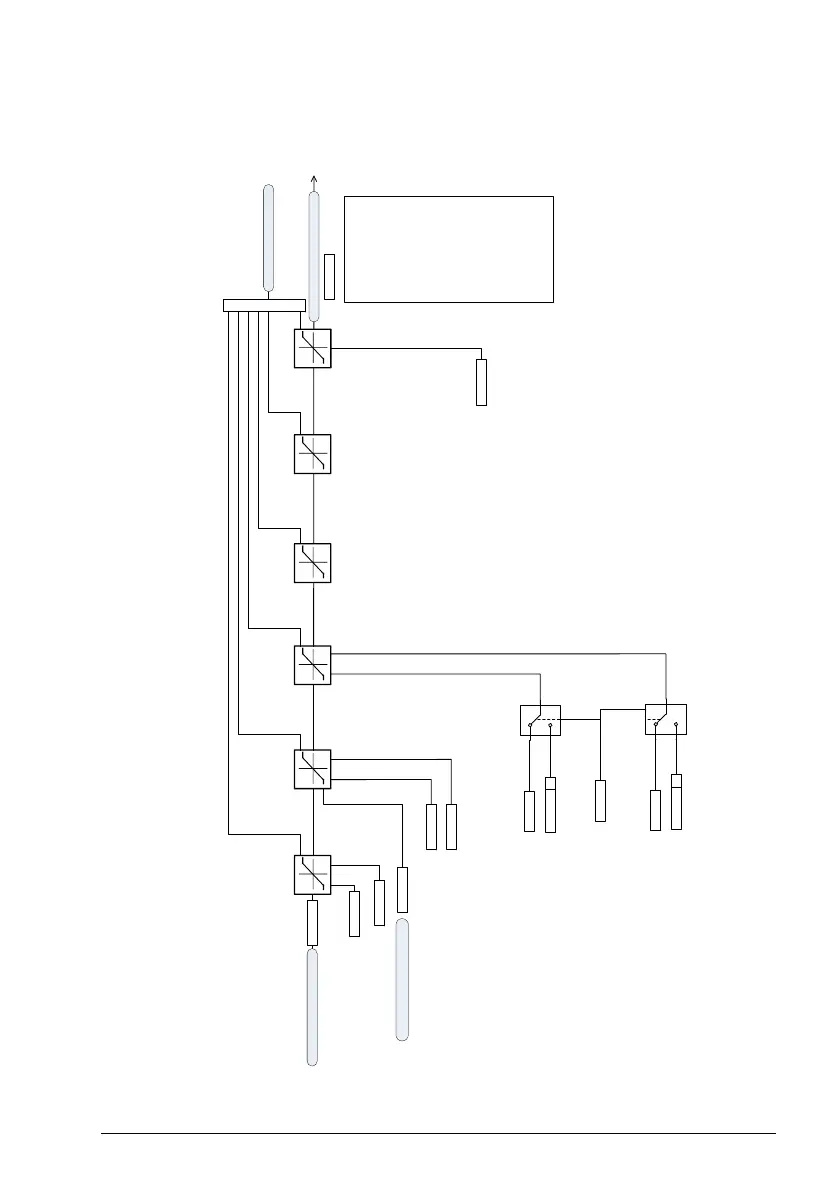

Torque limitation
30.30 Overvoltagecontrol
Value
26.01 Torq reference to TC
Value
DC voltage limiter
30.31 Undervoltagecontrol
Value
Power limiter Torque limiter
24.02 Used speed feedback
Value
30.26Powermotoringlimit
30.27Powergeneratinglimit
Value Value
26.02 Torque reference used
Current limiter
Load angle limitation
Motor pull-out limitation
30.17 Maximum current
Value
30.02 Torque limit status
To TC
Value
30.02 Torque limit status Bit Name 0 = Undervoltage 1 = Overvoltage 2 = Minimum torque 3 = Maximum torque 4 = Internal current 5 = Load angle 6 = Motor pull-out 7 = Reserved 8 = Thermal 9 = Max current 10 = User current 11 = Thermal IGBT 12 = 13 = 14 = 15 =
30.19 Minimum torque
Value
30.21 Min torque 2 source
30.18 Torq lim sel
Value
Selection
>
30.20 Maximum torque
Value
Selection
>
30.22 Max torque 2 source
