ABB ACS380 Series - Home view and Message view

18 Control panel
Home view and Message view
The Home view is the main view. Open the Main menu and Options menu from the
Home view.
The Message view shows fault and warning messages. If there is an active fault or
warning, the panel shows the Message view directly.
You can open the Message view from the Options menu or Diagnostics submenu.

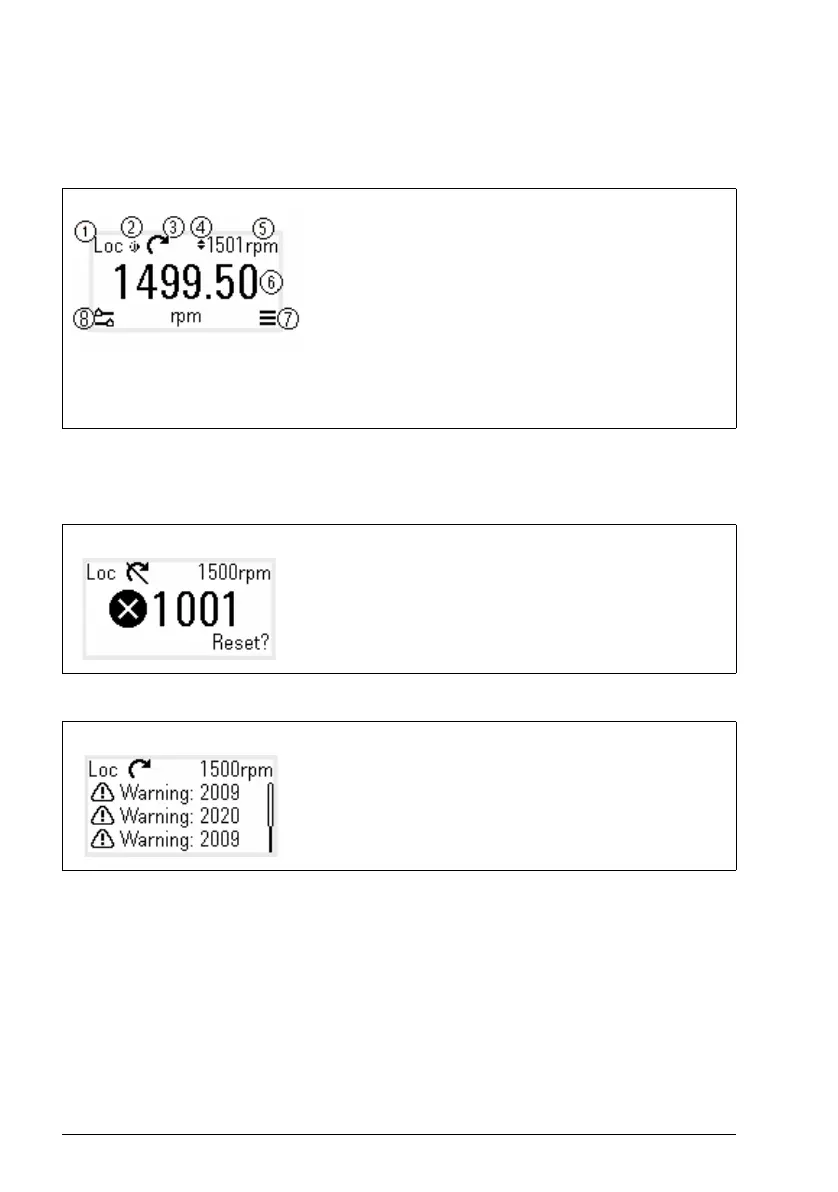

Home view
1. Control selection - local or remote
2. Local start/stop control - enabled
3. Rotation direction - forward or reverse
4. Local reference setting - enabled
5. Speed - target
6. Speed - current
7. Main menu - menu list
8. Options menu - quick access menu
Message view: Fault
Fault messages require your immediate attention.
Check the code in the Fault messages table on page 356 to
troubleshoot the problem.
Message view: Warning
Warning messages show possible problems.
Check the code in the Warning messages table on
page 348 to troubleshoot the problem.
