ABB ACS380 Series - Speed reference source selection I

448 Control chain diagrams

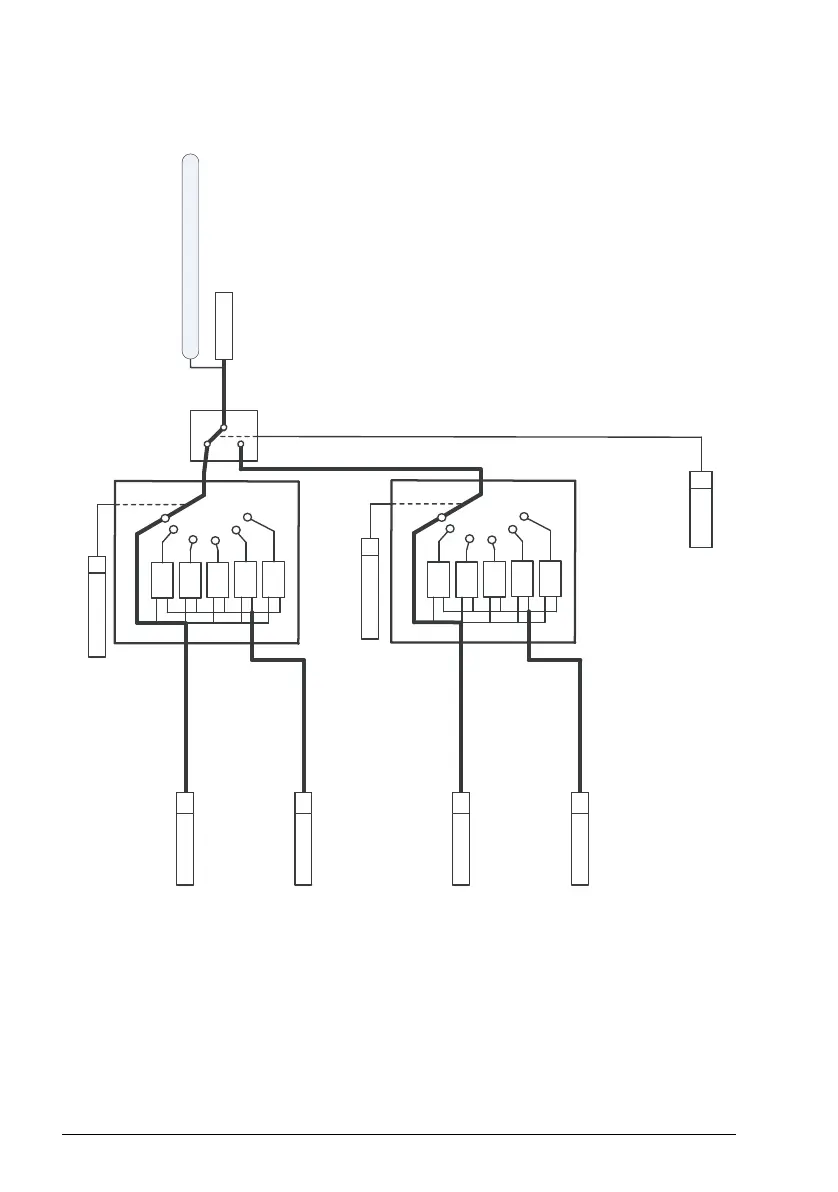

Speed reference source selection I
22.11 Ext1 speed ref1
19.11 Ext1/Ext2 selection
22.13 Ext1 speed function
Selection
>
22.86 Speed reference act 6
Value
22.12 Ext1 speed ref2
Selection
>
22.18 Ext2 speed ref1
22.20 Ext2 speed function
Selection
>
22.19 Ext2 speed ref2
MUL
ADD
SUB
MIN
MAX
Selection
>
Selection
>
Selection
>
Selection
>
MUL
ADD
SUB
MIN
MAX
