Parameters 139

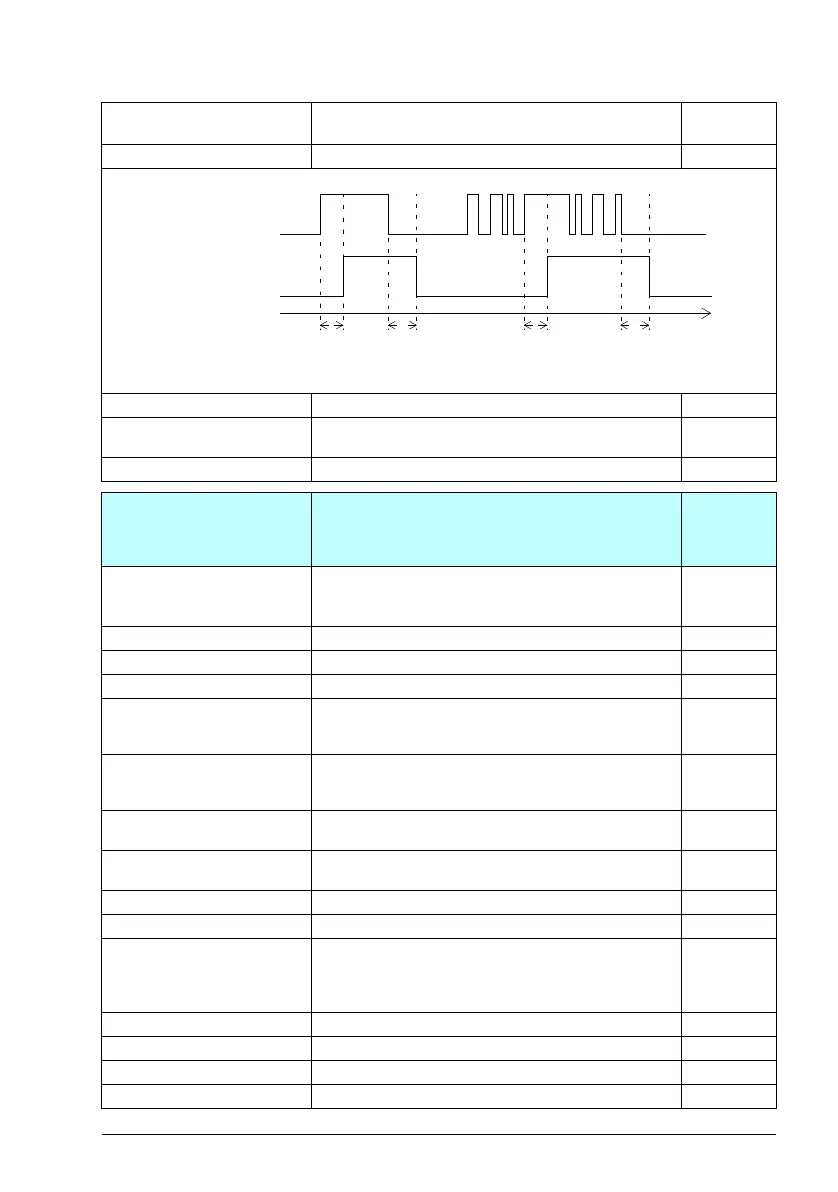

15.17 RO5 ON delay Defines the activation delay for relay output RO5. 0.0 s
t
On
= 15.17 RO3 ON delay
t
Off
= 15.18 RO5 OFF delay
0.0 … 3000.0 s Activation delay for RO5. 1 = 1 s
15.18 RO5 OFF delay Defines the deactivation delay for relay output RO5. See
parameter 15.17 RO3 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for RO5. 1 = 1 s
19
19 Operation mode
Selection of local and external control location sources
and operating modes.
See section Operating modes and motor control modes in
chapter Program features.
19.01 Actual operation mode Displays the operating mode currently used.
See parameters 19.11…19.14.
This parameter is read-only.
-
Zero Zero. 0
Speed Speed control (in vector motor control mode). 1
Torque Torque control (in vector motor control mode). 2
Min The torque selector is comparing the output of the speed
controller (25.01) and torque reference (26.74) and the
smaller of the two is used (in vector motor control mode).
3
Max The torque selector is comparing the output of the speed
controller (25.01) and torque reference (26.74) and the
greater of the two is used (in vector motor control mode).
4
Add The speed controller output is added to the torque
reference (in vector motor control mode).
5
Scalar (Hz) Frequency control in scalar motor control mode (in scalar
motor control mode).
7
Scalar (rpm) Scalar (rpm) 8
Forced magn. Motor is in magnetizing mode. 9
19.11 Ext1/Ext2 selection Selects the source for external control location
EXT1/EXT2 selection.
0 = EXT1
1 = EXT2
EXT1
EXT1 EXT1 (permanently selected). 0
EXT2 EXT2 (permanently selected). 1
FBA A MCW bit 11 Control word bit 11 received through fieldbus interface A. 2
DI1 Digital input DI1 (10.02 DI delayed status, bit 0). 3
No. Name/Value Description Default
FbEq 16
1
0
1
0
t
On
t
Off
t
On
t
Off
Status of selected
source
RO status
Time
