138 Parameters
15.09 RO2 OFF delay Defines the deactivation delay for relay output RO2. See
parameter 15.08 RO2 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for RO2. 1 = 1 s
15.10 RO3 source Selects a drive signal to be connected to relay output
RO3.
Not
energized
See parameter 15.07 RO2 source for the available
selections.

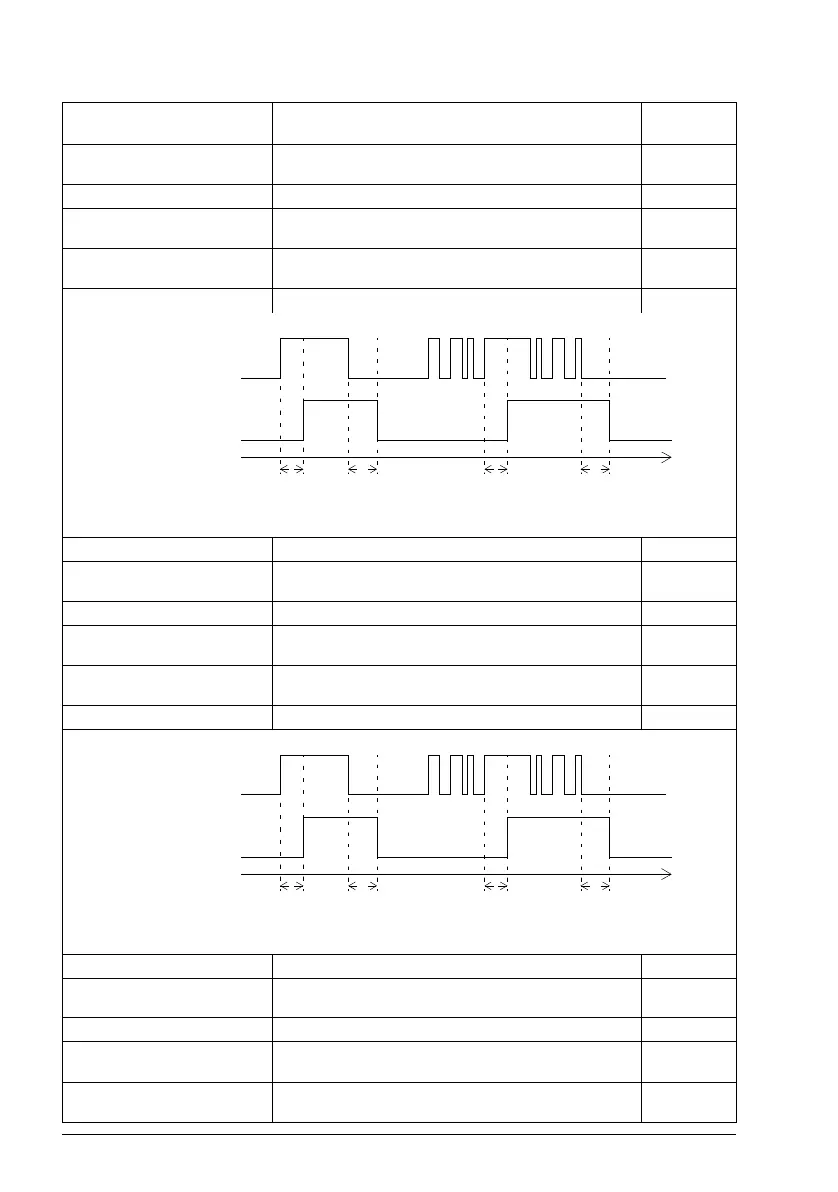

15.11 RO3 ON delay Defines the activation delay for relay output RO3. 0.0 s
t
On
= 15.11 RO3 ON delay
t
Off
= 15.12 RO3 OFF delay
0.0 … 3000.0 s Activation delay for RO5. 1 = 1 s
15.12 RO3 OFF delay Defines the deactivation delay for relay output RO5. See
parameter 15.11 RO3 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for RO3. 1 = 1 s
15.13 RO4 source Selects a drive signal to be connected to relay output
RO4.
Not
energized
See parameter 15.07 RO2 source for the available
selections.
15.14 RO4 ON delay Defines the activation delay for relay output RO4. 0.0 s
t
On
= 15.08 RO4 ON delay
t
Off
= 15.09 RO4 OFF delay
0.0 … 3000.0 s Activation delay for RO4. 1 = 1 s
15.15 RO4 OFF delay Defines the deactivation delay for relay output RO4. See
parameter 15.14 RO4 ON delay.
0.0 s
0.0 … 3000.0 s Deactivation delay for RO4. 1 = 1 s
15.16 RO5 source Selects a drive signal to be connected to relay output
RO5.
Not
energized
See parameter 15.07 RO2 source for the available
selections.
No. Name/Value Description Default
FbEq 16
1
0
1
0
t
On
t
Off
t
On
t
Off
Status of selected
source
RO status
Time
1
0
1
0
t
On
t
Off
t
On
t
Off
Status of selected
source
RO status
Time
