Parameters 137
Fault/Warning Bit 3 OR bit 7 of 06.11 Main status word. 16
Overcurrent Relay is energized when drive is tripped to overcurrent
fault.
17
Overvoltage Relay is energized when drive is tripped to overvoltage
fault.
18
Drive temp Relay is energized when drive is tripped to drive
temperature fault.
19
Undervoltage Relay is energized when drive is tripped to undervoltage
fault.
20
Motor temp Relay is energized when drive is tripped to motor
temperature fault.
21
Brake command Bit 0 of 44.01 Brake control status.22
Ext2 active Bit 11 of 06.16 Drive status word 1.23
Remote control Bit 9 of 06.11 Main status word.24
MCB Relay is energized when external charging has charged
the drive.
25
Timed function 1 Bit 0 of 34.01 Timed functions status.27
Timed function 2 Bit 1 of 34.01 Timed functions status.28
Timed function 3 Bit 2 of 34.01 Timed functions status.29
Supervision 1 Bit 0 of 32.01 Supervision status.33
Supervision 2 Bit 1 of 32.01 Supervision status.34
Supervision 3 Bit 2 of 32.01 Supervision status.35
Start delay 39
RO/DIO control word
bit0
Bit 0 of 10.99 RO/DIO control word.40
RO/DIO control word
bit1
Bit 1 of 10.99 RO/DIO control word.41
RO/DIO control word
bit2
Bit 2 of 10.99 RO/DIO control word.42
Other [bit] Source selection (see Terms and abbreviations). -

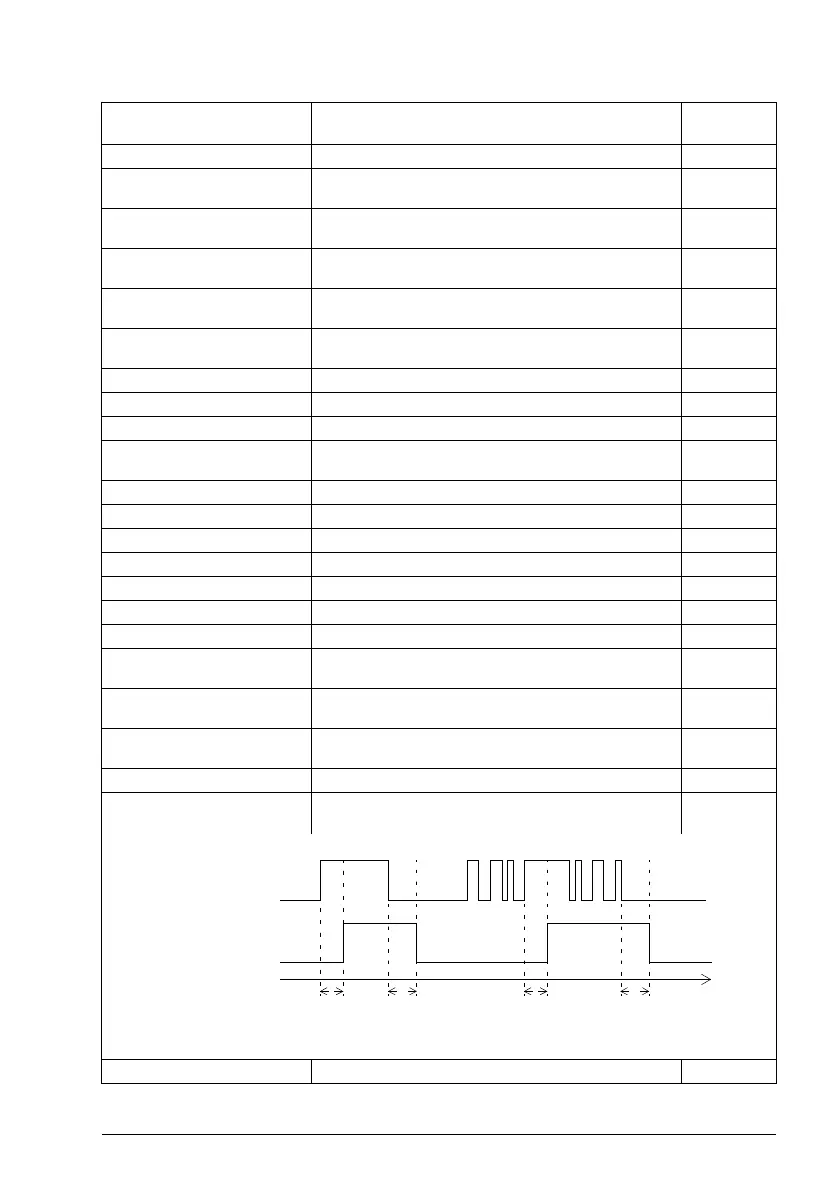

15.08 RO2 ON delay Defines the activation delay for relay output RO2. 0.0 s
t
On
= 15.08 RO2 ON delay
t
Off
= 15.09 RO2 OFF delay
0.0 … 3000.0 s Activation delay for RO2. 1 = 1 s
No. Name/Value Description Default
FbEq 16
1
0
1
0
t
On
t
Off
t
On
t
Off
Status of selected
source
RO status
Time
