258 Parameters

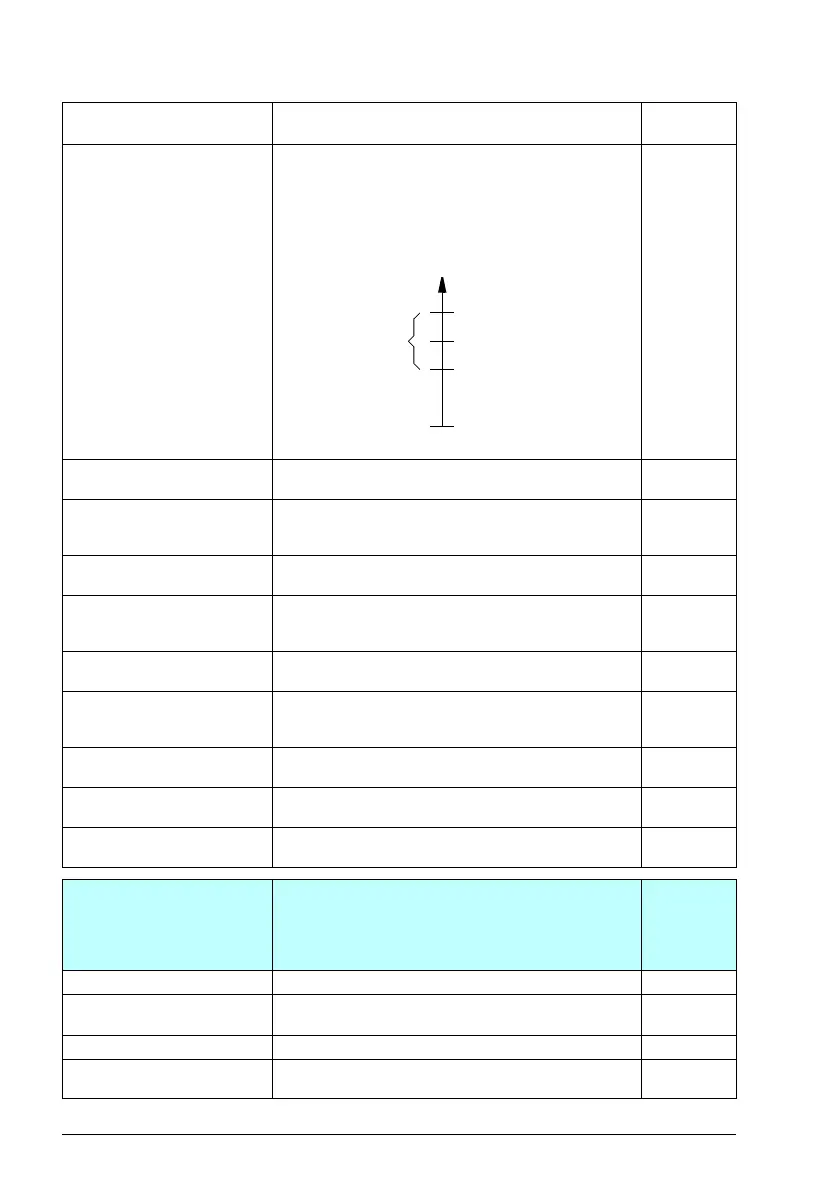

46.23 At torque hysteresis Defines the “at setpoint” limits for torque control of the
drive. When the absolute difference between reference
(26.73 Torque reference act 4) and actual torque (01.10
Motor torque) is smaller than 46.23 At torque hysteresis,
the drive is considered to be “at setpoint”. This is indicated
by bit 8 of 06.11 Main status word
5.0%
0.0…300.0% Limit for “at setpoint” indication in torque control. See par.
46.03
46.31 Above speed limit Defines the trigger level for “above limit” indication in
speed control. When actual speed exceeds the limit, bit 10
of 06.17 Drive status word 2 is set.
0.00 rpm
0.00…30000.00 rpm “Above limit” indication trigger level for speed control. See par.
46.01
46.32 Above frequency limit Defines the trigger level for “above limit” indication in
frequency control. When actual frequency exceeds the
limit, bit 10 of 06.17 Drive status word 2 is set.
0.00 Hz
0.00…1000.00 Hz “Above limit” indication trigger level for frequency control. See par.
46.02
46.33 Above torque limit Defines the trigger level for “above limit” indication in
torque control. When actual torque exceeds the limit, bit
10 of 06.17 Drive status word 2 is set.
0.0%
0.0…1600.0% “Above limit” indication trigger level for torque control. See par.
46.03
46.41 kWh pulse scaling Defines the trigger level for the “kWh pulse” on for 50 ms.
The output of the pulse is bit 9 of 05.22 Diagnostic word 3.
1.000 kWh
0.001…
1000.000 kWh
“kWh pulse” on trigger level. 1 = 1 kWh
47
47 Data storage
Data storage parameters that can be written to and read
from using other parameters’ source and target settings.
Note that there are different storage parameters for
different data types.
See also section Data storage parameters (page 99).
47.01 Data storage 1 real32 Data storage parameter 1. 0.000
-2147483.008…
2147483.008
32-bit data. -
47.02 Data storage 2 real32 Data storage parameter 2. 0.000
-2147483.008…
2147483.008
32-bit data. -
No. Name/Value Description Default
FbEq 16
01.10 (%)
0%
26.73 + 46.23(%)
26.73 (%)
26.73 - 46.23 (%)
Drive at setpoint
(06.11 bit 8 = 1)
