46.13 Filter time motor
torque
Defines a filter time for signal 01.10 Motor torque. 100 ms
2…20000 ms Motor torque signal filter time. 1 = 1 ms
46.14 Filter time power Defines a filter time for signal 01.14 Output power. 100 ms
2…20000 ms Output power signal filter time. 1 = 1 ms
46.21 At speed hysteresis Defines the “at setpoint” limits for speed control of the
drive.
When the difference between reference (22.87 Speed
reference act 7) and the speed (24.02 Used speed
feedback) is smaller than 46.21 At speed hysteresis, the
drive is considered to be “at setpoint”. This is indicated by
bit 8 of 06.11 Main status word.
50.00 rpm
0.00…30000.00 rpm Limit for “at setpoint” indication in speed control. See par.
46.01
46.22 At frequency
hysteresis
Defines the “at setpoint” limits for frequency control of the
drive. When the absolute difference between reference
(28.96 Frequency ref ramp input) and actual frequency
(01.06 Output frequency) is smaller than 46.22 At
frequency hysteresis, the drive is considered to be “at
setpoint”. This is indicated by bit 8 of 06.11 Main status
word.
2.00 Hz
0.00…1000.00 Hz Limit for “at setpoint” indication in frequency control. See par.
46.02

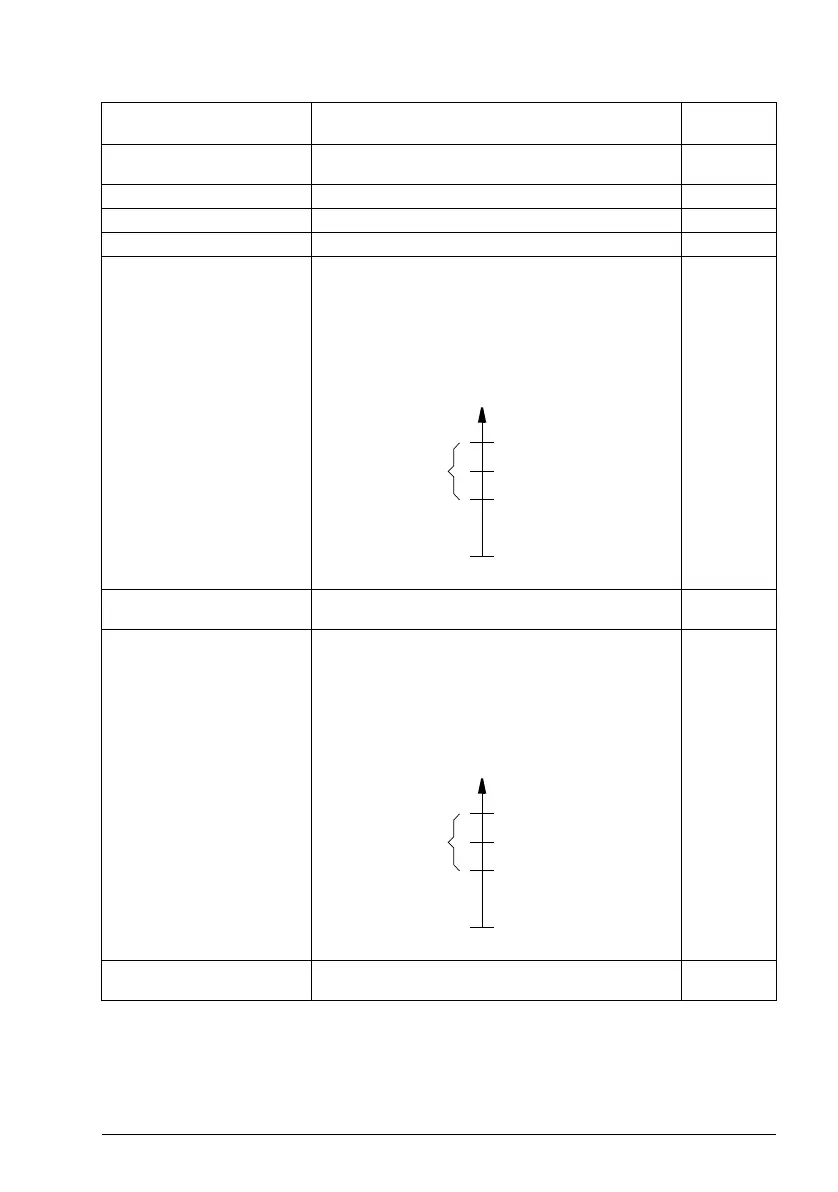

No. Name/Value Description Default
FbEq 16
24.02 (rpm)
0 rpm
22.87 + 46.21 (rpm)
22.87 (rpm)
22.87 - 46.21 (rpm)
Drive at setpoint
(06.11 bit 8 = 1)
01.06 (Hz)
0 Hz
28.96 + 46.22 (Hz)
28.96 (Hz)
28.96 - 46.22 (Hz)
Drive at setpoint
(06.11 bit 8 = 1)
