136 Parameters
13.04 AI1 max scale Defines the real value that corresponds to the maximum
analogue input AI1 value defined by parameter 13.02 AI1
max.
-32768.000 …
32768.000
Real value corresponding to maximum AI1 value. 1000 = 1
13.05 AI1 min scale Defines the real value that corresponds to the minimum
analogue input AI1 value defined by parameter 13.03 AI1
min. See the drawing at parameter 13.04 AI1 max scale.
-32768.000
…32768.000
Real value corresponding to minimum AI1 value. 1000 = 1
13.06 AI2 filt time Defines the filter time constant for analogue input AI2. See
parameter 13.01 AI1 filt time.
0.000 … 30.000 s Filter time constant. 1000 = 1 s
13.07 AI2 max Defines the maximum value for analogue input AI2. The input
type is selected with jumper J2 on the JCU Control Unit.
-22.000 … 22.000
mA or
-11.000 … 11.000 V
AI2 maximum value. 1000 = 1 unit
13.08 AI2 min Defines the minimum value for analogue input AI2. The input
type is selected with jumper J2 on the JCU Control Unit.
-22.000 … 22.000
mA or
-11.000 … 11.000 V
AI2 minimum value. 1000 = 1 unit
No. Name/Value Description FbEq

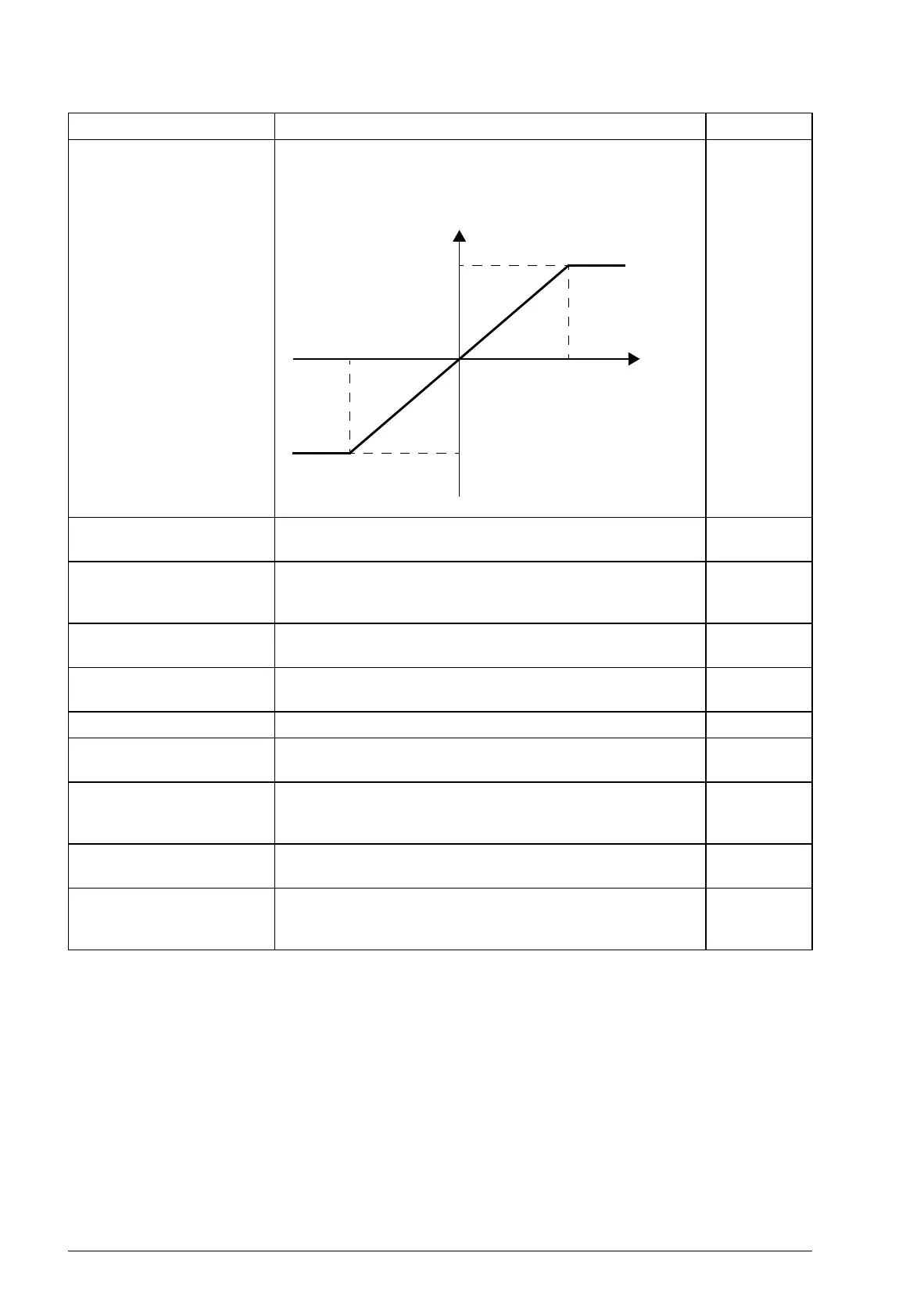

AI (scaled)
AI (mA/V)
13.04
13.02
13.03
13.05
