Parameters 137

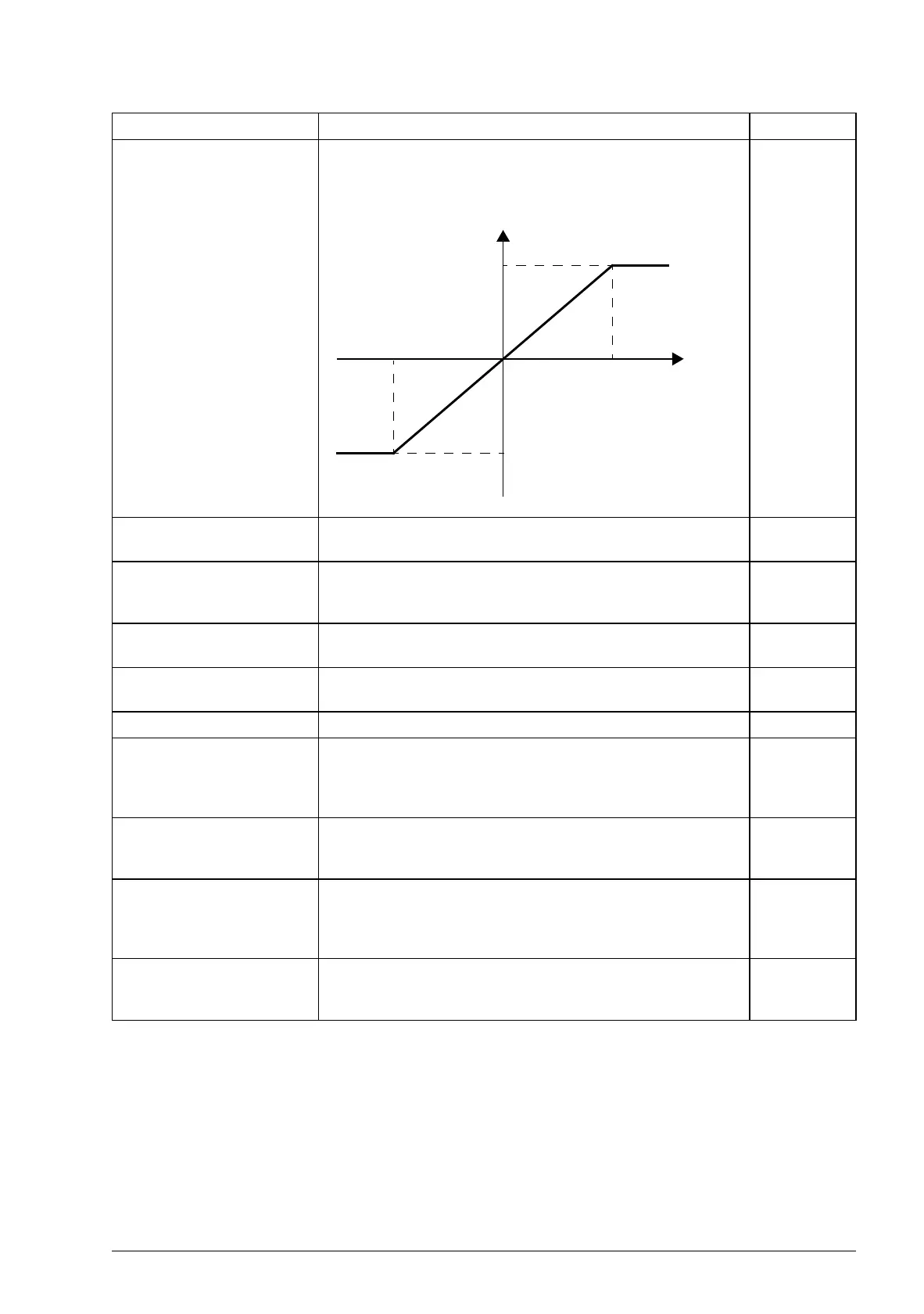

13.09 AI2 max scale Defines the real value that corresponds to the maximum
analogue input AI2 value defined by parameter 13.07 AI2
max.
-32768.000 …
32768.000
Real value corresponding to maximum AI2 value. 1000 = 1
13.10 AI2 min scale Defines the real value that corresponds to the minimum
analogue input AI2 value defined by parameter 13.08 AI2
min. See the drawing at parameter 13.09 AI2 max scale.
-32768.000 …
32768.000
Real value corresponding to minimum AI2 value. 1000 = 1
13.11 AI3 filt time Defines the filter time constant for analogue input AI3. See
parameter 13.01 AI1 filt time.
0.000 … 30.000 s Filter time constant. 1000 = 1 s
13.12 AI3 max Defines the maximum value for analogue input AI3. The input
type depends on the type and/or settings of the I/O extension
module installed. See the user documentation of the
extension module.
-22.000 … 22.000
mA or
-11.000 … 11.000 V
AI3 maximum value. 1000 = 1 unit
13.13 AI3 min Defines the minimum value for analogue input AI3. The input
type depends on the type and/or settings of the I/O extension
module installed. See the user documentation of the
extension module.
-22.000 … 22.000
mA or
-11.000 … 11.000 V
AI3 minimum value. 1000 = 1 unit
No. Name/Value Description FbEq
AI (scaled)
AI (mA/V)
13.09
13.07
13.08
13.10
