140 Parameters

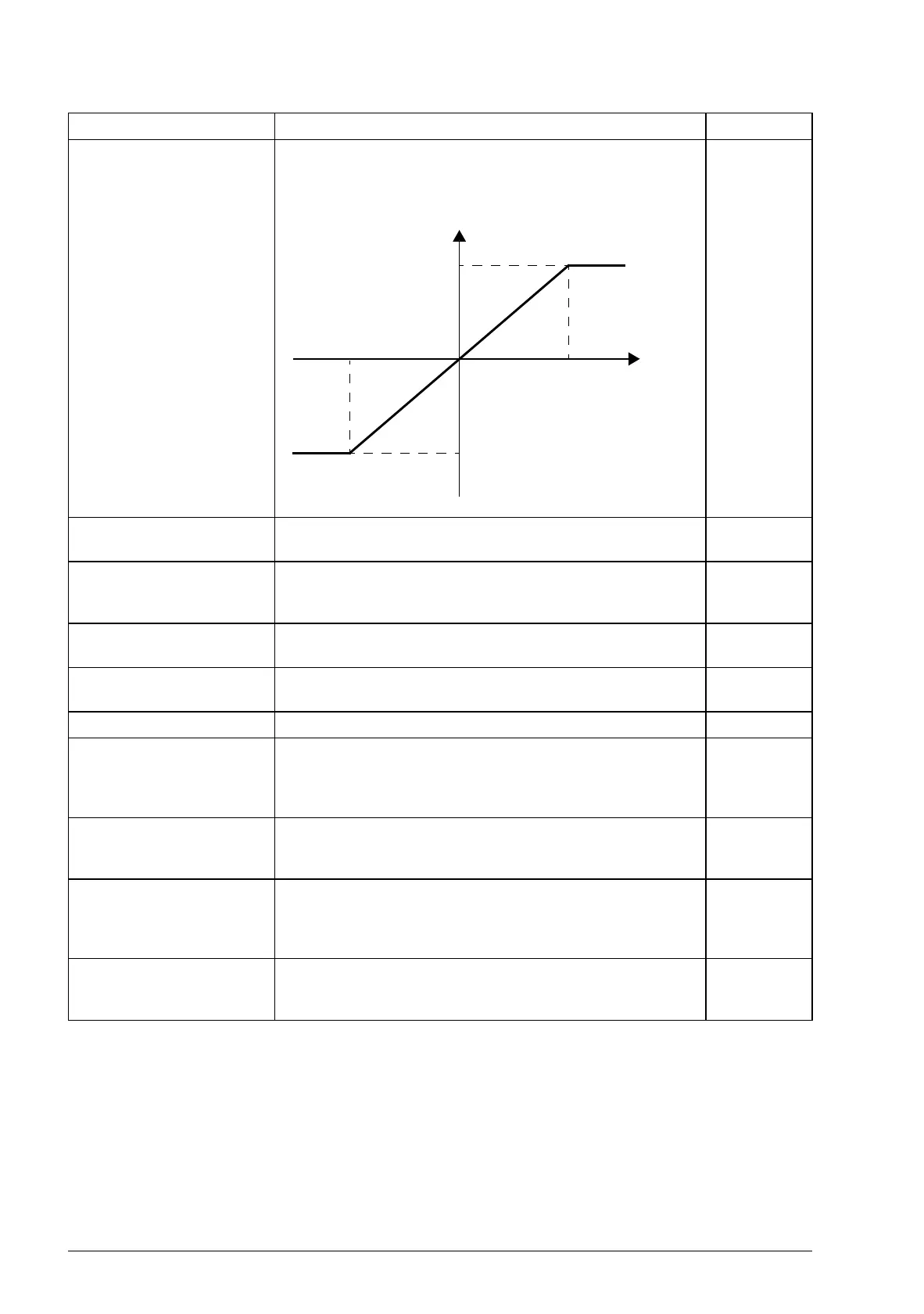

13.24 AI5 max scale Defines the real value that corresponds to the maximum
analogue input AI5 value defined by parameter 13.22 AI5
max.
-32768.000 …
32768.000
Real value corresponding to maximum AI5 value. 1000 = 1
13.25 AI5 min scale Defines the real value that corresponds to the minimum
analogue input AI5 value defined by parameter 13.23 AI5
min. See the drawing at parameter 13.24 AI5 max scale.
-32768.000 …
32768.000
Real value corresponding to minimum AI5 value. 1000 = 1
13.26 AI6 filt time Defines the filter time constant for analogue input AI6. See
parameter 13.01 AI1 filt time.
0.000 … 30.000 s Filter time constant. 1000 = 1 s
13.27 AI6 max Defines the maximum value for analogue input AI6. The input
type depends on the type and/or settings of the I/O extension
module installed. See the user documentation of the
extension module.
-22.000 … 22.000
mA or
-11.000 … 11.000 V
AI6 maximum value. 1000 = 1 unit
13.28 AI6 min Defines the minimum value for analogue input AI6. The input
type depends on the type and/or settings of the I/O extension
module installed. See the user documentation of the
extension module.
-22.000 … 22.000
mA or
-11.000 … 11.000 V
AI6 minimum value. 1000 = 1 unit
No. Name/Value Description FbEq
AI (scaled)
AI (mA/V)
13.24
13.22
13.23
13.25
