Parameters 153
14.57 Freq in max Defines the maximum input frequency for DIO1 when
parameter 14.02 DIO1 conf is set to Freq input.

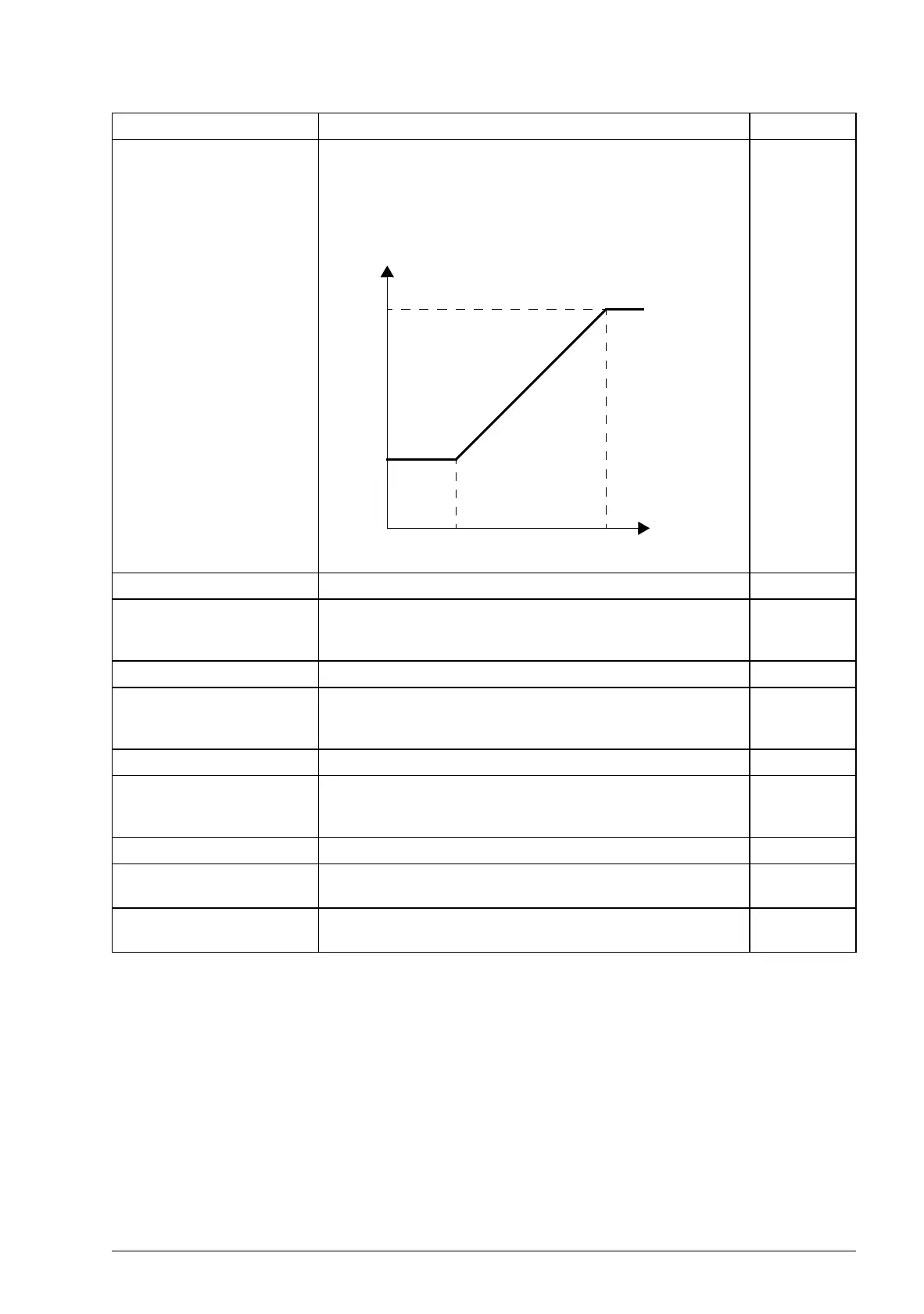

The frequency signal connected to DIO1 is scaled into an
internal signal (02.20 Freq in) by parameters 14.57…14.60 as
follows:
3 … 32768 Hz DIO1 maximum frequency. 1 = 1 Hz
14.58 Freq in min Defines the minimum input frequency for DIO1 when
parameter 14.02 DIO1 conf is set to Freq input. See
parameter 14.57 Freq in max.
3 … 32768 Hz DIO1 minimum frequency. 1 = 1 Hz
14.59 Freq in max scal Defines the value that corresponds to the maximum input
frequency defined by parameter 14.57 Freq in max. See
parameter 14.57 Freq in max.
-32768 … 32768 Scaled value corresponding to DIO1 maximum frequency. 1 = 1
14.60 Freq in min scal Defines the value that corresponds to the minimum input
frequency defined by parameter 14.58 Freq in min. See
parameter 14.57 Freq in max.
-32768 … 32768 Scaled value corresponding to DIO1 minimum frequency. 1 = 1
14.61 Freq out src Selects a drive signal to be connected to frequency output
DIO2 (when 14.06 DIO2 conf is set to Freq output).
Pointer Value pointer setting (see Terms and abbreviations on page
102).
-
No. Name/Value Description FbEq
f
DIO1
(Hz)
14.57
14.59
14.60
14.58
02.20 Freq in
