154 Parameters
14.62 Freq out max src When 14.06 DIO2 conf is set to Freq output, defines the real
value of the signal (selected by parameter 14.61 Freq out src)
that corresponds to the maximum DIO2 frequency output
value (defined by parameter 14.64 Freq out max sca).
0 … 32768 Real signal value corresponding to maximum DIO2 output
frequency.
1 = 1
14.63 Freq out min src When 14.06 DIO2 conf is set to Freq output, defines the real
value of the signal (selected by parameter 14.61 Freq out src)
that corresponds to the minimum DIO2 frequency output
value (defined by parameter 14.65 Freq out min sca).
0 … 32768 Real signal value corresponding to minimum DIO2 output
frequency.
1 = 1
14.64 Freq out max sca When 14.06 DIO2 conf is set to Freq output, defines the
maximum DIO2 output frequency.
3 … 32768 Hz Maximum DIO2 output frequency. 1 = 1 Hz
14.65 Freq out min sca When 14.06 DIO2 conf is set to Freq output, defines the
minimum DIO2 output frequency.
3 … 32768 Hz Minimum DIO2 output frequency. 1 = 1 Hz
14.66 RO6 src Selects a drive signal to be connected to relay output RO6.
Const Bit pointer setting (see Terms and abbreviations on page
102).
-
Pointer
14.69 RO7 src Selects a drive signal to be connected to relay output RO7.
Const Bit pointer setting (see Terms and abbreviations on page
102).
-
Pointer

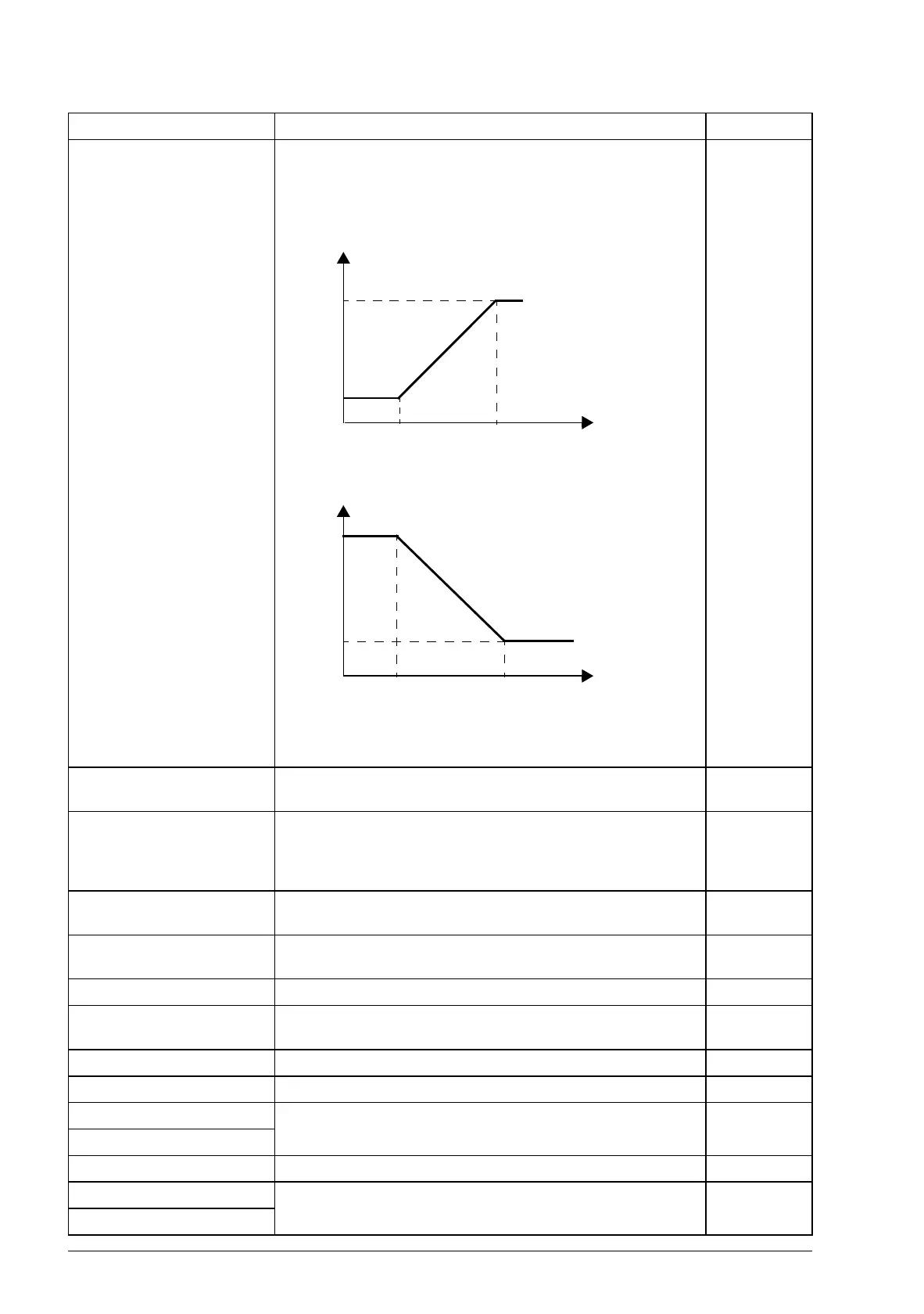

No. Name/Value Description FbEq
f
DIO2
(Hz)
14.64
14.65
14.62 14.63
14.6214.63
14.64
14.65
Signal (real)
selected by
par. 14.61
f
DIO2
(Hz)
Signal (real)
selected by
par. 14.61
