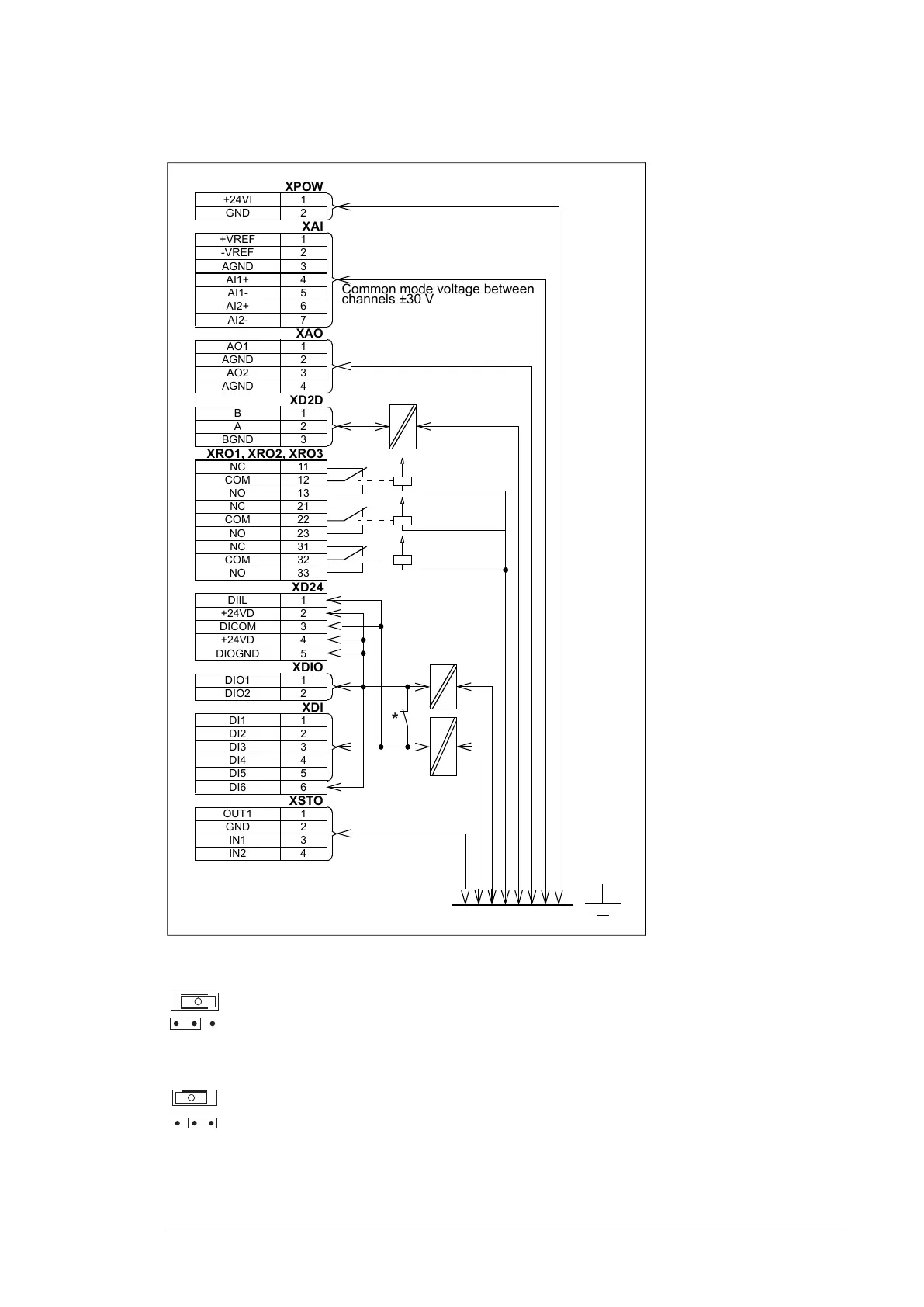

￭ ZCU-1x ground isolation diagram
XPOW
+24VI 1
GND 2
XAI
+VREF 1
-VREF 2
AGND 3
AI1+ 4
AI1- 5
AI2+ 6
AI2- 7
XAO
AO1 1
AGND 2
AO2 3
AGND 4
XD2D
B1
A2
BGND 3
XRO1, XRO2, XRO3
NC 11
COM 12
NO 13
NC 21
COM 22
NO 23
NC 31
COM 32
NO 33
XD24
DIIL 1
+24VD 2
DICOM 3
+24VD 4
DIOGND 5
XDIO
DIO1 1
DIO2 2
XDI
DI1 1
DI2 2
DI3 3
DI4 4
DI5 5
DI6 6
XSTO
OUT1 1
GND 2
IN1 3
IN2 4
*
Common mode voltage between
channels ±30 V
* Ground selector (J6) settings
(ZCU-12)
(ZCU-14)
All digital inputs share a common ground (DICOM connected to DIOGND). This is the default setting.
(ZCU-12)
(ZCU-14)
Ground of digital inputs DI1…DI5 and DIIL (DICOM) is isolated from DIO signal ground (DIOGND).
Isolation voltage 50 V.
Control units of the drive 151

ABB ACS880-07 Series Specifications

General

Series	ACS880-07
Category	DC Drives
Type	Industrial drive
Control Method	Vector control
Cooling Method	Air-cooled or liquid-cooled
Voltage Range	380V to 690V
Enclosure Type	IP21, IP54
Communication Protocols	Ethernet, Profibus, CANopen, Modbus
Built-in Options	Brake chopper, EMC filter
Protection Features	Overvoltage, Undervoltage, Overcurrent
Ambient Temperature Range	-10 to +40 °C
Relative Humidity	5 to 95 % (non-condensing)
