4 Repair
4.5.2. Replacement of Brake Release Button
1673HAC030005-001 Revision: -
© Copyright 2006 ABB. All rights reserved.
4.5.2. Replacement of Brake Release Button
General
This section describes replacement of brake release button on the IRB 360.
DANGER!
Turn off all electrical power, hydraulic and pneumatic pressure supplies to the robot!
Also read the safety sections:
• Safety risks related to pneumatic/hydraulic systems on page 18
• Risks associated with live electric parts on page 20
• Safety risks during installation and service work on robot on page 15
Location

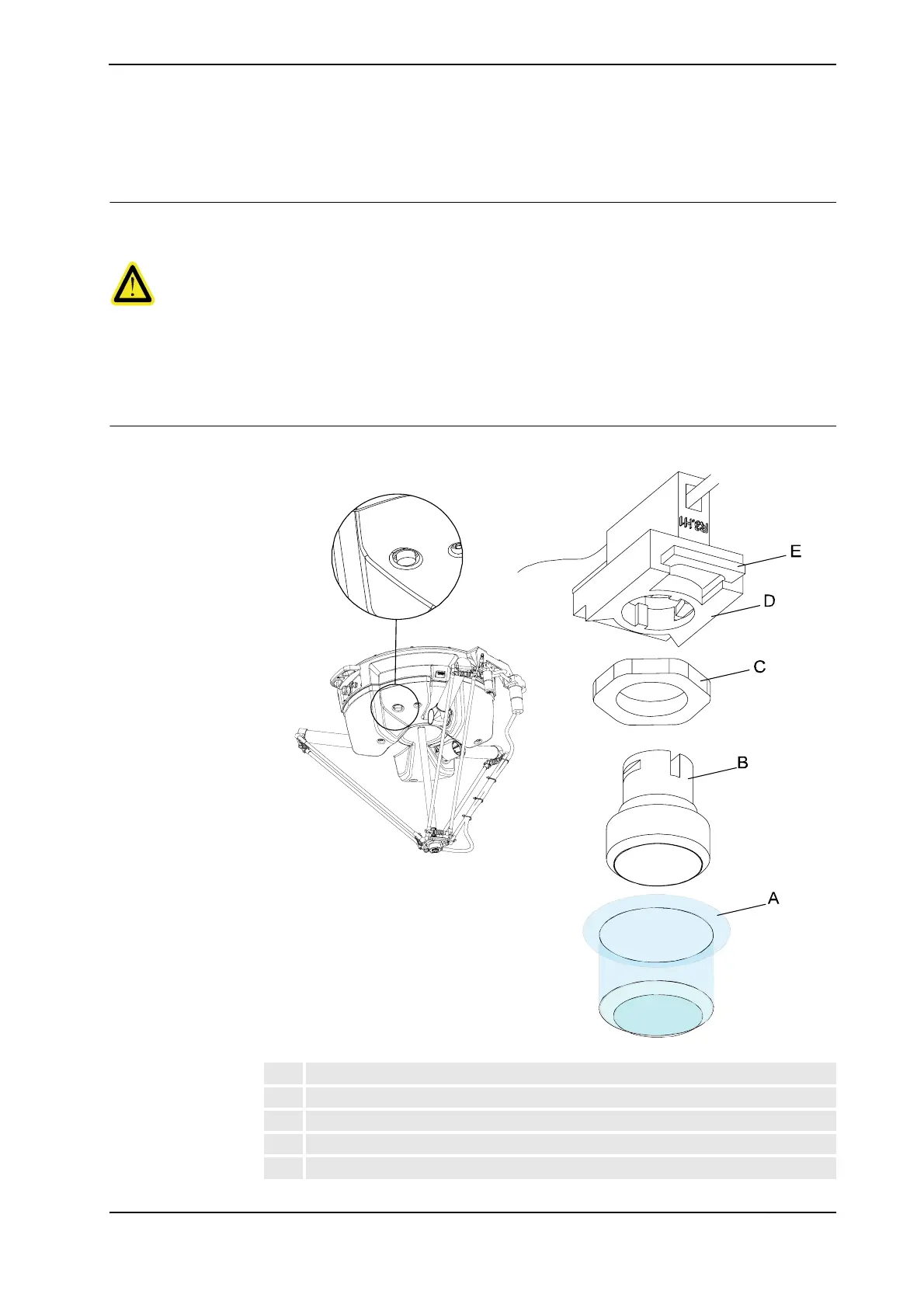

xx0700000650
A Cover
B Brake Release Button
C Plastic nut
D Contact
E Locking device
Continues on next page
