4 Repair
4.3.3. Fitting cable package attachments (Cleanroom)
3HAC026876-001 Revision: F218
© Copyright 2007-2010 ABB. All rights reserved.

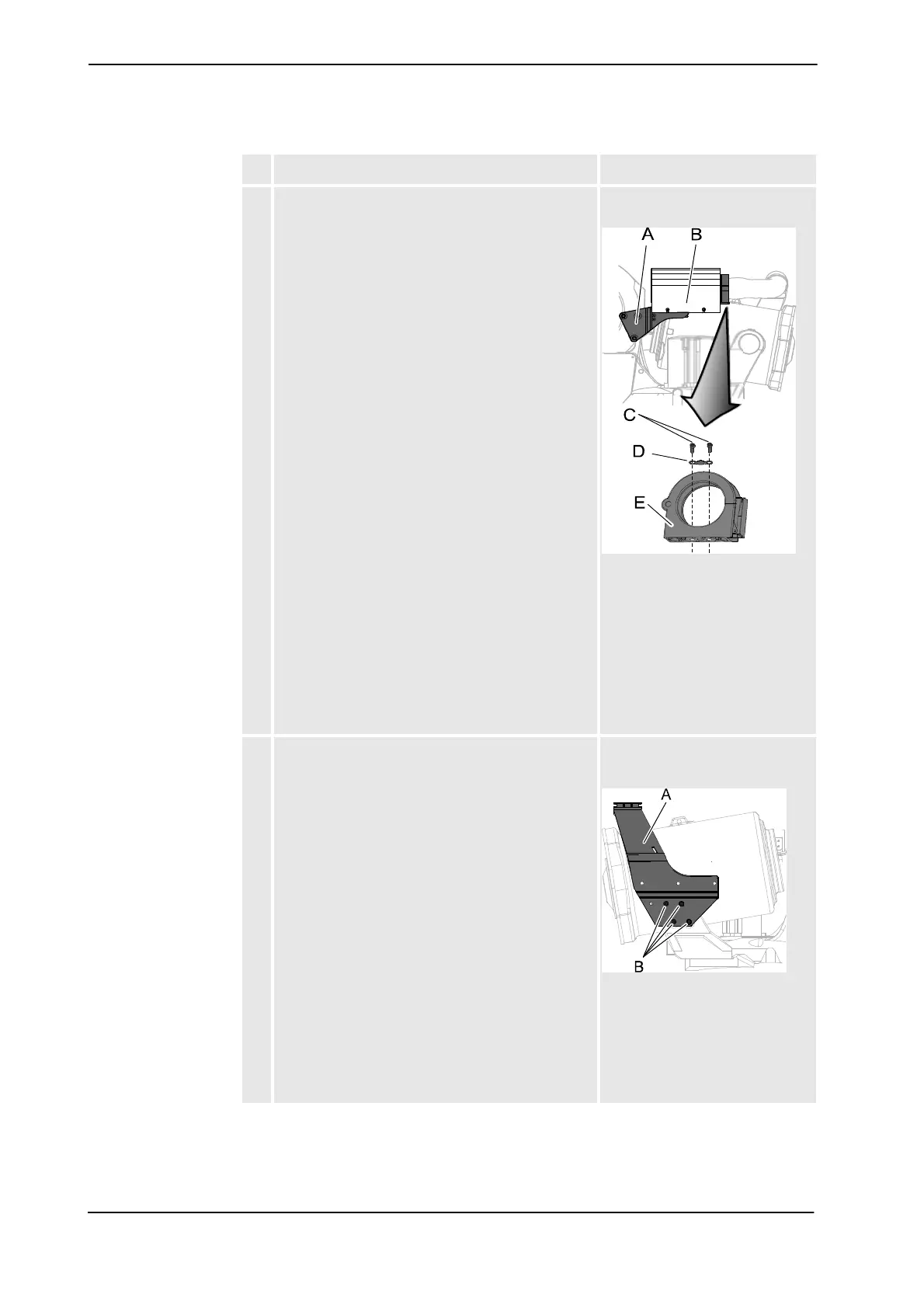

3. Fit the gripping clamp to the shelf with its attachment
screws.
Lock screws with locking liquid.
Locking liquid is specified in
Required equipment on page 216.
xx0800000008
Parts:
• A: Shelf
•B: Cover
• C: Attachment screws
M8x16 quality 8.8-A2F (2
pcs)
• D: Washer 2 holes
• E: Gripping clamp
4. Fit the side bracket, balancing cylinder with its
attachment screws.
Lock screws with locking liquid.
The screws are supplied with the kit.
Locking liquid is specified in
Required equipment on page 216.
xx0800000010
Parts:
• A: Side bracket balancing
cylinder
• B: Attachment screws
M10x16 quality 8.8-A3F (4
pcs)
Action Note
Continued
Continues on next page
