7 Reference information
7.8. Dismounting and mounting tool 3HAC028920-001
3HAC026876-001 Revision: F418
© Copyright 2007-2010 ABB. All rights reserved.
xx0900000065

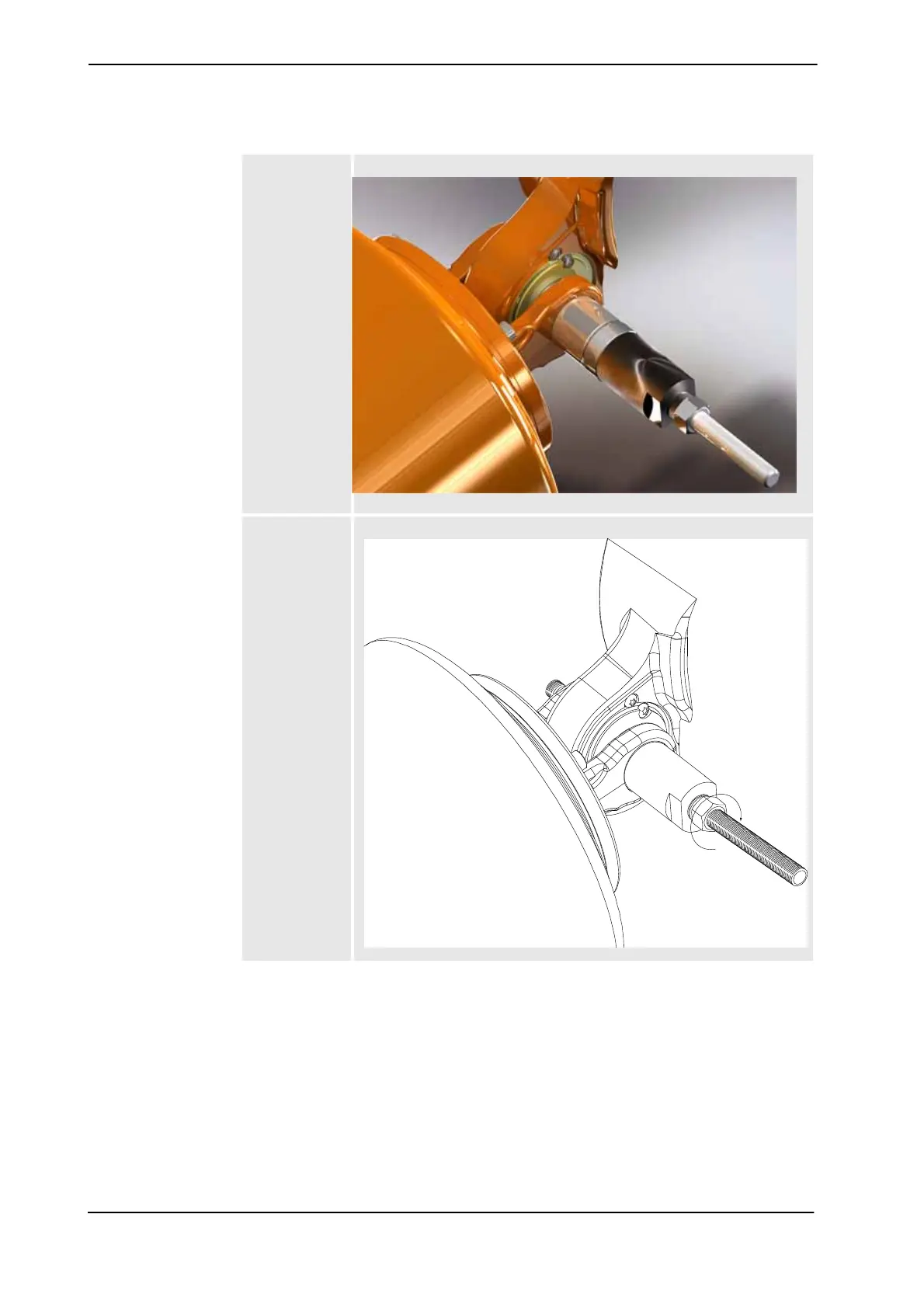

1) Assemble the
threaded bar,
M16 (4).
2) Assemble the
Slide hammer /
Distance (C) on
to the threaded
bar, M16.
3) Assemble the
nut M16 (8).
xx0900000064
Continued
Continues on next page
