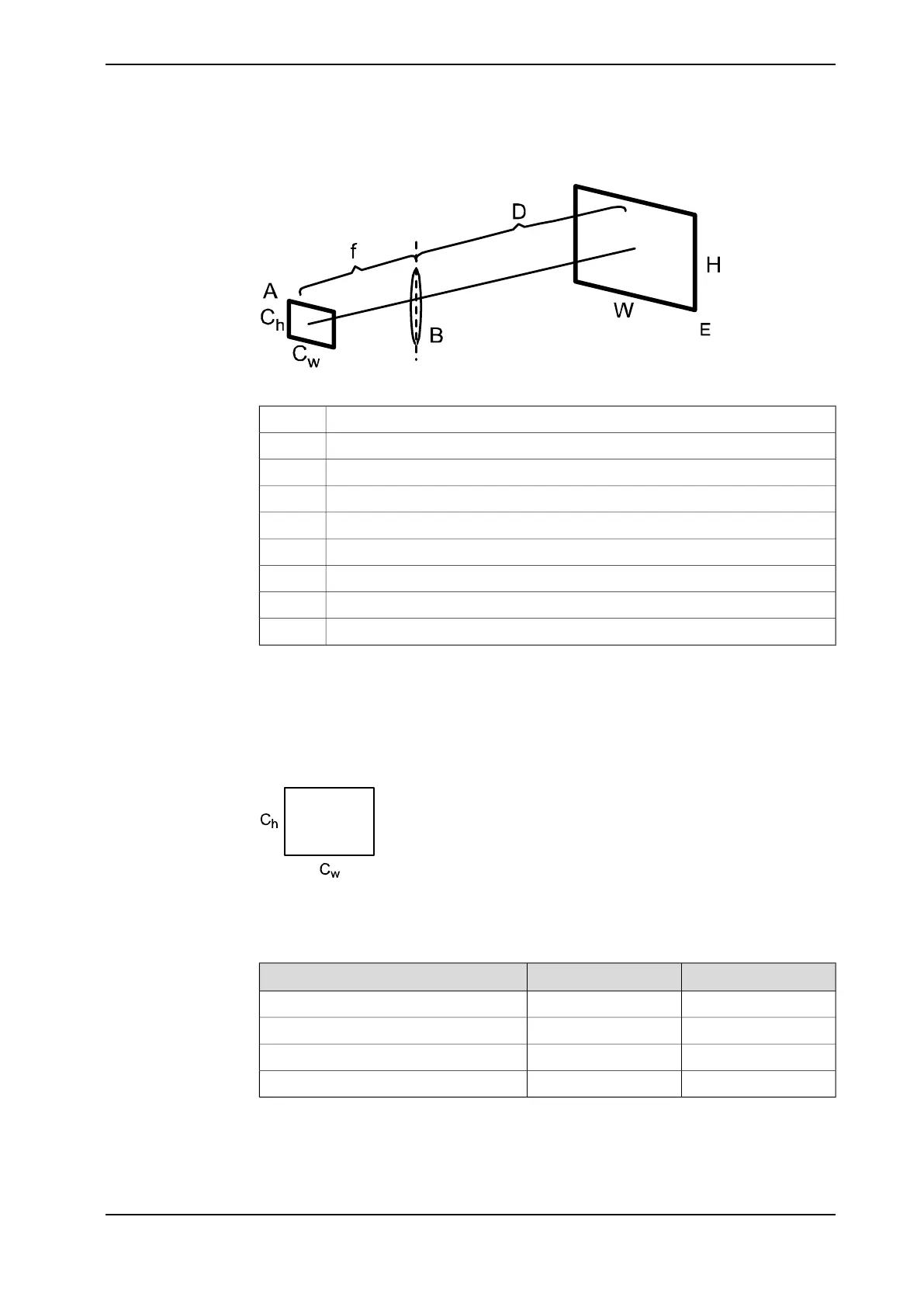

The graphic below shows the geometry of the optical setup.
xx0900000550
Sensor chipA
LensB
Chip height (mm)C
Chip width (mm)C
Distance from lens to scene (mm)D
SceneE
Focal length of camera (mm)f
Scene height (mm)H
Scene width (mm)W
To select a suitable lens, measure the distance between the camera and the items
(D), and the size of the image area (W*H).
To calculate the appropriate focal length of the lens:
• If the height of the image area is most important: f = (D/W)*Cw
• If the length of the image area is most important: f = (D/H)*Ch
xx0900000565
The table below lists the width and height of some common sensor chip sizes,
expressed in millimeters.
C
w
(mm)C
h
(mm)Sensor chip size (inch)
3.22.41/4"
4.83.61/3"
6.44.81/2"
8.86.62/3"
A shorter focal length gives a wider field of view, that is the returned value is the
maximum focal length to obtain the specified W and H.
Continues on next page
Application manual - PickMaster® Twin - PowerPac 23
3HAC064218-001 Revision: B
© Copyright 2021 ABB. All rights reserved.
2 Installation
2.2.4 Camera requirements
Continued
