4.5 Ghost Picking
Overview
Ghost picking flow is used by the application engineer to run the dry cycle function
before the production. The user sees the robot picking up empty objects. This
feature differs from the production in that its incoming material is virtual and is
provided by the flow generated by the previous record.
Creating a ghost picking flow
Use this procedure to create a ghost picking flow:
1 Open the solution need to do the ghost picking.

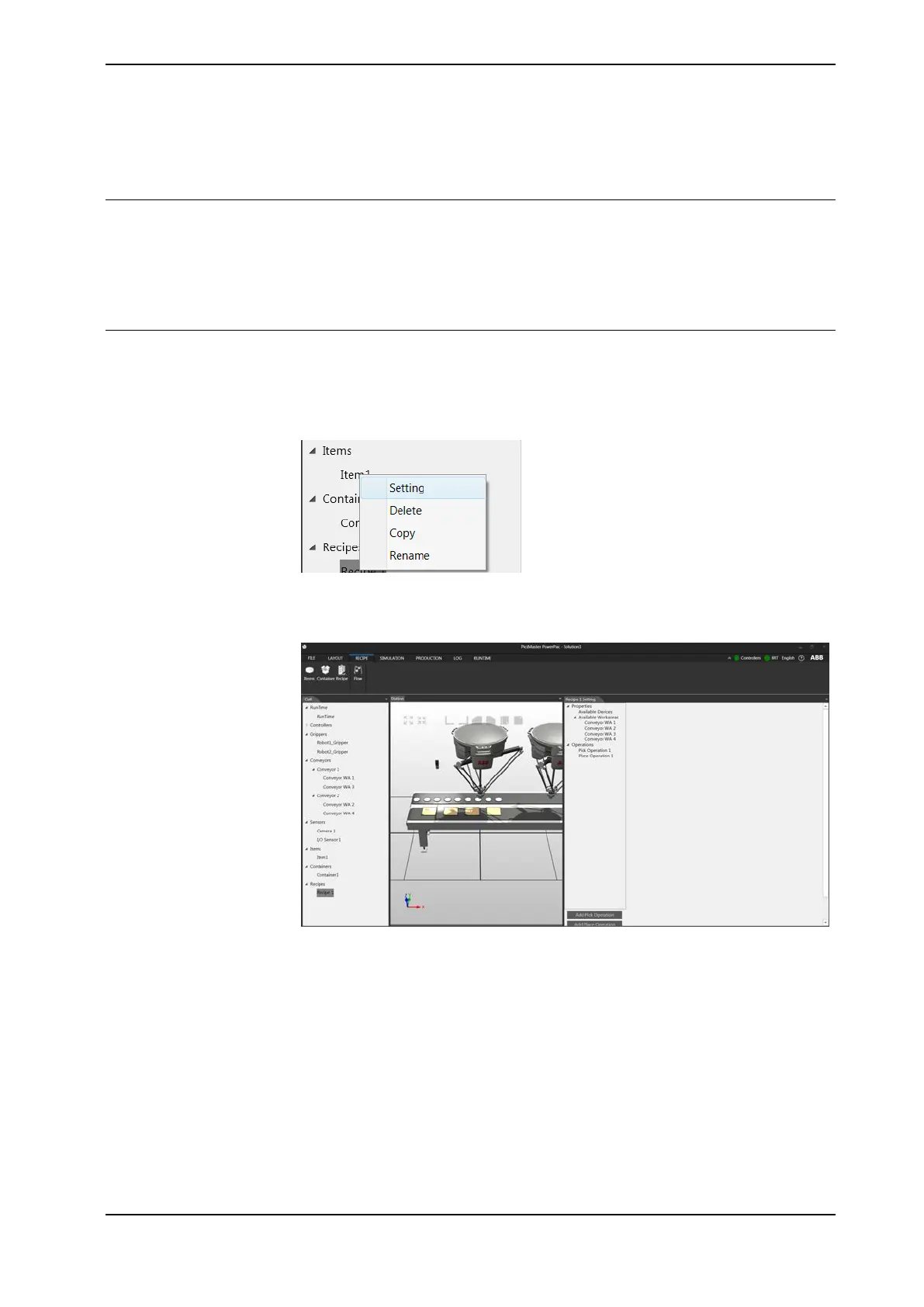

2 Right click Recipe in the tree view Cell and select Setting.
xx1800001727
The Recipe setting window is opened.
xx1900000676
3 Click the Conveyor WA in the Available worarea which need to be recorded
to open the work area setting window.
Continues on next page
Application manual - PickMaster® Twin - PowerPac 297
3HAC064218-001 Revision: B
© Copyright 2021 ABB. All rights reserved.
4 Working with PickMaster PowerPac
4.5 Ghost Picking
