ABB PickMaster Twin - PowerPac User Manual

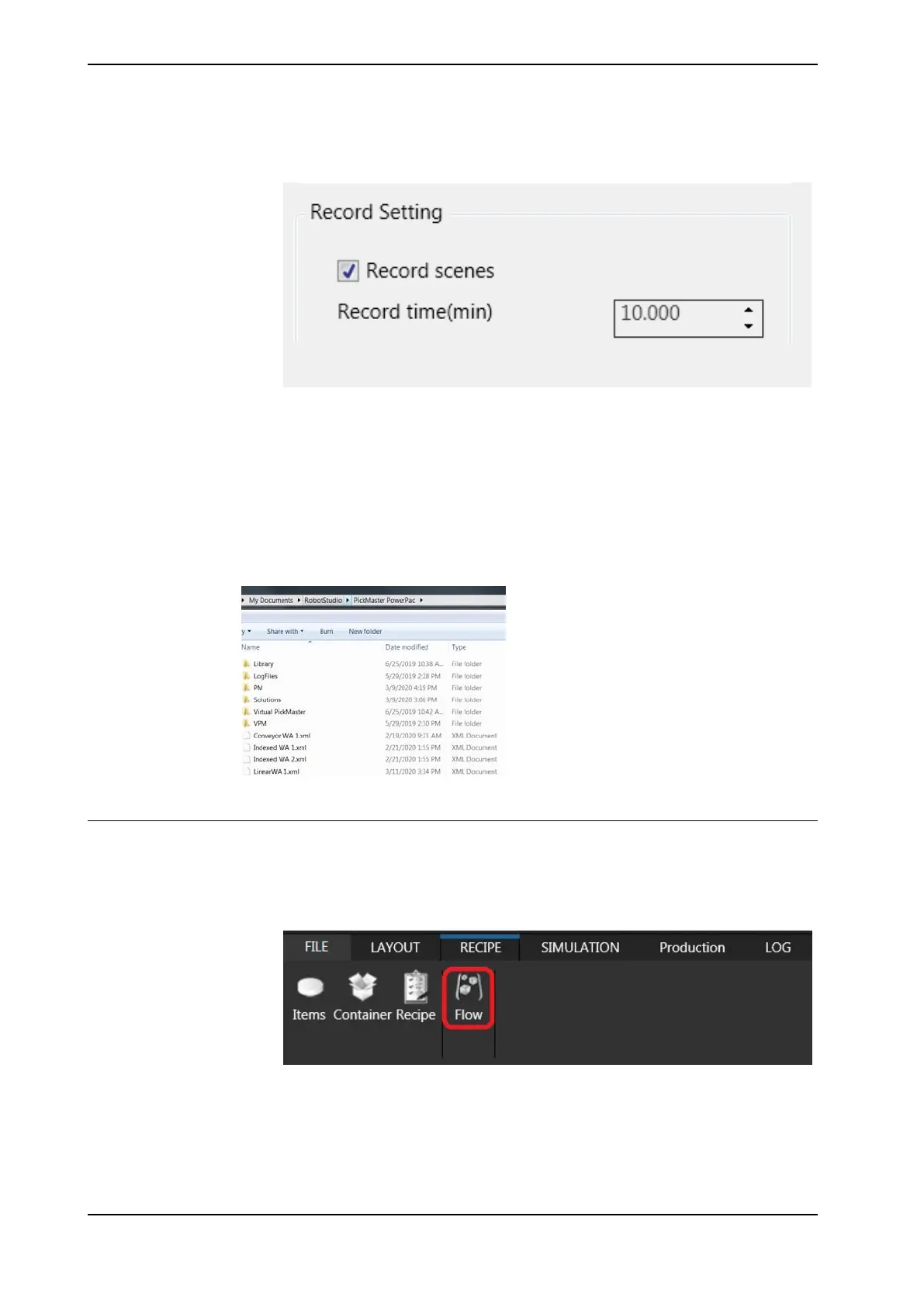

4 Select Record Scenes checkbox in the Record Setting.
xx1900000593
5 Set the record time according to your requirements.
6 Click OK to apply the configuration.
7 Click OK to close the Recipe dialog.
8 Run the production to start the recording.
The created .xml file is stored in the Documents\RobotStudio\PickMaster
PowerPac folder.
xx1900000548
Adding a ghost picking flow to a solution
Use this procedure to add a ghost picking flow:
1 On the PickMaster PowerPac ribbon-tab, click Recipe.
2 On the ribbon-tab, click Flow.
xx1800001721
Continues on next page
298 Application manual - PickMaster® Twin - PowerPac
3HAC064218-001 Revision: B
© Copyright 2021 ABB. All rights reserved.
4 Working with PickMaster PowerPac
4.5 Ghost Picking
Continued
