ABB SCK - Equipment Layout Plan (Cooling Module)

156 Operating instruction SCK Gas Sampling System OI/SCK-EN Rev. E

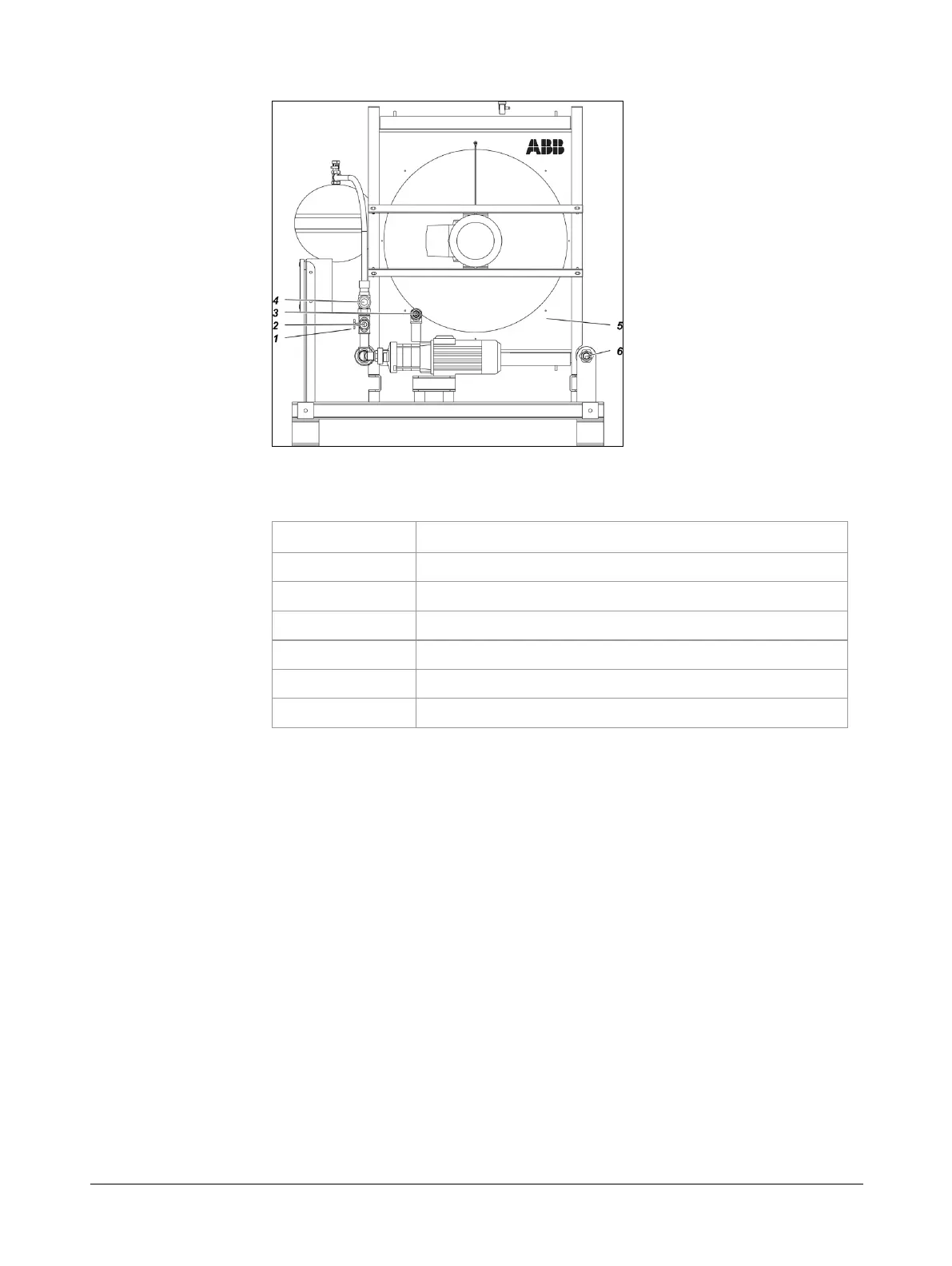

Diagram of location of maintenance-relevant equipment on cooling module:
The following table lists the above-mentioned equipment:
No. Designation
1
Shut-off valve cooling water -J63
2
Cooling water inlet
3
Cooling water feed
4
Safety relief valve outlet
5
Heat exchanger -J60
6
Cooling water return
Illustration
Equipment
