-EN Rev. E Operating instruction SCK Gas Sampling System 197
How to check oil delivery rate on the compressed-air oiler -J74 (note: two
people should perform this job):
Step
Procedure
1

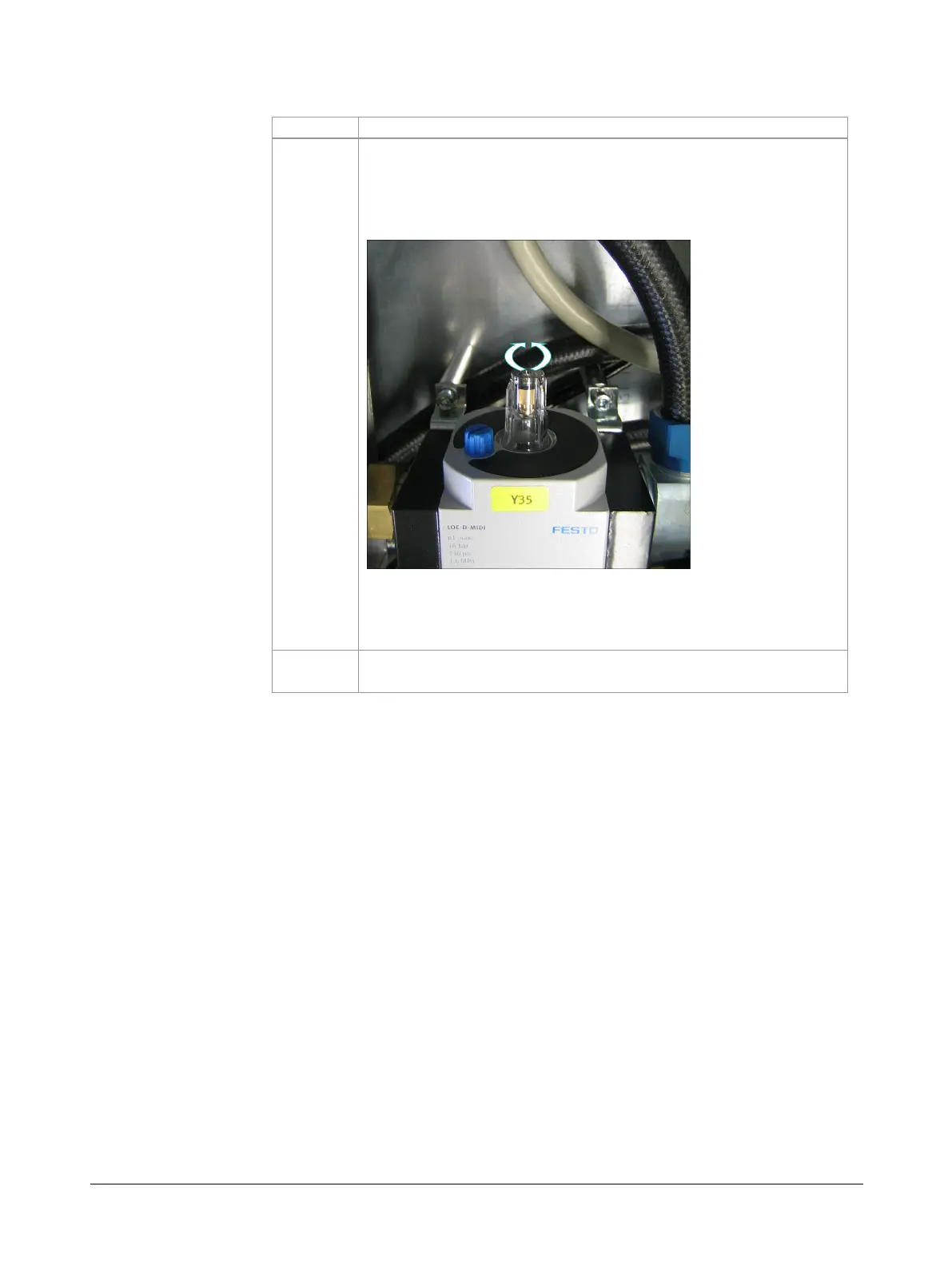

Turn the setting screw in the inspection glass to modify the
quantity of oil.
Meaning of the directions of rotation:
counter-clockwise: more oil
clockwise: less oil
Note: The compressed-air oiler -J74 must deliver approx. 2
drops of oil per inse
rtion/retraction cycle. If this is not ensured,
the compressed-air motor may get damaged or this may lead
to excessive soiling of the muffler.
2
Move probe in/out to check oil quantity, modify again if neces-
sary.
Instructions:
checking oil delivery
rate
