ABB SCK - Page 201

OI/SCK
-EN Rev. E Operating instruction SCK Gas Sampling System 201
Step Procedure
2
Press EMERGENCY STOP switch and allow gas sampling probe
to cool down.
WARNING! Risk of burning in the event of contact with the hot
probe. Do not touch the probe until it has cooled down to
below 50 °C.
3

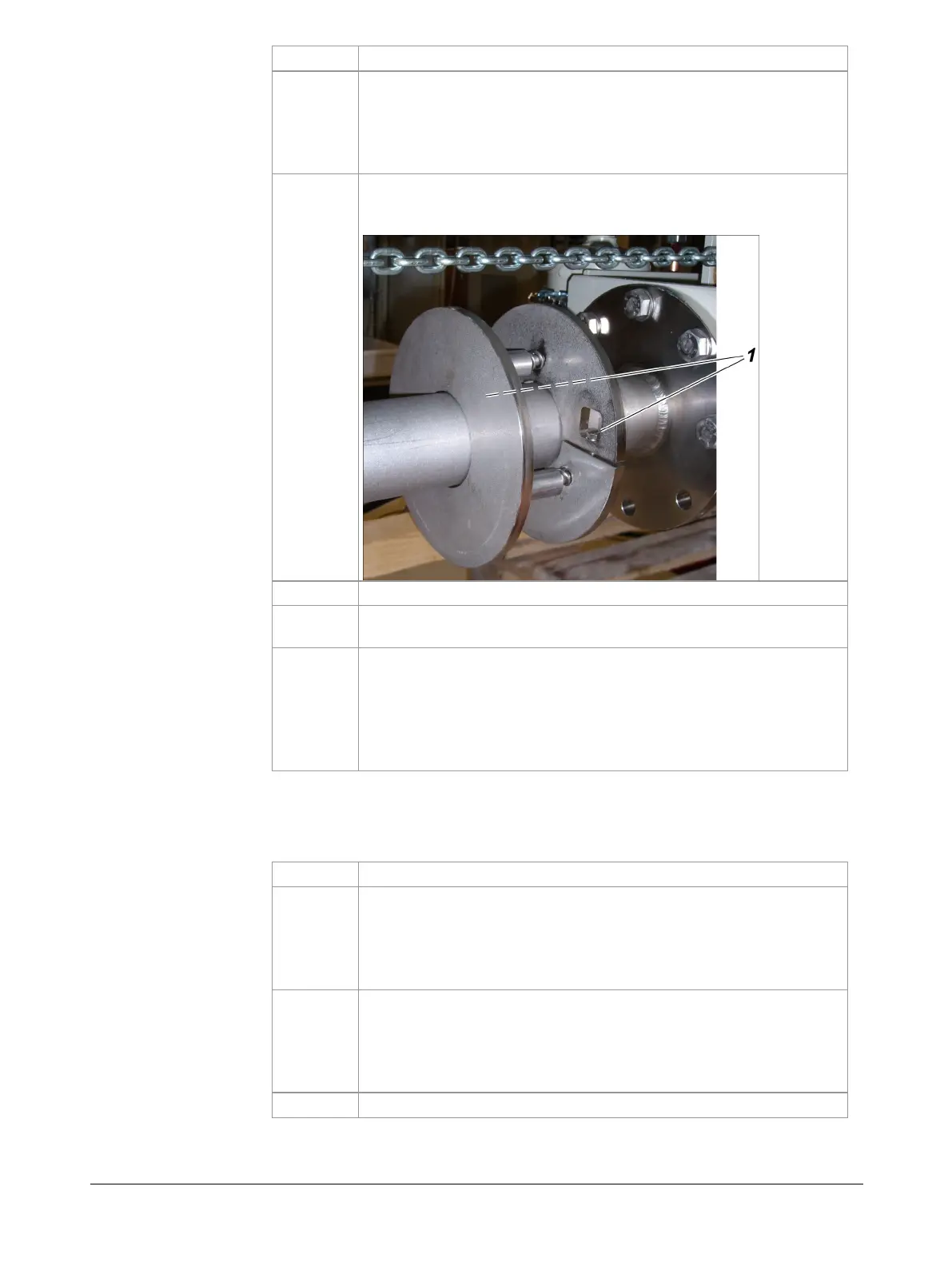

Unscrew clamp screws
(1)
on the pipe sealing device until it is
easy to move. If necessary, clean the outside of the probe pipe
first.
4
Move pipe sealing device by the required amount.
5
Tighten clamp screws. Make sure that one of the springs is in
six 'o' clock position.
6
Turn service switch back to OFF position and insert probe
again using the controller.
WARNING! Probe moves into the kiln. Do not stand in the area
of travel of the probe or probe carriage until the probe is
completely inserted into the kiln and the warning lamps go
out.
Proceed as follows to change the vertical alignment of the gas sampling
probe:
Step
Procedure
1
Turn service switch to ON position.
WARNING! Gas sampling probe moves out of the kiln. Do not
stand in the area of travel of the gas sampling probe or probe
carriage until the probe is completely retracted and the warn-
ing lamps go out.
2
Press EMERGENCY STOP switch and allow gas sampling probe
to cool down.
WARNING! Risk of burning in the event of contact with the hot
probe. Do not touch the probe until it has cooled down to
below 50 °C.
3
Unscrew counter nuts
(1)
on probe carriage.
Instructions: change
vertical position
