202 Operating instruction SCK Gas Sampling System OI/SCK-EN Rev. E
Step Procedure
4

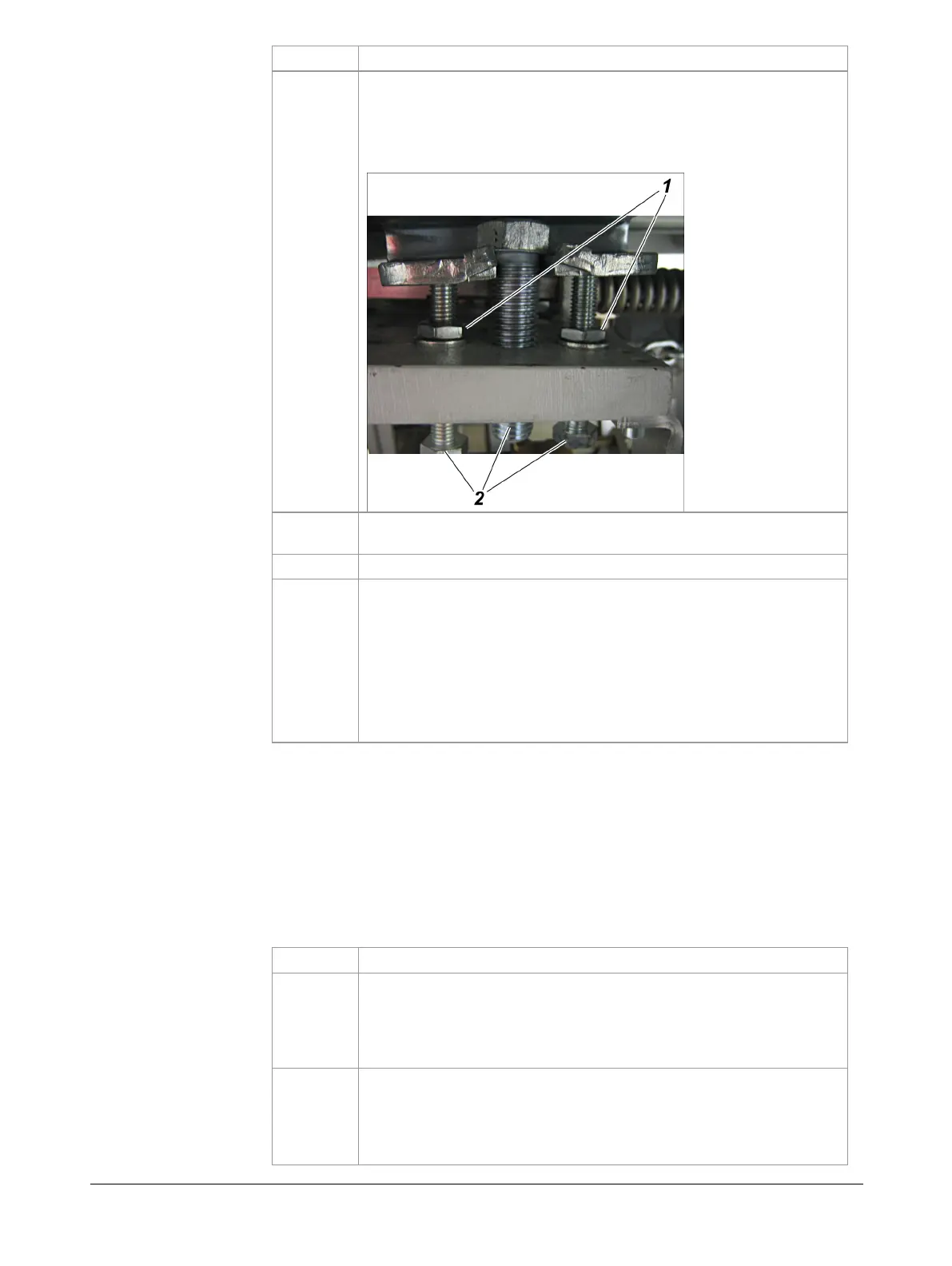

Adjust adjustment screws (2) until the desired position is
achieved. Ensure even changes on both sides of the probe
carriage.
Note: To make work easier, have another person lift up the
probe tip slightly.
5
Perform steps
1
to
2
on the other side of the probe carriage so
as to ensure equal distance to the rails.
6
Tighten counter nuts (1) .
7
Unlock EMERGENCY STOP switch, turn service switch back to
OFF position and insert probe again using the controller. Check
the position of the entire sampling pipe in relation to the
mounting flange, adjust if necessary.
WARNING! Probe moves into the kiln. Do not stand in the area
of travel of the probe or probe carriage until the probe is
completely inserted into the kiln and the warning lamps go
out.
If you have changed the position of the probe as described, you must then
check and, if necessary, adjust the end position sensor. Follow the instruc-
tions in Probe retractor: Checking and, if necessary, adjusting the position
indicator (probe end position) on page 204.
Proceed as follows to change the horizontal alignment of the gas sampling
probe:
Step
Procedure
1
Turn service switch to ON position.
WARNING! Gas sampling probe moves out of the kiln. Do not
stand in the area of travel of the gas sampling probe or probe
carriage until the probe is completely retracted and the warn-
ing lamps go out.
2
Press EMERGENCY STOP switch and allow gas sampling probe
to cool down.
WARNING! Risk of burning in the event of contact with the hot
probe. Do not touch the probe until it has cooled down to
below 50 °C.
After changing
vertical position
Instructions:
changing horizontal
position
