OI/SCK
-EN Rev. E Operating instruction SCK Gas Sampling System 203
Step Procedure
3

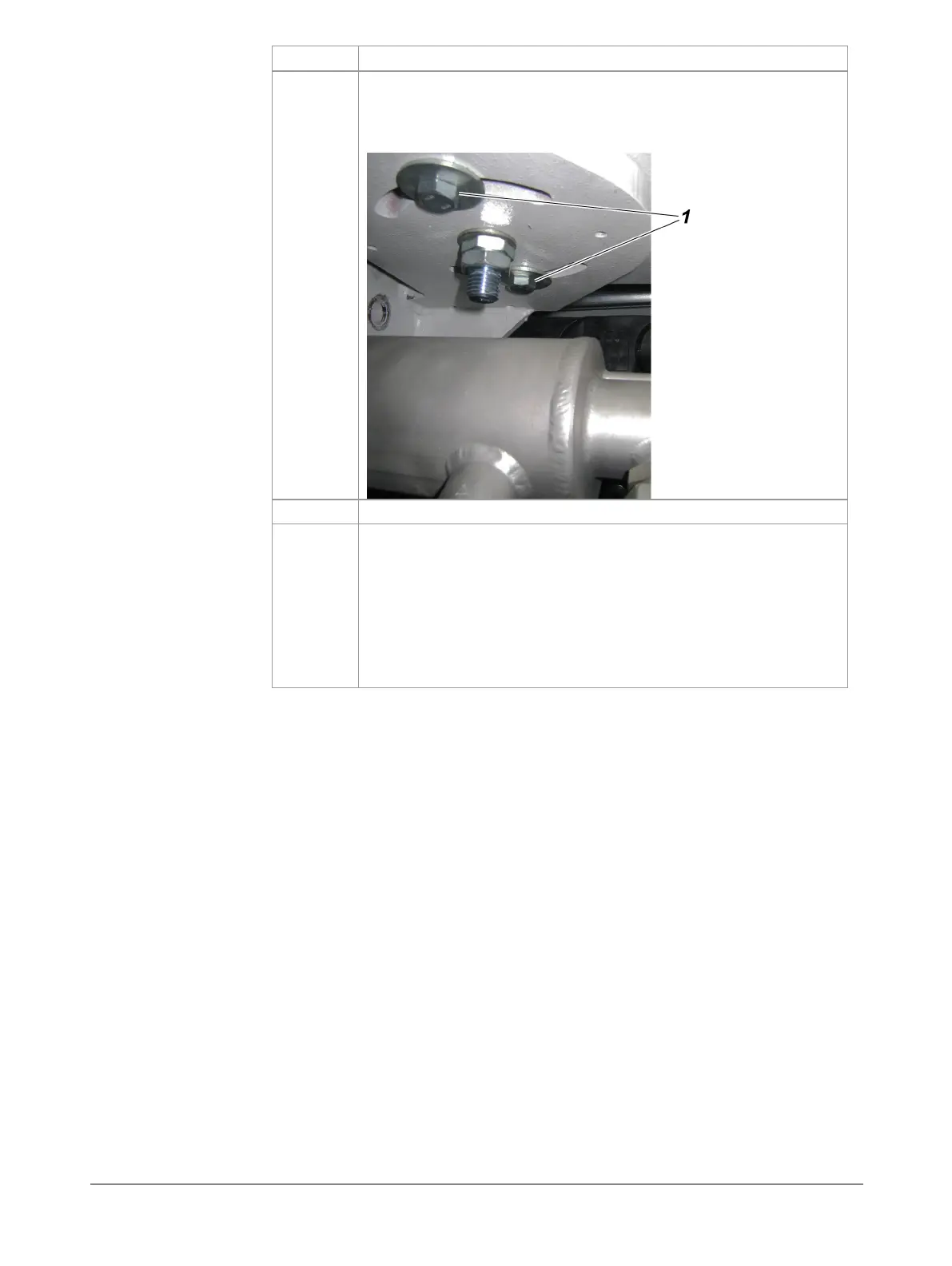

Unscrew adjustment screws (1) , turn probe until the desired
position is achieved.
Note: To make work easier, have another person lift up the
probe tip slightly.
4
Tighten adjustment screws.
5
Unlock EMERGENCY STOP switch, turn service switch back to
OFF position and insert probe again using the controller. Check
the position of the entire sampling pipe in relation to the
mounting flange, adjust if necessary.
WARNING! Probe moves into the kiln. Do not stand in the area
of travel of the probe or probe carriage until the probe is
completely inserted into the kiln and the warning lamps go
out.
If you have changed the position of the probe as described, you must then
check and, if necessary, adjust the end position sensor. Follow the instruc-
tions in Probe retractor: Checking and, if necessary, adjusting the position
indicator (probe end position) on page 204.
After changing
horizontal position
