Observe the following instructions with regard to transporting the modules:
Module
Weight
Transport conditions
Retractor in-
cluding probe
max. 500 kg
 The retractor is delivered with two transport supports (see illus-
tration in Probe retractor on page 24). They are removed during
assembly.
 During storage, support the tip of the assembled gas sampling
probe.
 Only store after draining all water.

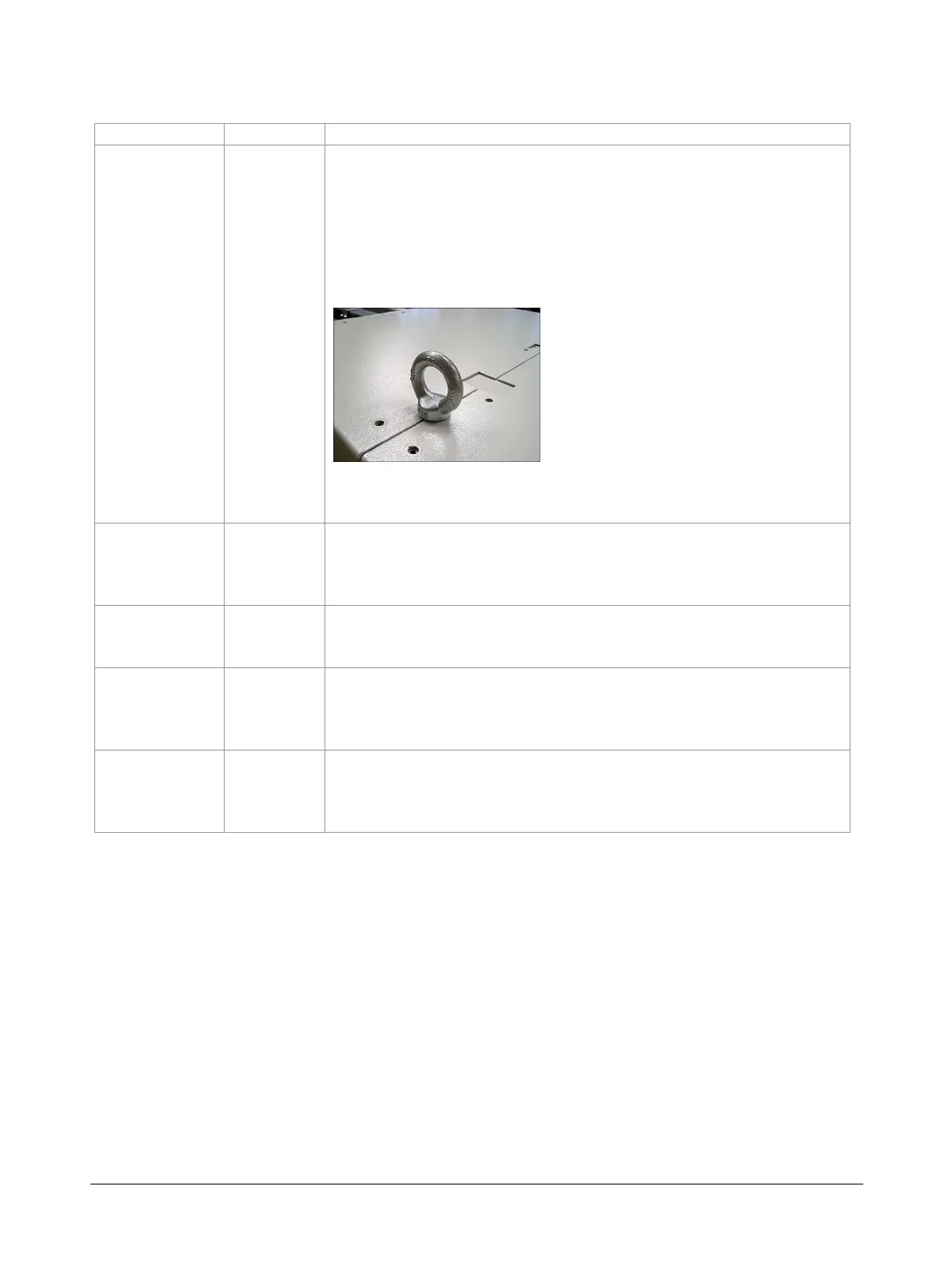

 Lifting gear may only be attached at the designated attachment
points (transport lugs).
 Transport recommendation: Crane
Note: The unpacked retractor must not be transported using a fork-
lift truck.
Cooling module
250 kg

Only store after draining all water.
 Lifting gear may only be attached at the designated attachment
points (transport lugs).

Transport recommendation: For-lift truck or crane
Control cabinet
75 kg
 Lay the control cabinet on its back for transport.
 Use a suitable transport pallet for transport.
 Transport recommendation: For-lift truck or hand lift
Transformer
(optional)
140 kg
 Use a suitable transport pallet for transport (transport recom-
mendation: fork-lift truck or hand lift).
 The casing is also fitted with transport lugs and can be lifted
using a crane.
Compressed-
air tank
(optional)
90 kg

May only be transported on its side.
 Ensure adequate protection of the attachments.
 Only store after draining all water.

Transport recommendation: For-lift truck or hand lift
